Phasor Parameter/Channel Selection

Phasor Parameter/Channel Selection

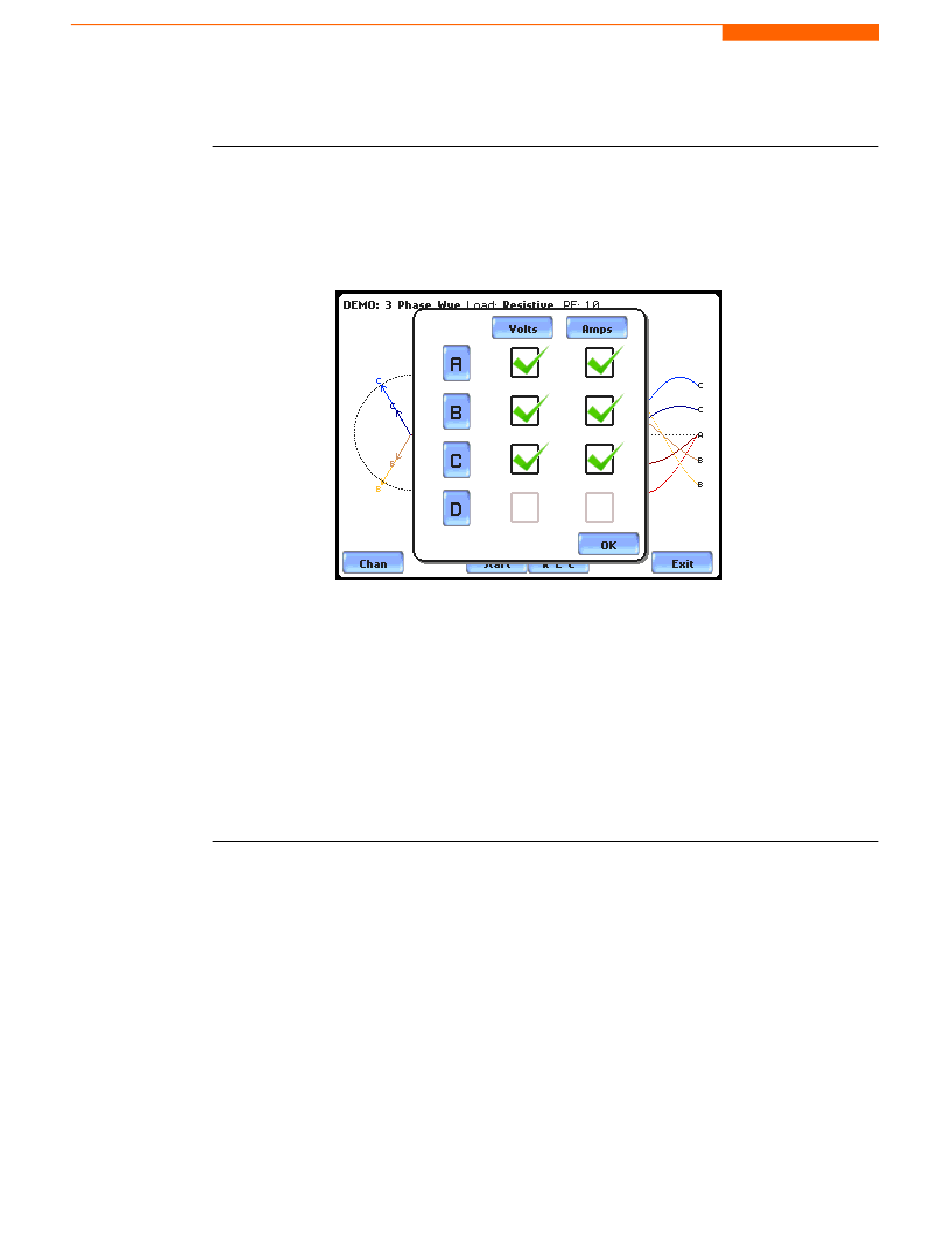

The Parameter/Channel selection screen is displayed by pressing Chan on the phasor
Parameter/
Channel display
Demo screen. Depending on the phases being monitored, up to four channels may be
displayed at any one time for either Volts or Amps, or a single channel for both Volts
and Amps.
Press to enable/disable the parameter/channel for display in the animated phasor
rotation. Any of the following will turn channels on/off:
• Press the desired Volts/Amps channel to turn it on/off.
• Press Volts or Amps button to turn on/off all channels of that parameter.
• Press A, B, C, D to turn on/off both the Volts and Amps for that channel.
Press OK to accept channel selection. The phasor Demo rotations will display the
parameters/channels enabled.
