Panel Setup Options

Press Options to select the Preset parameters and/or Panel Size to display.
Setup options
Presets provide a set of default parameters that will be displayed in the annunciator
panel. The screen matrix size can also be customized (Small, Medium or Large)
according to user application.

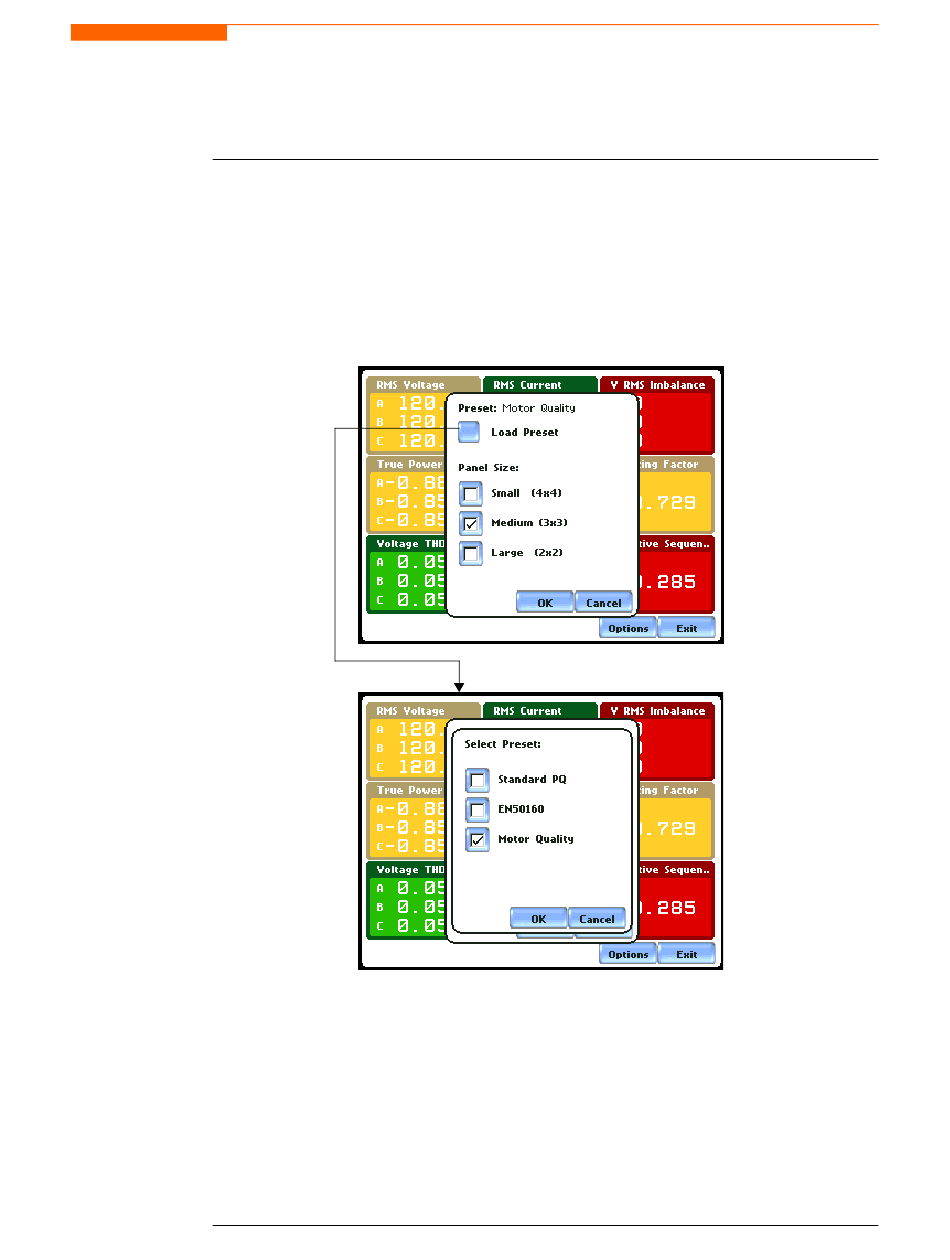

The sample screens below show preset parameters for Motor Quality setup.
The following are the three different presets available:
Standard PQ uses the standard power quality parameters based on IEEE 1159 PQ
standard. This includes basic power parameters such as volts, amps, watts, event
counters, THD, and flicker.
EN50160 displays parameters as specified by the EN50160 standard.
Motor Quality displays parameters that affect the operation of motors.
