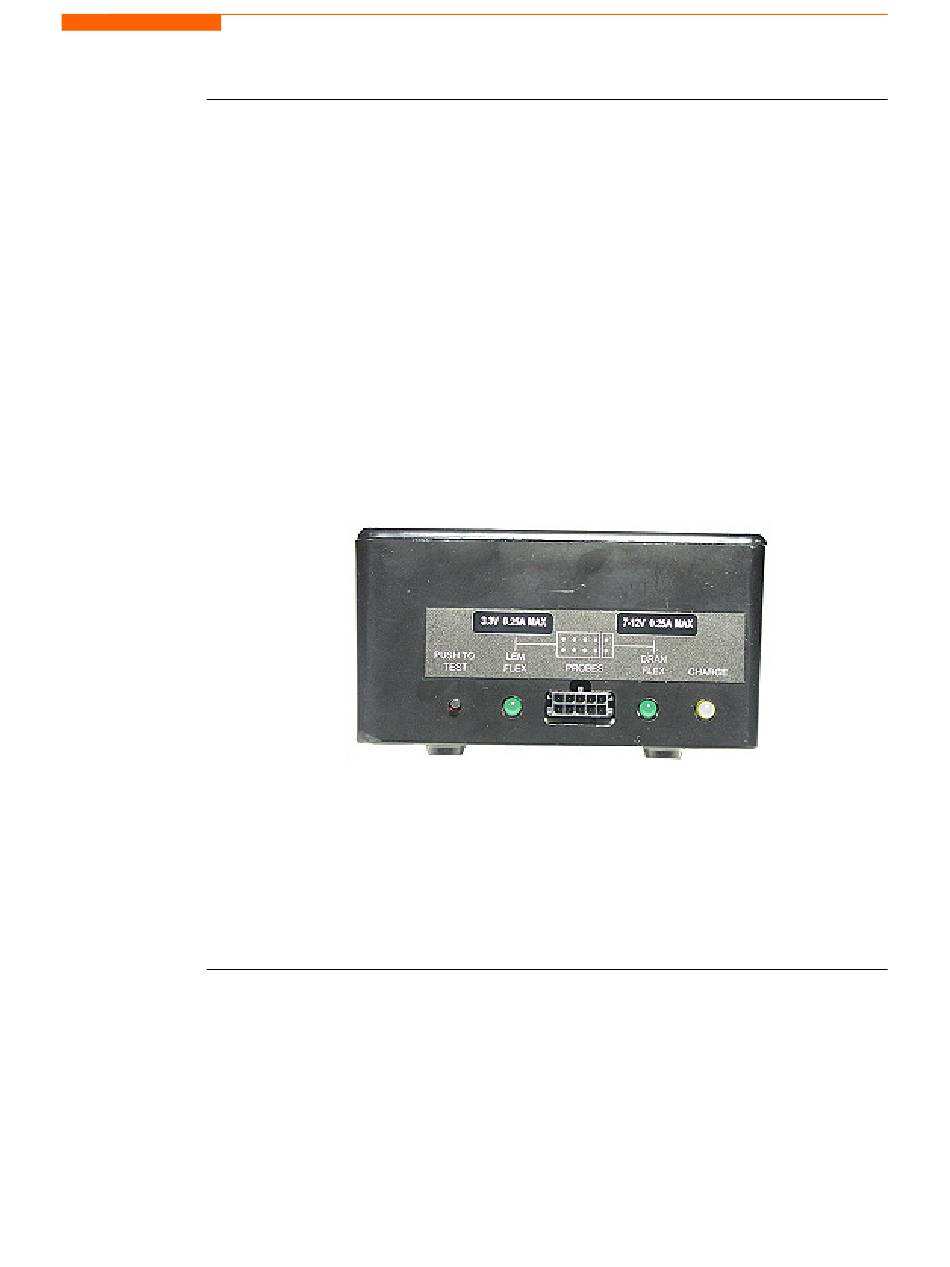

The following procedure describes the basic operation of the XBC-PX5 battery charger
Charger
operation
and its applications.
1. Insert the BP-PX5 battery pack with the proper polarity into the XBC-PX5 battery
charger.
2. If connecting DranFlex or LemFlex current probes, refer to the applicable
Information Sheets and User's Guide on how to connect current probes and follow the
proper safety procedures before proceeding.
3. Connect the applicable supplied power cord (US P/N 900744, Euro P/N 115369-G2,
UK P/N 115368-G2, or Australia P/N 901347) to the power supply inlet plug. Next,
plug the AC power plug of the battery charger to the proper power source 120 VAC for
US plug or 230 VAC for Euro, UK, or Australia type plug.
4. Allow the battery to charge for a minimum of six (6) hours before use.
NOTE: The battery charger indicator glows steadily while charging, and flashes when
the battery pack is fully charged.
5. After the 6-hour charge period, the battery pack can be removed from the charger
and used for unit operation. If the battery is left in the charger, it will remain fully
charged.
APPENDIX C/ Battery Specifications and Replacement Procedure
C-5
