Phasor Display - Dranetz DBPGFLEX3KPKG User Manual

Advertisement

LEVEL 240

Phasor Display

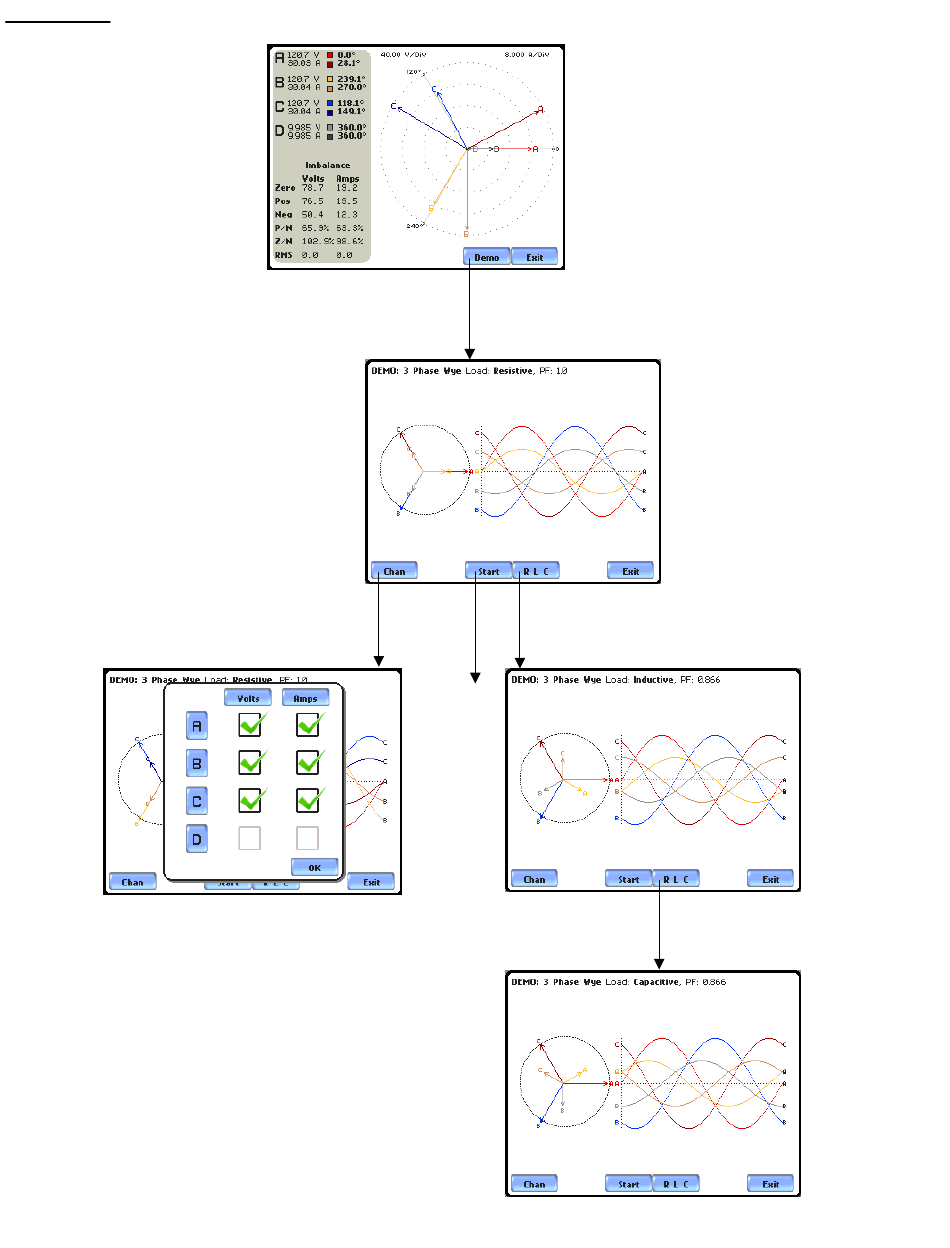

run demo to show rotating phasor relative
to sine wave graph of 4 Wire Wye
MARK245
Start/Stop
demo plot
waveforms
as rotate
phasors
MARK241
MARK242
switch demo between Resistive, Inductive
and Capacitive load effects
switch demo between Resistive, Inductive
and Capacitive load effects
MARK243
MARK244
G-13
