Trend Setup

Follow these steps to view data trends. The same procedure applies even when you
Trend settings
select different journal categories to plot.
Action...

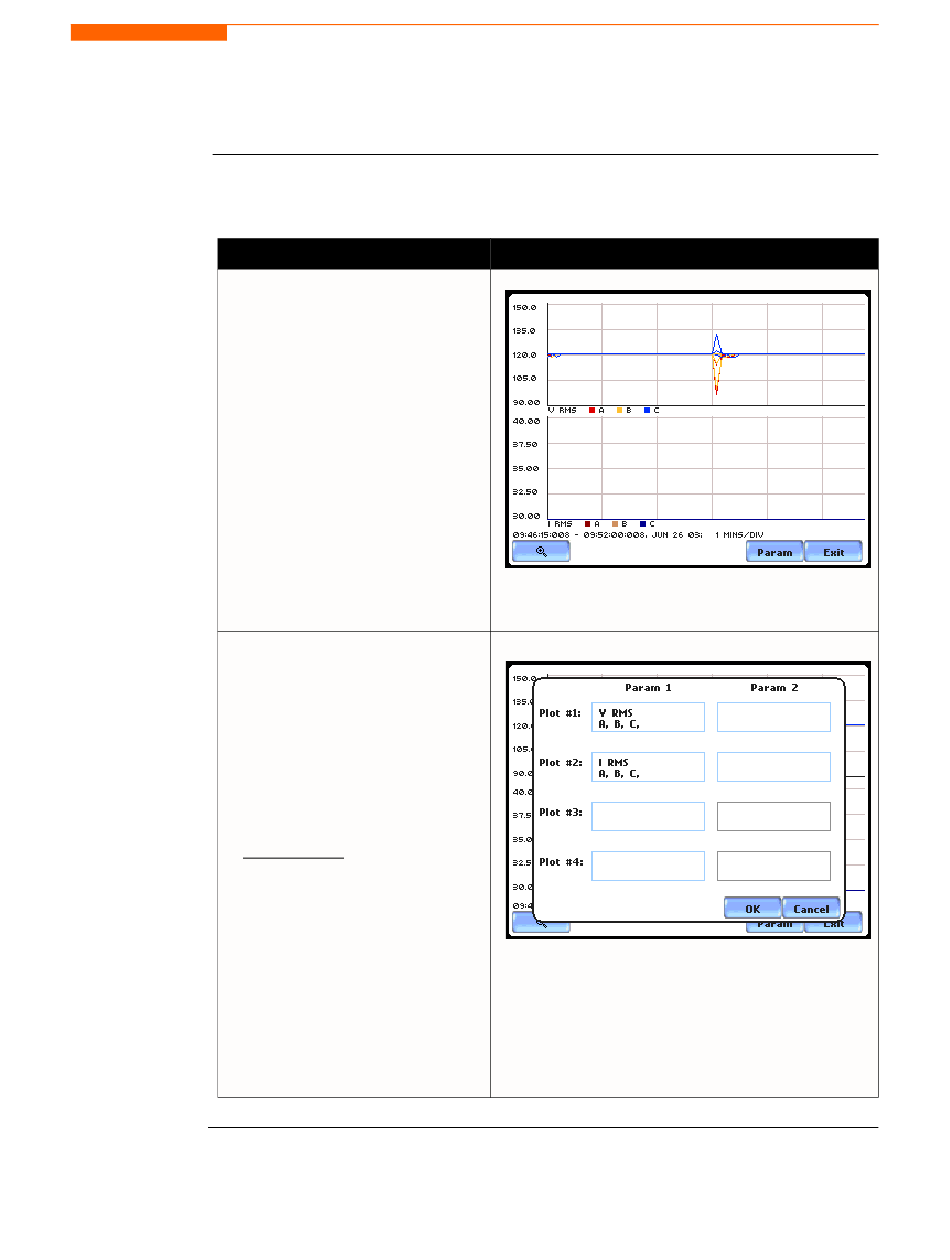

STEP 1: From the Home screen,
press Trend.
• The default number of plots
displayed in the trend screen is
two. Press Param to show the
current parameters and
channels displayed on screen.
Proceed to Step 2.
• Press the Magnify button to
use the zoom features and to
view plot coordinates in detail.
• Press Exit to quit and return to
Home screen.
STEP 2: Individual plot numbers
appear on the left hand section of
the screen. Users have the option
to change and/or add parameters/
channels to display.
• Press the parameter field that
you want to change.
For example: Press to change
Plot #2 - Parameter 1. Proceed
to Step 3 on page 7-20.
• Press OK to accept changes
and view plot display.
• Press Cancel to ignore
parameter/channel changes and
return to the screen containing
the original plot.
Result...
CH 7/ View Event Data
MARK431
MARK432
