Current Probe Selection

Current Probe Selection

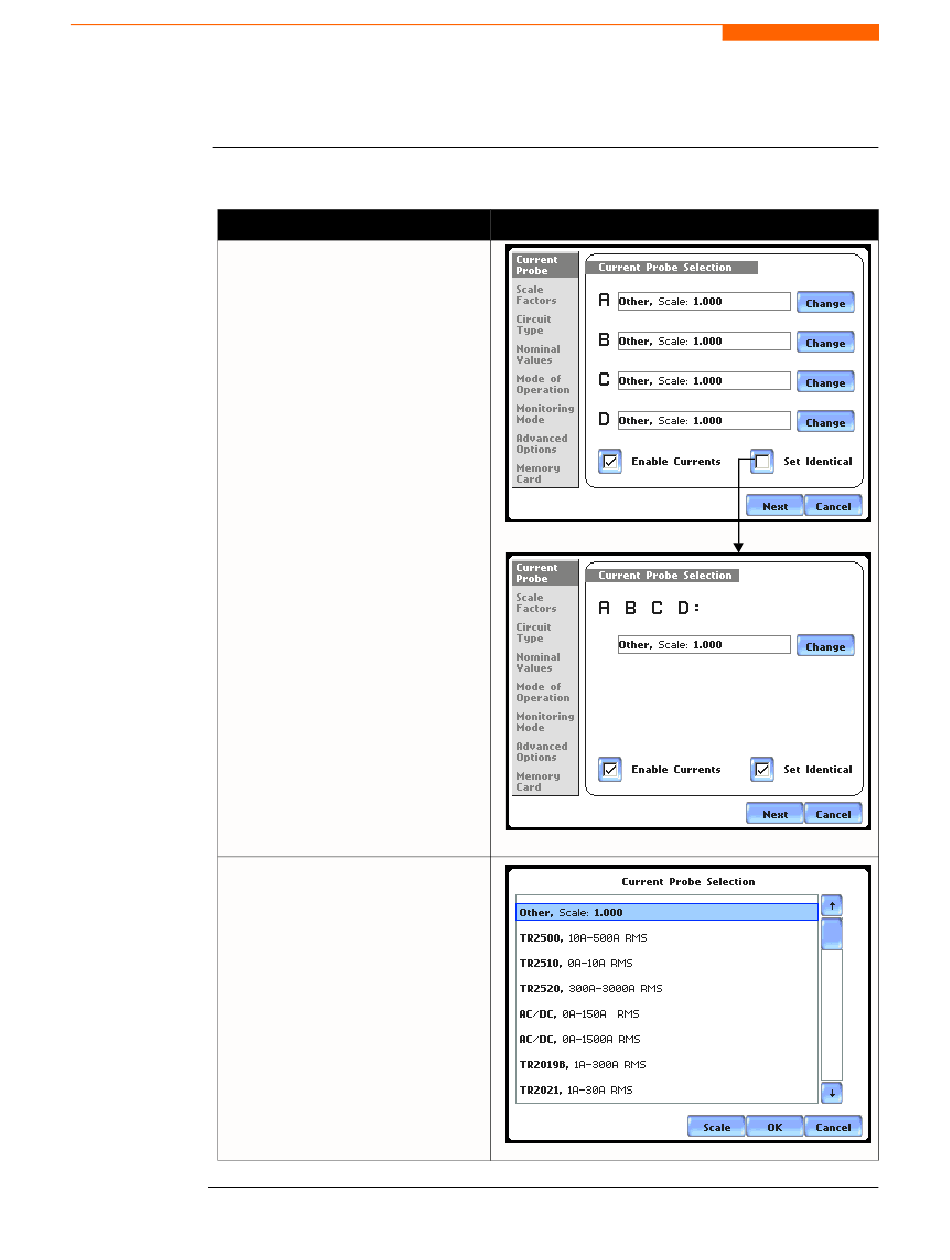

Follow these steps to monitor current and select probe type.
Selecting
current probe
Action...
STEP 1: From the Start Menu,
press Setup new circuit.
• If current will not be
monitored, press Next. Go to
page 5-10.
• If current will be monitored,
press Change to display the
probe types available for each
channel. Proceed to Step 2.
• If using identical probe type for
all channels, press to enable Set
Identical. The display will
change to show only one probe
selection. Press Change to
display the probe types
available. Proceed to Step 2.
• If you want to enable/disable
current channels, press to
select/deselect Enable
Currents.
• Press Cancel to quit and return
to Start menu.
STEP 2: Select your desired
probe type.
NOTE: Use the same probes for
the following: TR2500 for
TR2500A, TR2510 for TR2510A,
TR2520 for TR2520A.
• If the current probe that you are
using is not on the list, select
Other. Then press Scale to
define the CT scale factor on
the current probe. Proceed to
Step 3 on page 5-9.
5-8
Result...
MARK101
MARK103
MARK104
Continued on next page
