3 Phase 2-Watt Delta

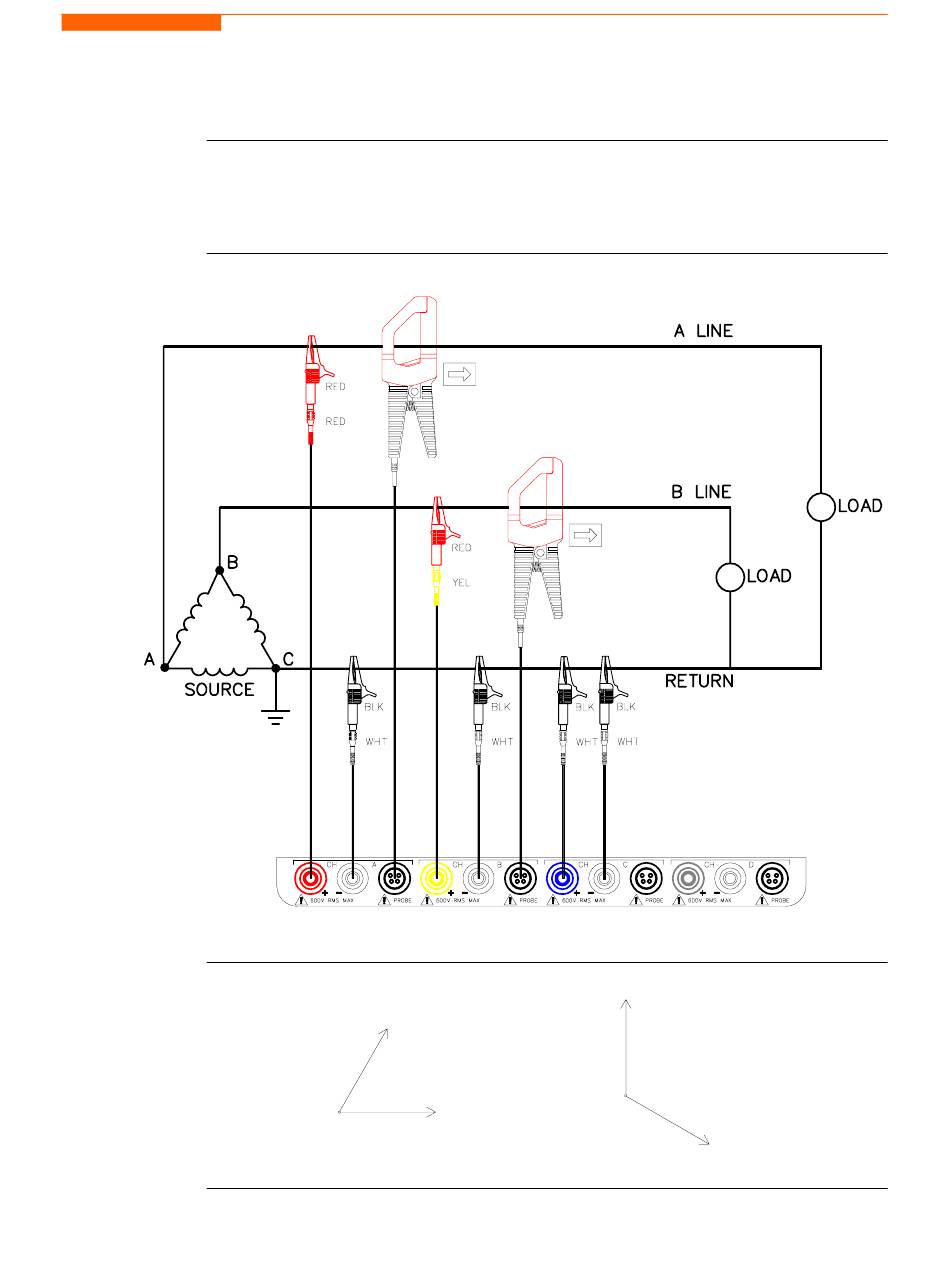

The figure below shows the 3 Phase 2-Watt delta connection using phase channels A-
Introduction
B-C. Current probes are connected to channels A and B. Neutral to ground
measurements are important but optional.
Connection
diagram
Phasor
diagrams
APPENDIX E/ Common Circuit Connections
60º
V
B
0º
V
A
90º
I
B
I
A
330º
PX5-905
E-11
