4400 Controls, Indicators, and Connectors, continued
The bottom view features two slots. Either slot can be used to hold the data card.

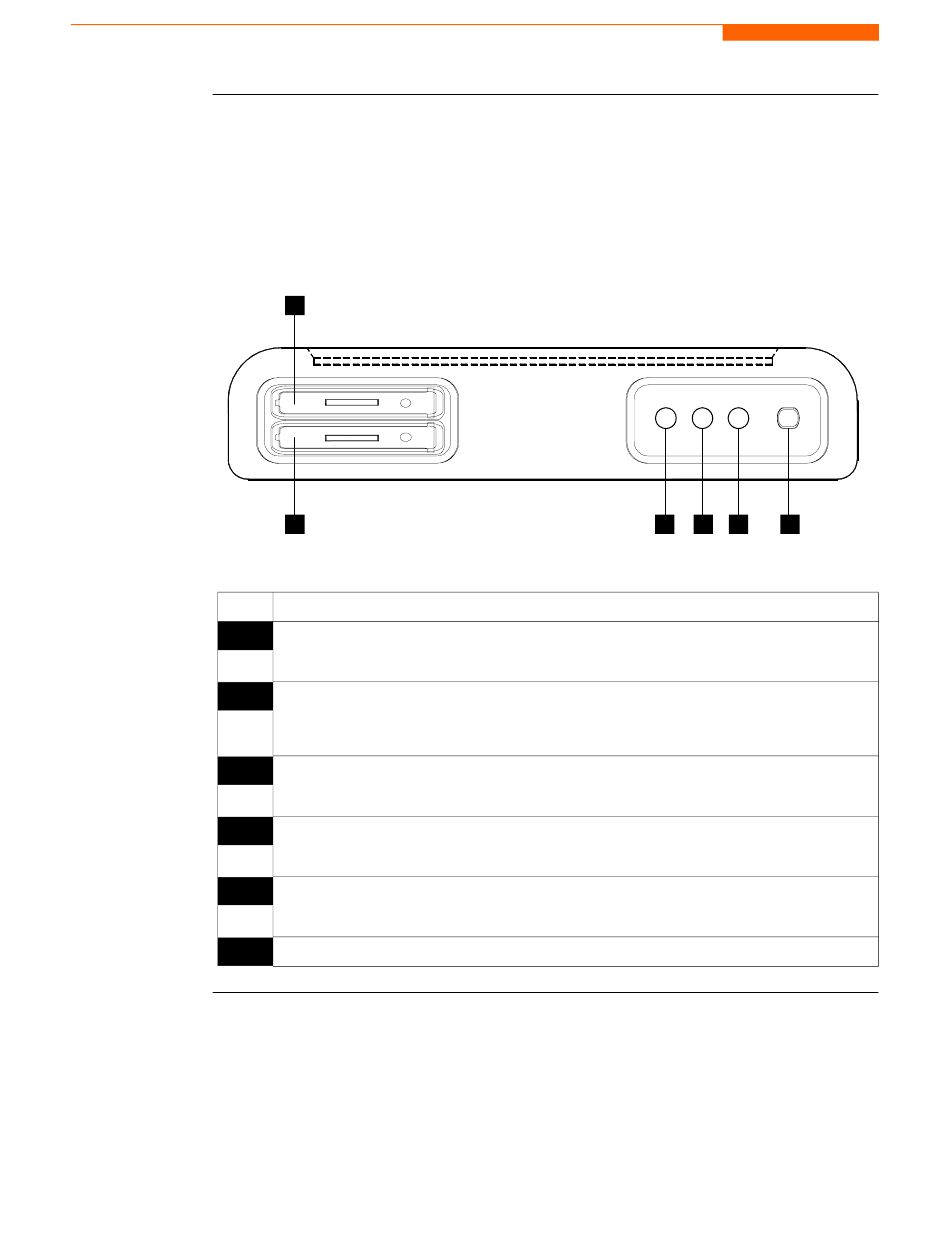

Bottom view
NOTE: Use only one card slot (one data card) at a time. The additional slot will be used
for future communications options.
The bottom also features LED indicators and the On/Off power button. See below for
descriptions of the slots, indicators, and button.
Parts table
Part
1
2
3
4
5
6
1-8
1
S L O T 1
S L O T 2
2
Slot 1. Holds and connects data card to internal circuitry. Data card works in
either Slot 1 or Slot 2. Eject data card by pushing data card release.
Slot 2. Holds and connects data card to internal circuitry. Data card works in
either Slot 1 or Slot 2. Eject data card by pushing data card release.
NOTE: This additional slot will be used for future options.
Battery Charge Indicator. LED will light steadily while battery is fast
charging and blink when fully charged.
Status Indicator. LED will light steadily when abnormal condition is detected.
The unit is operating normally when light is off.
Power Indicator. LED will blink in a heartbeat fashion (once per second) when
the unit is operating normally.
On/Off Power Button. Push for on, push for off.
3 4
Function
5 6
