Event Detail

The 4400 allows users to view events in graphic waveform/rms display. The Detail
Event details
screen features zoom buttons to magnify event cycles, and a zoom box that users can
resize via touch and drag. The Detail screen also allows viewing of events alternately in
rms or waveform.
Auto-scaled to display all waveforms in file until range is narrowed by zoom in
Horizontal axis
Auto-scaled to the minimum and maximum value within time range.
Vertical axis
An event detail screen is generated for each event. The detail screen shows events in
View event
detail
rms by default. Follow these steps to view event details.

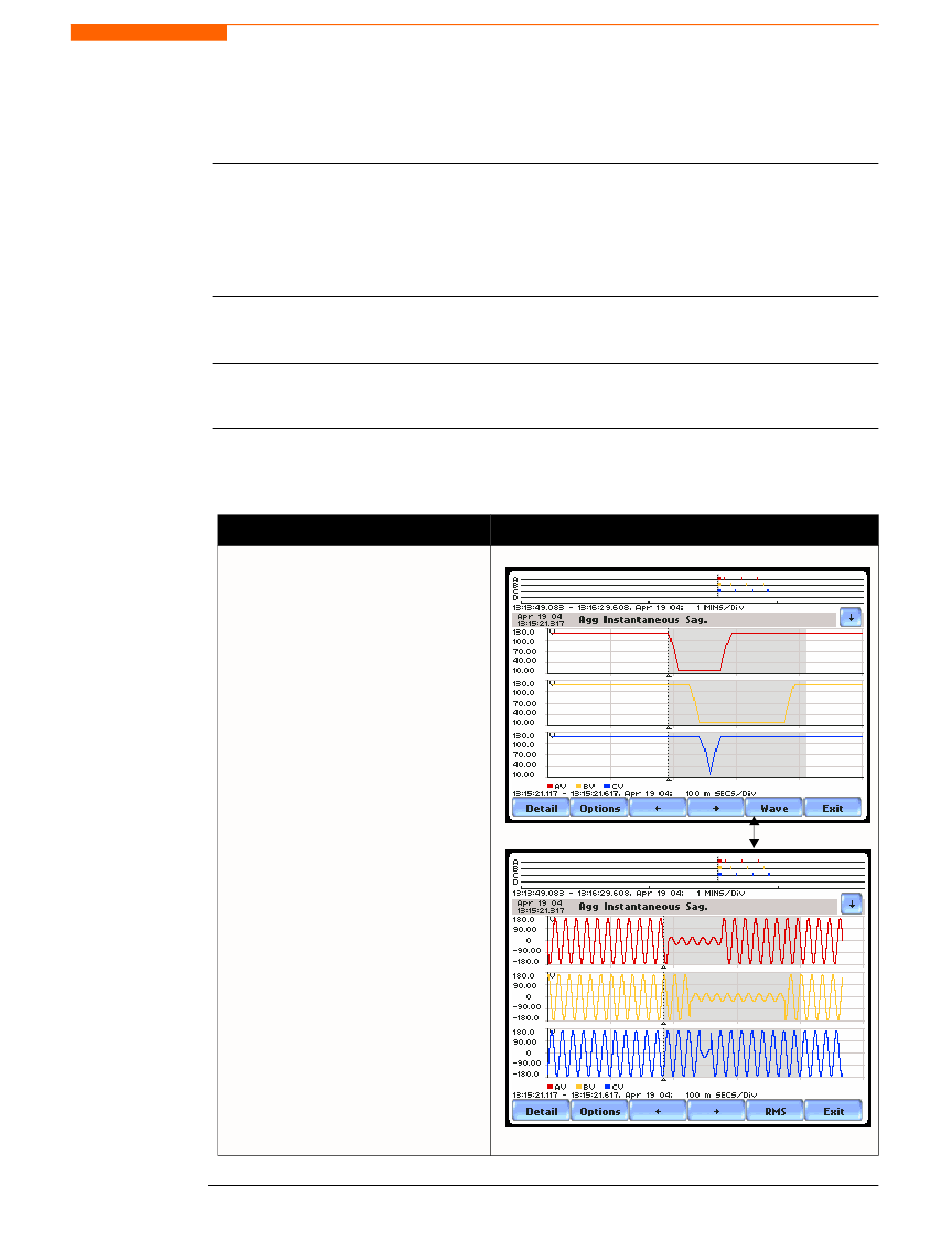

Action...
STEP 1: From the Home screen,
press Events. Events must already
be loaded into memory to be
available for display.
Use the event list to scroll through
event entries OR use the left and
right arrow keys to view previous/
next event display.
• Press Wave/RMS to toggle
between waveform and rms
display.
NOTE: The gray area marks the
duration of the event displayed.
The dotted black lines indicate the
start of event.
• Press Detail to use the zoom
features and view waveform/
rms in detail. Proceed to Step 2
on page 7-10.
Result...
CH 7/ View Event Data
.
MARK505bpg
MARK505cpg
Continued on next page
7-9
