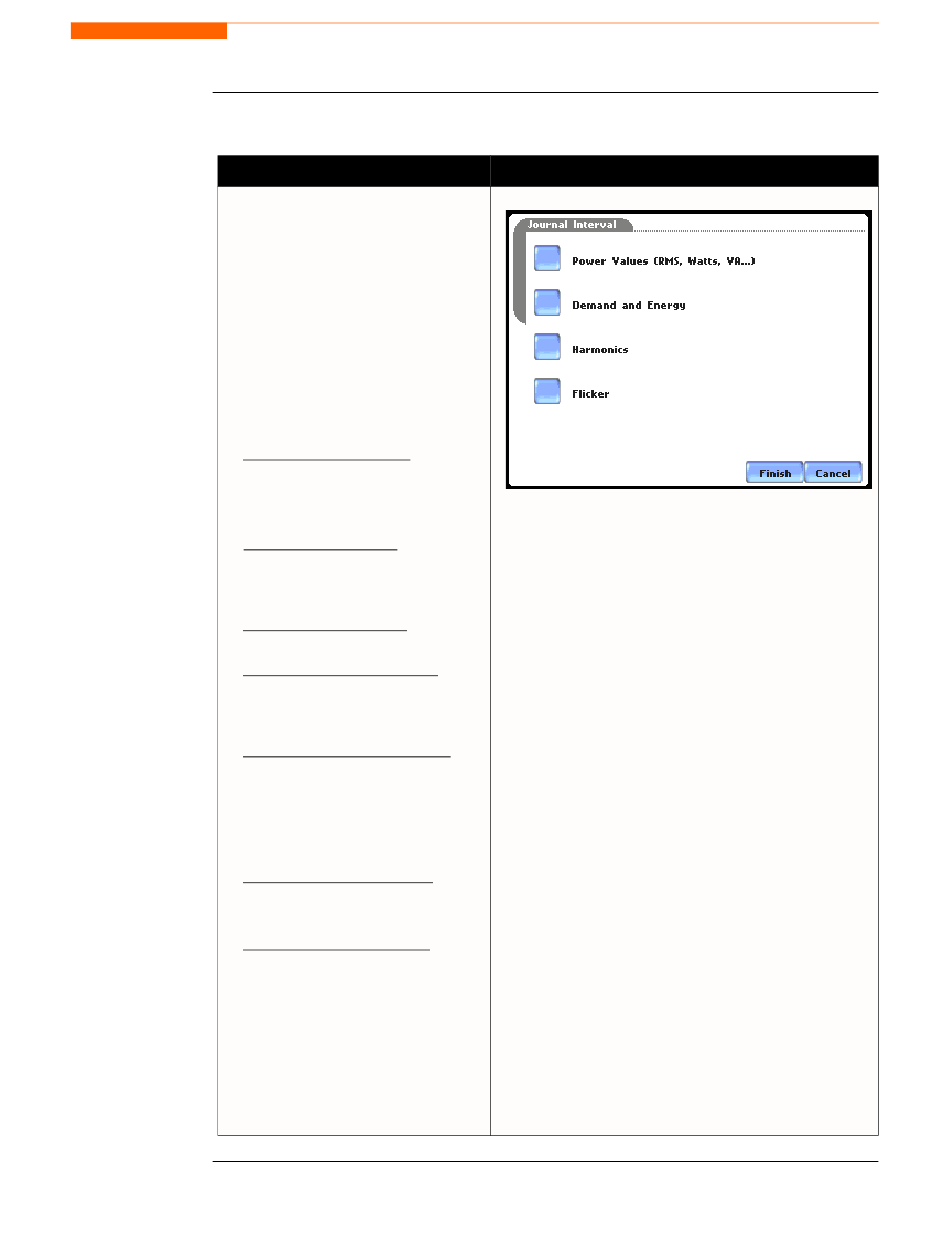

The intervals for timed readings are user programmable.
Timed settings
menu
Action...
STEP 1: From the Advanced
Options screen, press Journal
Interval. The Journal Interval
menu will be displayed.
Press the parameter that you want
to change. Each journal interval
must be pressed repeatedly to
display the available selection
values.
• Selections for Power Values:
Power Values Interval: OFF,
1 SEC, 1 MIN, 2 MINS,
3 MINS, 5 MINS, 10 MINS,
15 MINS, 1 HR
• Waveform Snapshot: OFF, ON
• Selections for Demand and
Energy:
Demand Sub-Interval (in
MINUTES): OFF, 3, 5, 10, 15
Sub-Intervals per Interval:
OFF, 1, 2, 3, 4, 5, 6
• Selections for Harmonics:
Harmonics Journal Interval:
OFF, 30 SEC, 1 MIN, 2 MINS,
3 MINS, 5 MINS, 10 MINS, 15
MINS, 1 HR
• Selections for Flicker:
Pst (Short Term) Interval (in
MINUTES): OFF, 1, 2, 3, 5, 10,
15, 30
Plt (Long Term) Interval (in
HOURS): OFF, 1, 2, 3, 4, 8
• Press Finish to accept the new
timed settings.
• Press Cancel to retain previous
timed settings and return to
Advanced Options menu.
