Event Statistics - Dranetz DBPGFLEX3KPKG User Manual

Event Statistics, continued
The DISDIP table also includes those events of Transient type. Scroll down the next
UNIPEDE
DISDIP
page of the UNIPEDE DISDIP Statistics table to display data for Transient
Statistics table
Overvoltage as shown below.
(continued)
Transient Event Count: Transient phenomena are typically found in bin groupings such
as:
• Transient Overvoltage - classified in 5 Magnitudes x 1 Count
The EN50160 DISDIP 3D Graph is an object representation of the table for rms
variations found in page 8-13. The graph offers a quick and visual way to see what
category most of the rms disturbances fall into, whether as Dips, Interruptions, or
Temporary Overvoltages.
8-14
Display table for RMS
Events (p. 8-13)
Display table for RMS
Events (p. 8-13)

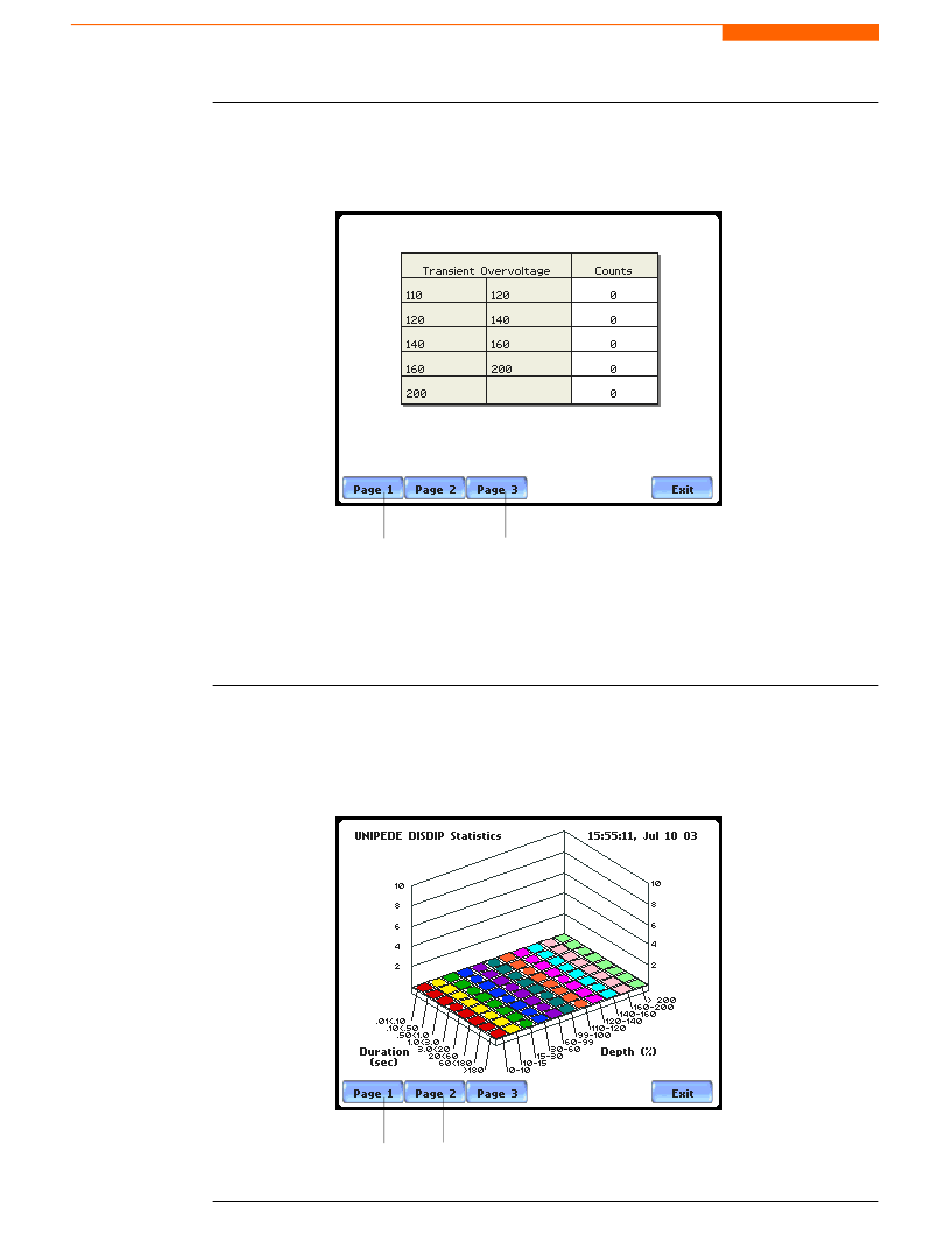

Display DISDIP 3D
graph (see below)
Display table for Transient
Overvoltage (see above)
