Generic Circuit

Generic Circuit

In the Generic circuit connection, the 4400 uses voltage channels A, B, C, and D as
Introduction
differential inputs. Current probes are connected to channels A, B, C, and D.
Connection

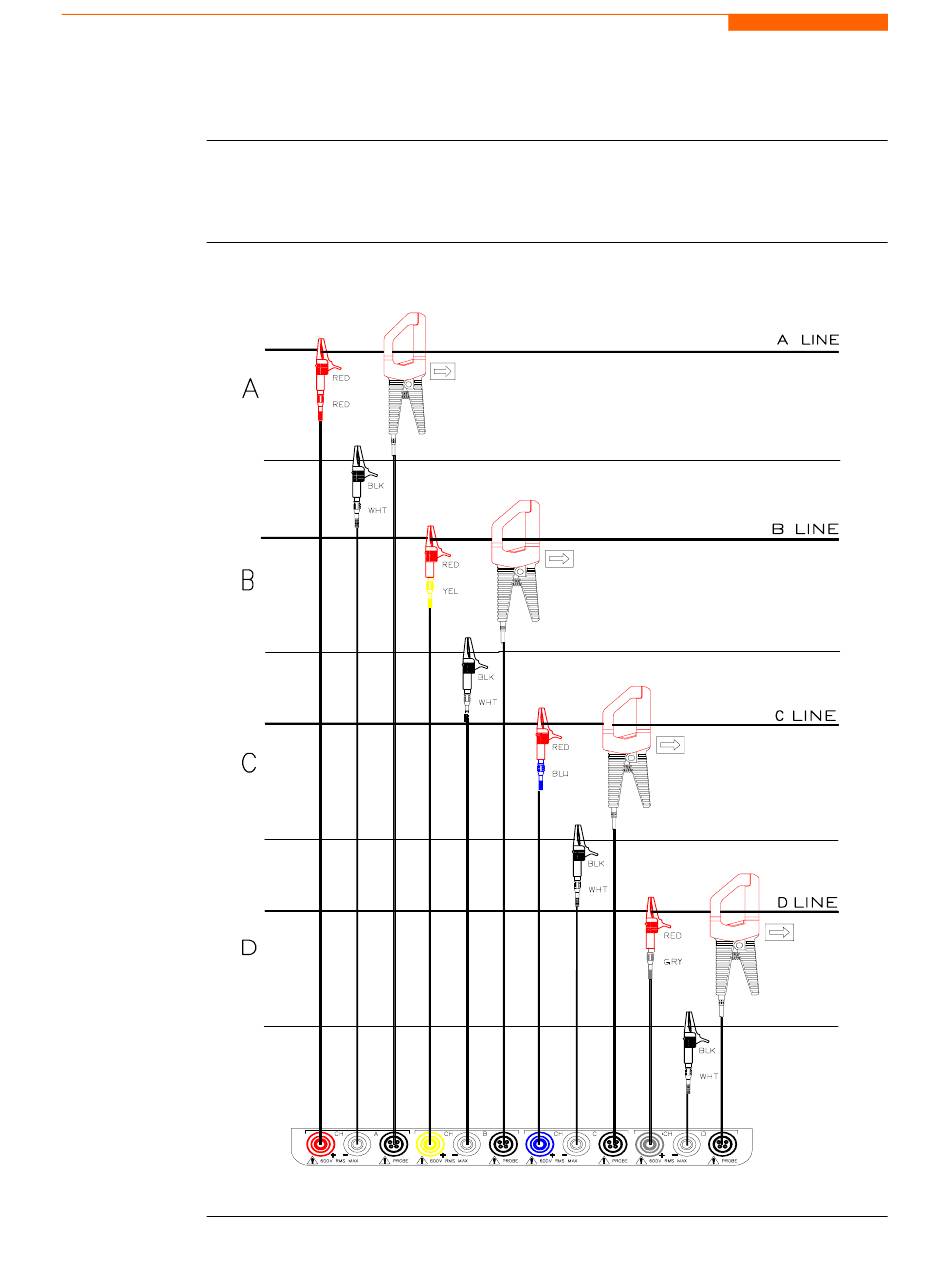

diagram
E-12
PX5-906
