Dranetz HDPQ Xplorer Firmware Update Instructions
Power quality analyzer hdpq series
Hide thumbs
Also See for HDPQ Xplorer:
- User manual (306 pages) ,
- Datasheet (27 pages) ,
- Quick reference manual (60 pages)
Related Manuals for Dranetz HDPQ Xplorer
Summary of Contents for Dranetz HDPQ Xplorer

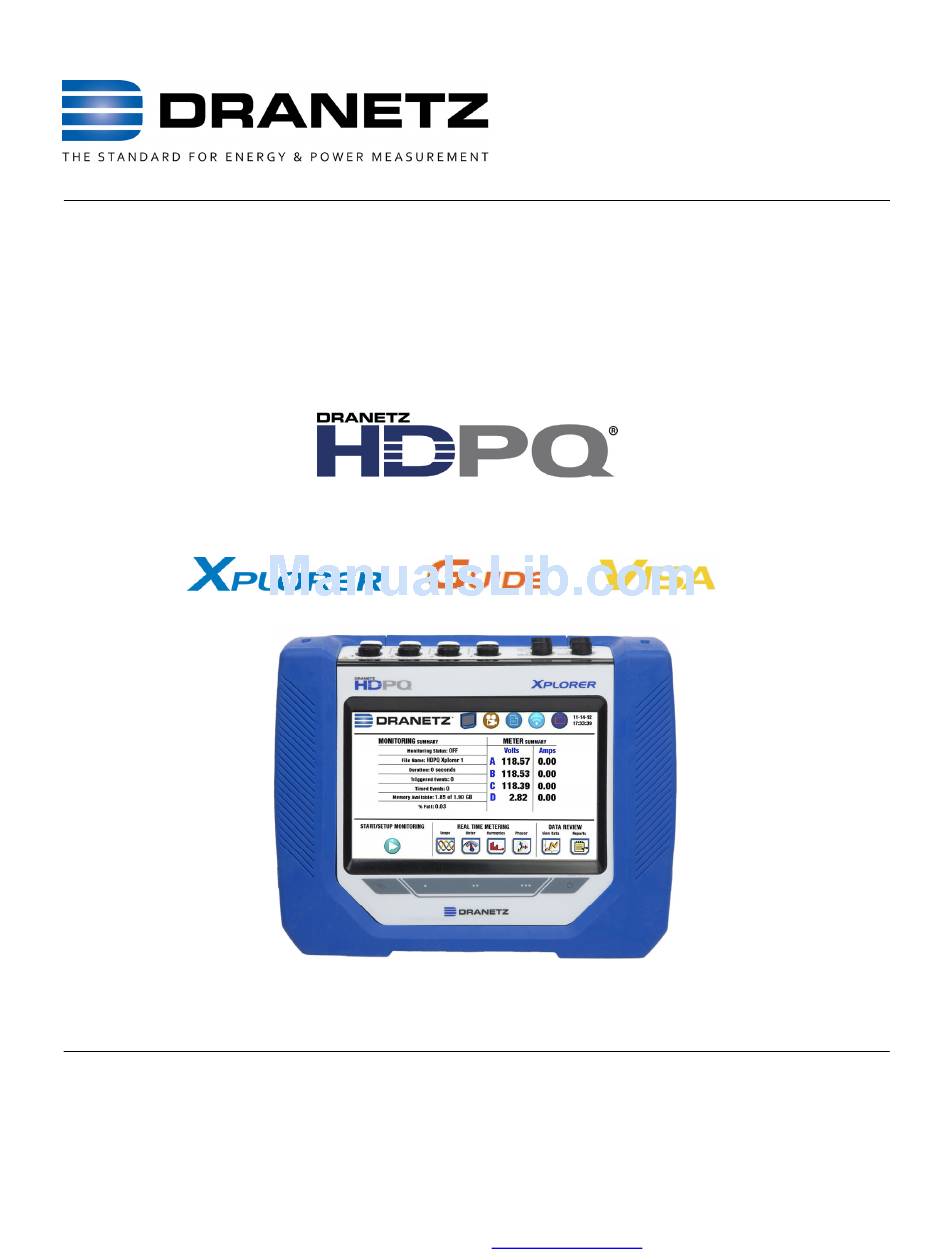

- Page 1 INSTRUCTIONS TO UPDATE FIRMWARE FOR / Dranetz 1000 New Durham Road, Edison, New Jersey 08818 Telephone 1-800-372-6832 or 732-287-3680 Fax 732-248-1834 www.dranetz.com ...
- Page 2 Guide, & Visa The illustration below shows the high level process for updating firmware: • Download the latest firmware update release from the Dranetz website into the root directory of a USB flash drive. • Once the firmware file is copied, insert the USB flash drive into the USB connector on the right side panel of the instrument.
-
Page 3: Update Firmware
You can update the HDPQ’s internal program by downloading the latest firmware release from the web to install into internal memory. Refer to the instructions below on how to update the unit’s firmware. Firmware updates can be downloaded from the Dranetz website. Log on to http://www.dranetz.com/technical-support-request/612-2/ for the latest information on firmware update releases. - Page 4 Update Firmware, continued The procedure below details how to install the latest firmware update to the HDPQ. Action... Result... STEP 1: From the Home Screen, press Setup Instrument located at the lower right corner of the screen. Pressing the setup instrument icon will bring you to the next screen, to begin the update firmware...
- Page 5 Update Firmware, continued The procedure below details how to install the latest firmware update to the HDPQ. Action... Result... STEP 3: Once the instrument restarts, a message indicating that a firmware package file has been detected is displayed. • Press Yes to use the file to upgrade the instrument firmware.
- Page 6 Upgrade Firmware, continued Action... Result... STEP 6: Once the instrument returns to the Home screen, a message at the bottom of the screen reports that the measurement firmware is being copied. NOTE: It is very important to not interrupt this process. Once the firmware update is complete, the instrument automatically restarts and begins...
- Page 7 First, power the instrument “OFF” and back “ON” and repeat steps 1 through 8 of this procedure. If you require additional product support, contact the Dranetz Customer Support Department . Telephone: (732) 287-3680 or 1-800-372-6832. 899262c.doc 01‐26‐17 6 ...
