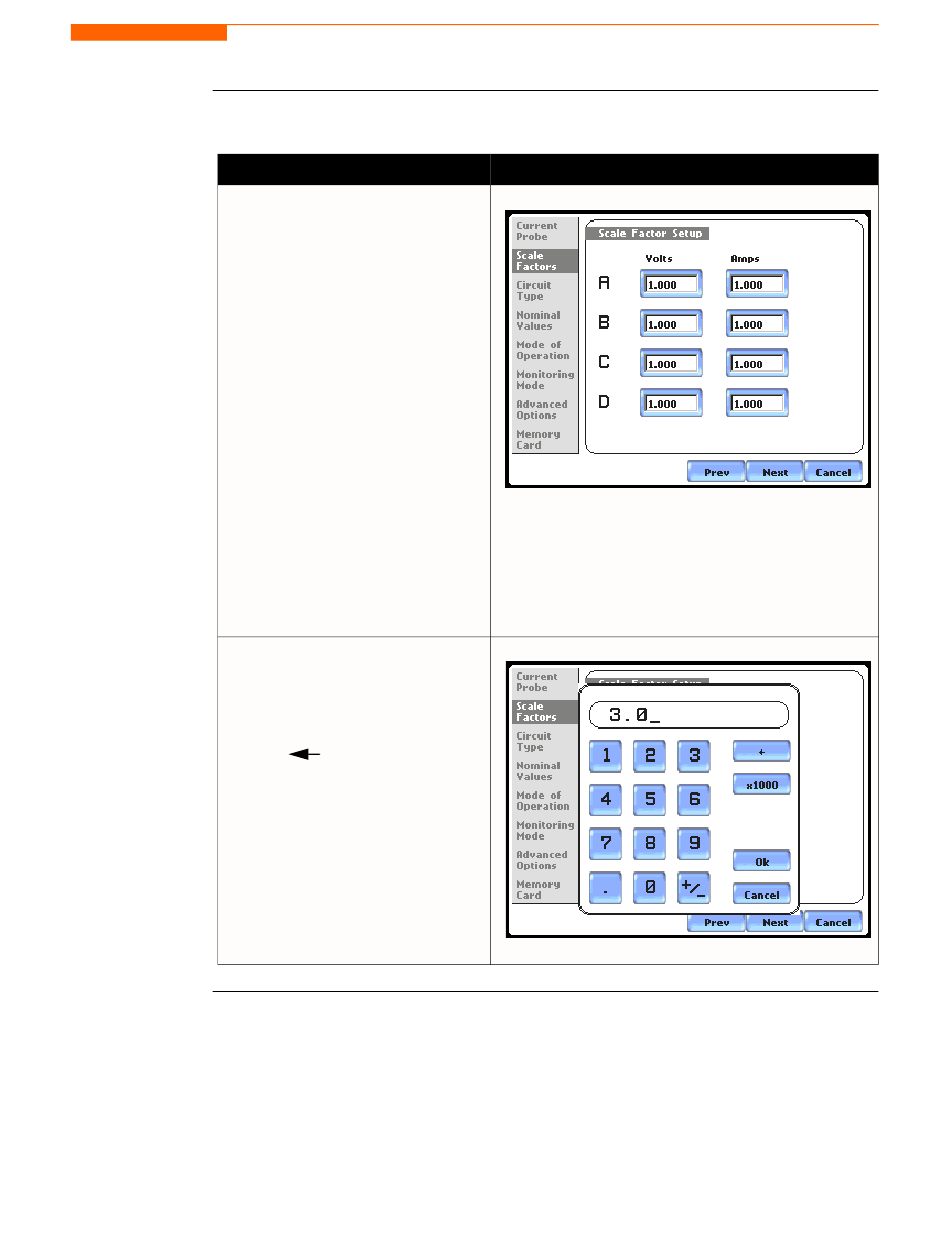

After setting up current probe configurations, the Scale Factor screen is displayed.
Scale factor
setup screen
Action...
STEP 1: From the Current Probe
Selection screen, press Next to
display the Scale Factor Setup.
• If voltage and current
connections are made without
using any current or potential
transformer devices, the scale
factor is set to the default value
of 1. Press Next and go to page
5-11.
• To enter new scale factors,
press the numeric field of the
Volts/Amps channel where you
want to enter new scale factors.
Proceed to Step 2.
• Press Cancel to quit and return
to Start menu.
STEP 2: Enter a new scale factor
value using the numeric keypad.
Press OK to accept the new scale
factor.
• Press
numeric values.
• Press x1000 to multiply the
value by 1000.
• Press Cancel to discard
changes and retain previous
scale factor value, and return to
Scale Factor Setup screen.
.. . . . to clear and retype
Result...
CH 5/ Start Menu
MARK105
MARK105b
5-11
