Phasor Screen

The Phasor screen is displayed by pressing Phasor on the Home screen.
Phasor screen
display

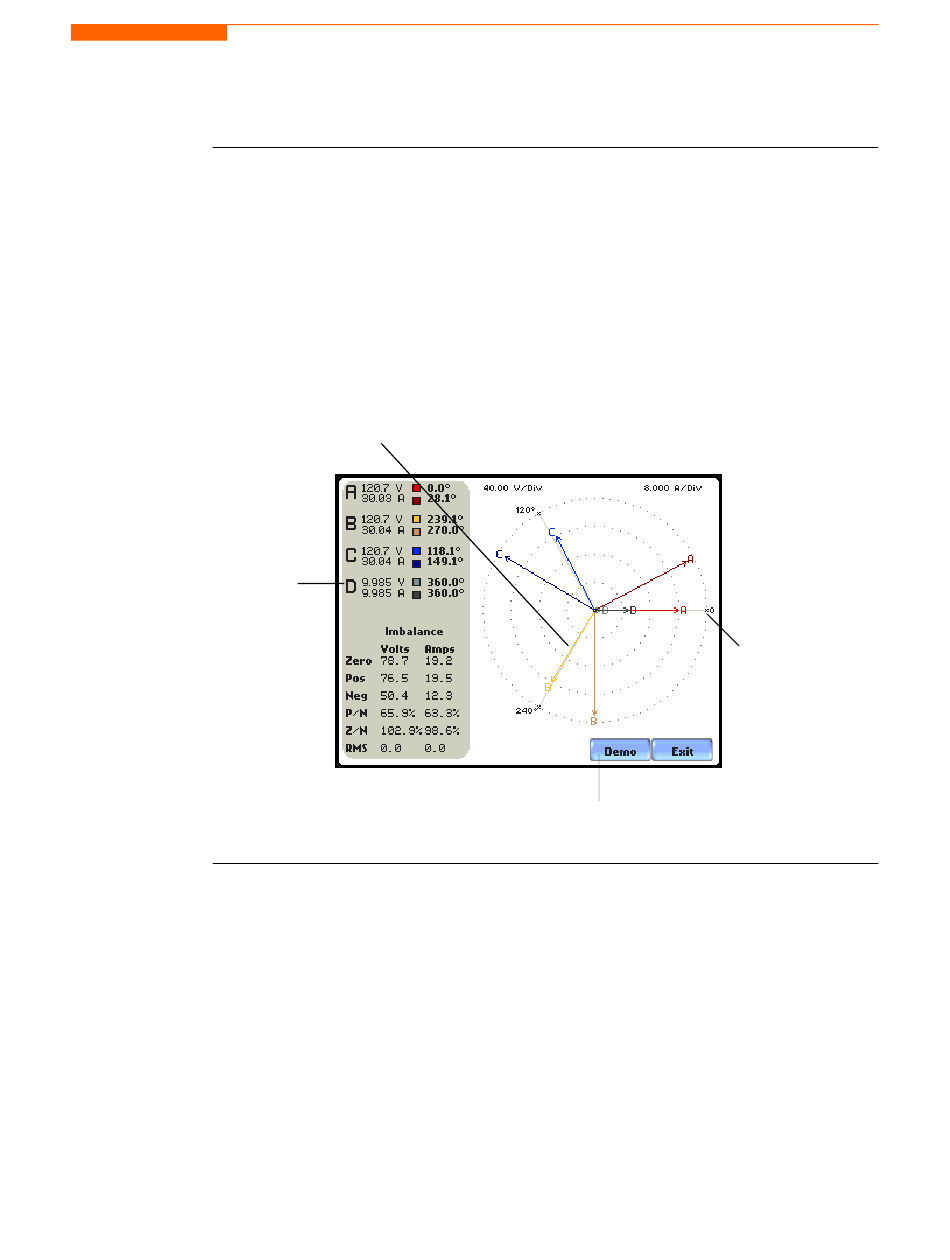

The Phasor screen shows eight phasors autoscaled with zero degree to the right for
clockwise rotation and with synchronized channels. The left sidebar shows rms values
for Volts/Amps for channels A, B, C and D; zero, positive and negative values for
Volts/Amps; zero, positive and negative sequence component values for Volts/Amps.
Depending on the phases being monitored, up to four channels may be displayed at any
one time for either Volts or Amps, or a single channel for both Volts and Amps. An
arrow head and channel label are displayed on the vector.
Correct rotation is clockwise from 0
If a channel is less than
20% of the maximum
voltage (or current), the
phasor is not displayed
º
Show animated phasor demo rotation for Resistive,
Inductive and Capacitive loads (p. 3-18)
CH 3/ View Real Time Data
Sync channel is
displayed at 0
normally channel
A voltage
