Overview

Status Report in Annunciator Panel
Overview
Status summary for three report types - Standard PQ, EN50160, and Motor Quality -
Annunciator
panel
can be displayed via the annunciator panel. Real time data, event count, or user-
specified calculated data is available in the matrix display of the annunciator panel.
When monitoring is on, the annunciator panel displays the status of a parameter using a
color scheme. Journal data and events can be directly viewed from the annunciator
panel.
For example:

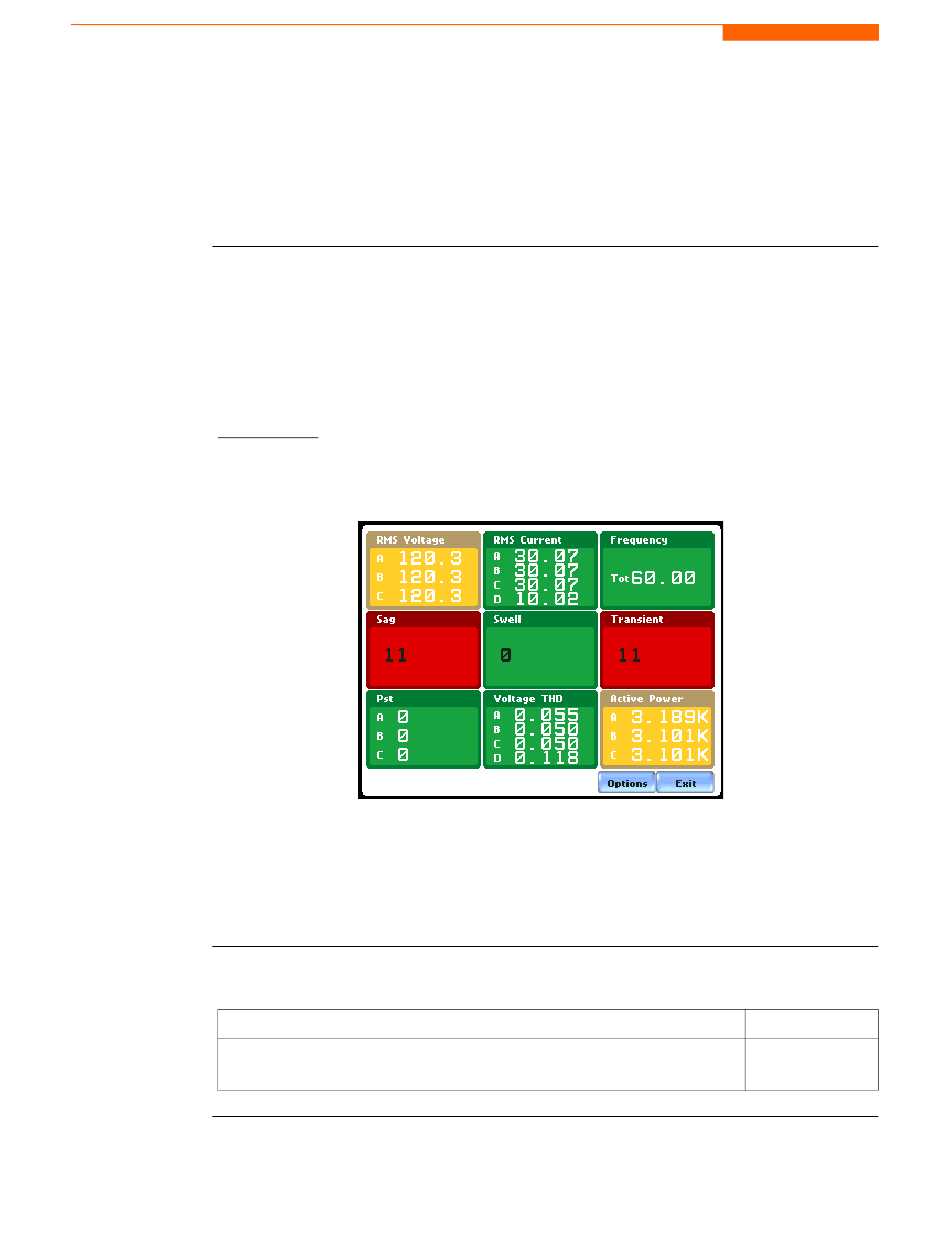

From the Reports screen, press Status. The annunciator panel will display Standard PQ
preset parameters by default (shown below).
NOTE: Where applicable, the values reported within a parameter in the annunciator
panel refer to measurements on channels A, B, C, and D respectively. The measurement
values for each channel are updated approximately once per second while monitoring is
on.
The following topics are covered in this section.
In this section
8-16
Section B
Panel Setup Options
Panel Operation
Topic
MARK601
See Page
8-17
8-19
