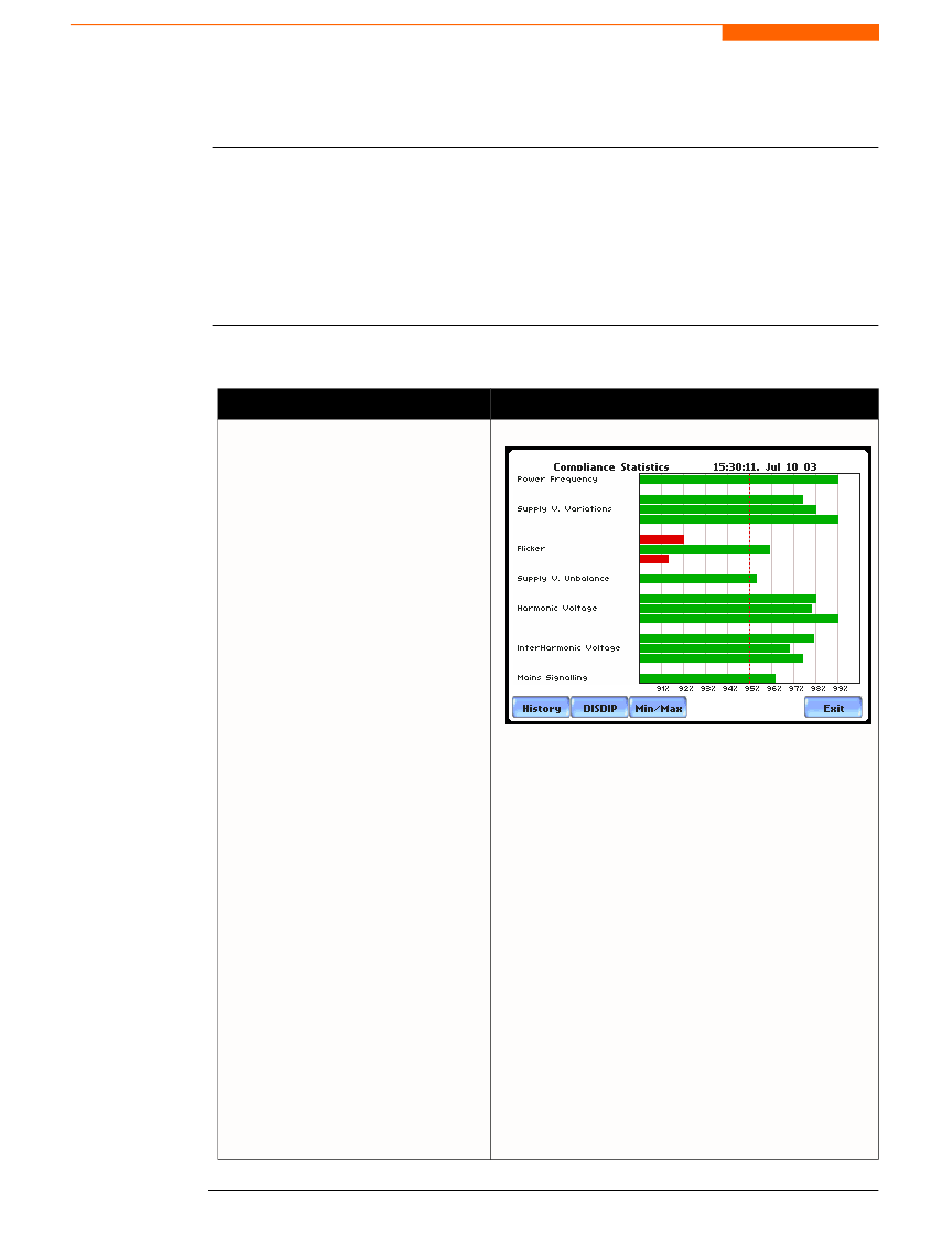

Compliance Statistical Bar Chart
Compliance Statistical Bar Chart
The Compliance Statistical bar chart displays the seven parameters that are required for
Chart
description
determining QOS compliance. See pages 8-3 to 8-4 for the description of each of the
EN50160 parameters. The bar chart indicates the percentage of the interval passing the
specified compliance criteria. The color of the bar indicates compliance status. Select
bars in the chart i.e. Power Frequency, Harmonic Voltage, and Interharmonic Voltage
will further display component details when pressed.
Follow these steps to access the EN50160 Compliance Statistical Bar Chart.
View
Compliance
Statistics bar
Action...
chart
STEP 1: From the Home screen,
press Reports. Press EN50160 to
display the EN50160 statistical
reports.
The Compliance Statistics bar
chart displays the parameters
required for determining
compliance. A green bar indicates
that the parameter is within
compliance. A red bar indicates
that the parameter does not
comply with EN50160.
Select bars will show component
detail when pressed.
• Press the Power Frequency
bar to view the Power
Frequency Graph. Proceed to
Step 2 on page 8-9.
• Press the Harmonic Voltage
bar to view the Harmonic
Graph. Proceed to Step 3 on
page 8-9.
• Press the Interharmonic
Voltage bar to view the
Interharmonic Graph. Proceed
to Step 4 on page 8-10.
• Press History to view the
Compliance History table. Go
to page 8-11.
8-8
Result...
MARK471
Continued on next page
