Tabelle 11: : Status of the test bit
"Test bit" signal
lamp color
Gray
Green
Diagnosis Signal lamps for diagnosis (see "Software diagnosis meanings" on page 67)
Entry options Pressure set point
Test bit
Pressure range

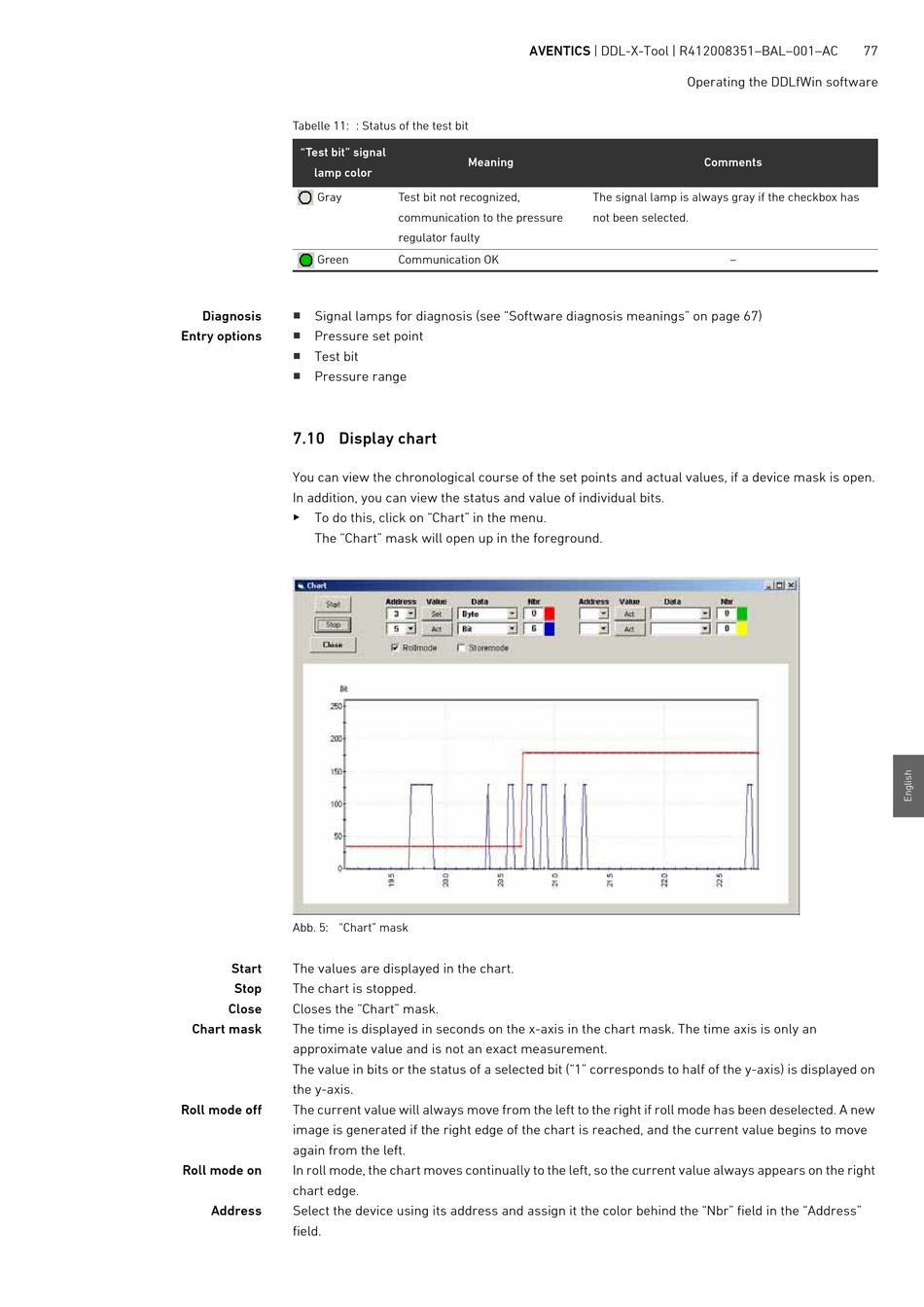

7.10 Display chart

You can view the chronological course of the set points and actual values, if a device mask is open.
In addition, you can view the status and value of individual bits.
To do this, click on "Chart" in the menu.
The "Chart" mask will open up in the foreground.
Abb. 5: "Chart" mask
Start The values are displayed in the chart.
Stop The chart is stopped.
Close Closes the "Chart" mask.
Chart mask The time is displayed in seconds on the x-axis in the chart mask. The time axis is only an
approximate value and is not an exact measurement.
The value in bits or the status of a selected bit ("1" corresponds to half of the y-axis) is displayed on
the y-axis.
Roll mode off The current value will always move from the left to the right if roll mode has been deselected. A new
image is generated if the right edge of the chart is reached, and the current value begins to move
again from the left.
Roll mode on In roll mode, the chart moves continually to the left, so the current value always appears on the right
chart edge.
Address Select the device using its address and assign it the color behind the "Nbr" field in the "Address"
field.
AVENTICS | DDL-X-Tool | R412008351–BAL–001–AC
Meaning
Test bit not recognized,
communication to the pressure
regulator faulty
Communication OK
Operating the DDLfWin software
Comments
The signal lamp is always gray if the checkbox has
not been selected.
–
77
