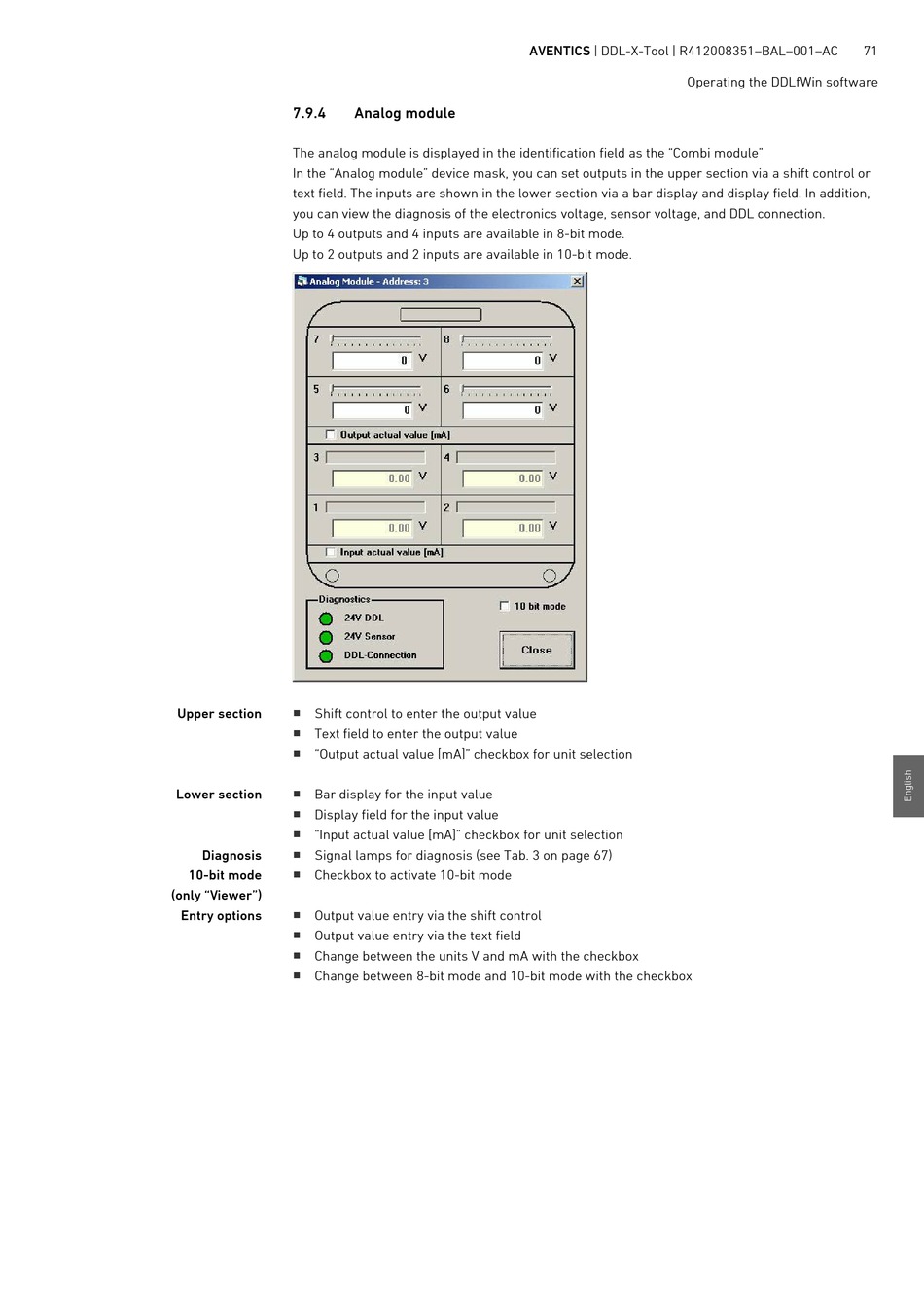

7.9.4
The analog module is displayed in the identification field as the "Combi module"
In the "Analog module" device mask, you can set outputs in the upper section via a shift control or
text field. The inputs are shown in the lower section via a bar display and display field. In addition,
you can view the diagnosis of the electronics voltage, sensor voltage, and DDL connection.
Up to 4 outputs and 4 inputs are available in 8-bit mode.
Up to 2 outputs and 2 inputs are available in 10-bit mode.
Upper section Shift control to enter the output value
Text field to enter the output value
"Output actual value [mA]" checkbox for unit selection
Lower section Bar display for the input value
Display field for the input value
"Input actual value [mA]" checkbox for unit selection
Diagnosis Signal lamps for diagnosis (see Tab. 3 on page 67)
10-bit mode Checkbox to activate 10-bit mode
(only "Viewer")
Entry options Output value entry via the shift control
Output value entry via the text field
Change between the units V and mA with the checkbox
Change between 8-bit mode and 10-bit mode with the checkbox
Analog module
