Operating the DDLfWin software
7.2

The main program window

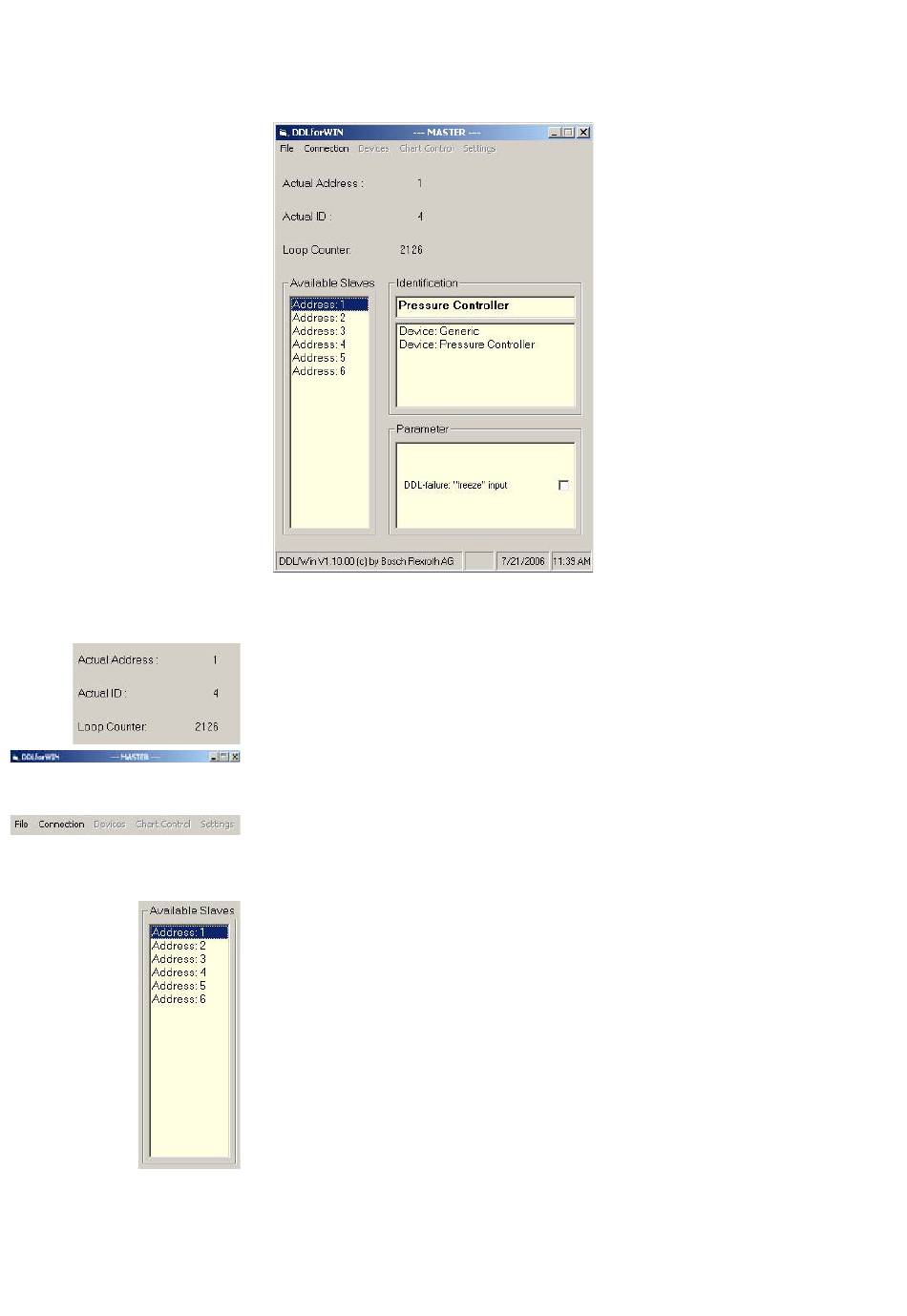

The main program window consists of the following elements:
General information
indicates the current address, current ID, and the number of loops for the DDL line.
The title bar
indicates the "Master" or "Viewer" operating mode.
The menu bar
contains the menu items "File", "Connection", "Devices", "Chart control", and "Settings" (see "The
menu structure" on page 61)
"Available slaves" field
The "Available slaves" field shows the addresses set for the available participants, as long as the
DDL line is active.
You can select a device by clicking on the address. The basic data of the selected device will then be
shown in the identification field.
