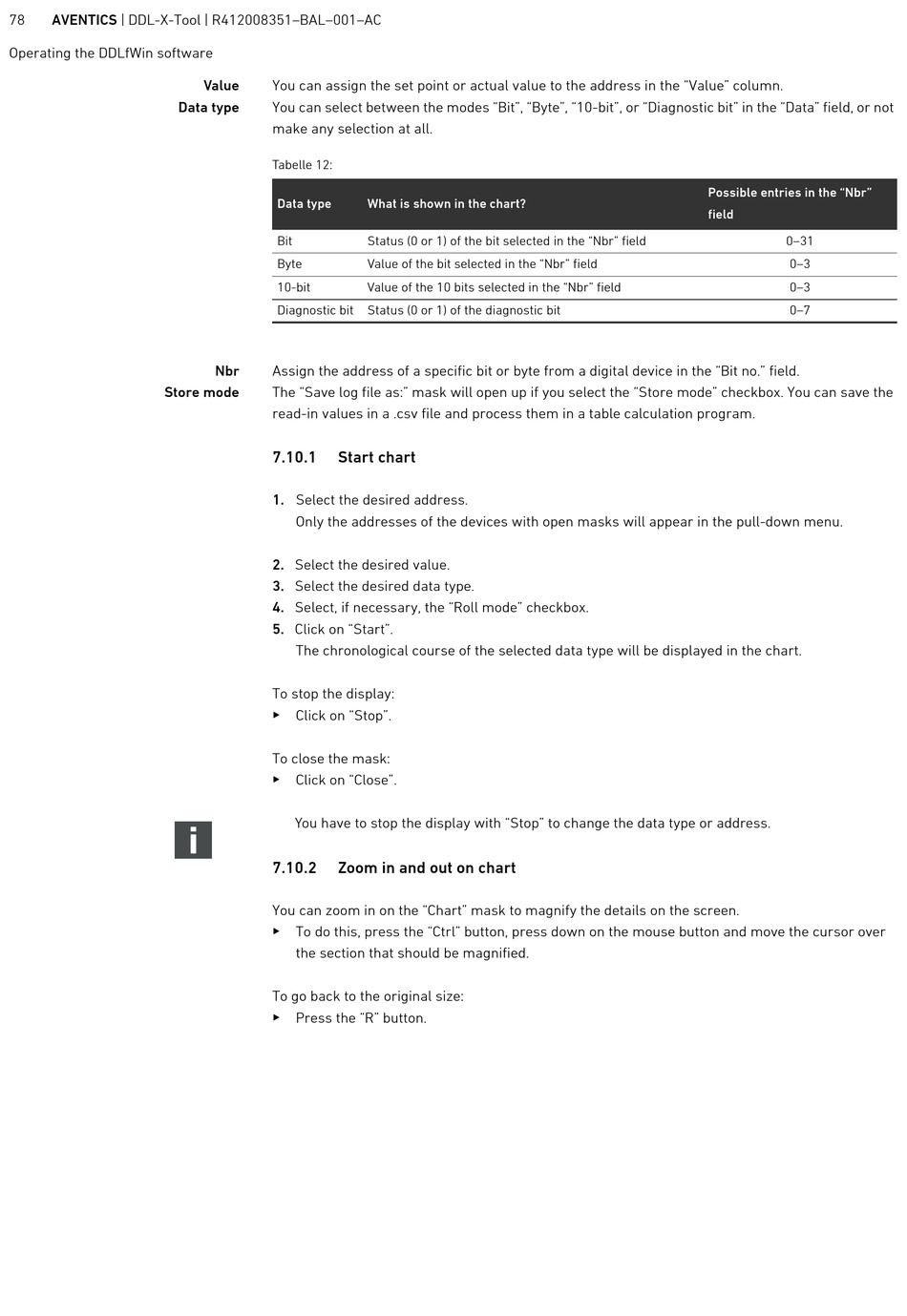

78 AVENTICS | DDL-X-Tool | R412008351–BAL–001–AC
Operating the DDLfWin software
Data type
Store mode
Value You can assign the set point or actual value to the address in the "Value" column.
You can select between the modes "Bit", "Byte", "10-bit", or "Diagnostic bit" in the "Data" field, or not
make any selection at all.
Tabelle 12:
Data type What is shown in the chart?
Bit Status (0 or 1) of the bit selected in the "Nbr" field
Byte Value of the bit selected in the "Nbr" field
10-bit Value of the 10 bits selected in the "Nbr" field
Diagnostic bit Status (0 or 1) of the diagnostic bit
Nbr Assign the address of a specific bit or byte from a digital device in the "Bit no." field.
The "Save log file as:" mask will open up if you select the "Store mode" checkbox. You can save the
read-in values in a .csv file and process them in a table calculation program.
7.10.1 Start chart
1. Select the desired address.
Only the addresses of the devices with open masks will appear in the pull-down menu.
2. Select the desired value.
3. Select the desired data type.
4. Select, if necessary, the "Roll mode" checkbox.
5. Click on "Start".
The chronological course of the selected data type will be displayed in the chart.
To stop the display:
Click on "Stop".
To close the mask:
Click on "Close".
You have to stop the display with "Stop" to change the data type or address.
7.10.2 Zoom in and out on chart
You can zoom in on the "Chart" mask to magnify the details on the screen.
To do this, press the "Ctrl" button, press down on the mouse button and move the cursor over
the section that should be magnified.
To go back to the original size:
Press the "R" button.
Possible entries in the "Nbr"
field
0–31
0–3
0–3
0–7
