70 AVENTICS | DDL-X-Tool | R412008351–BAL–001–AC
Operating the DDLfWin software
Left section
Diagnosis
Entry options
Signal lamps

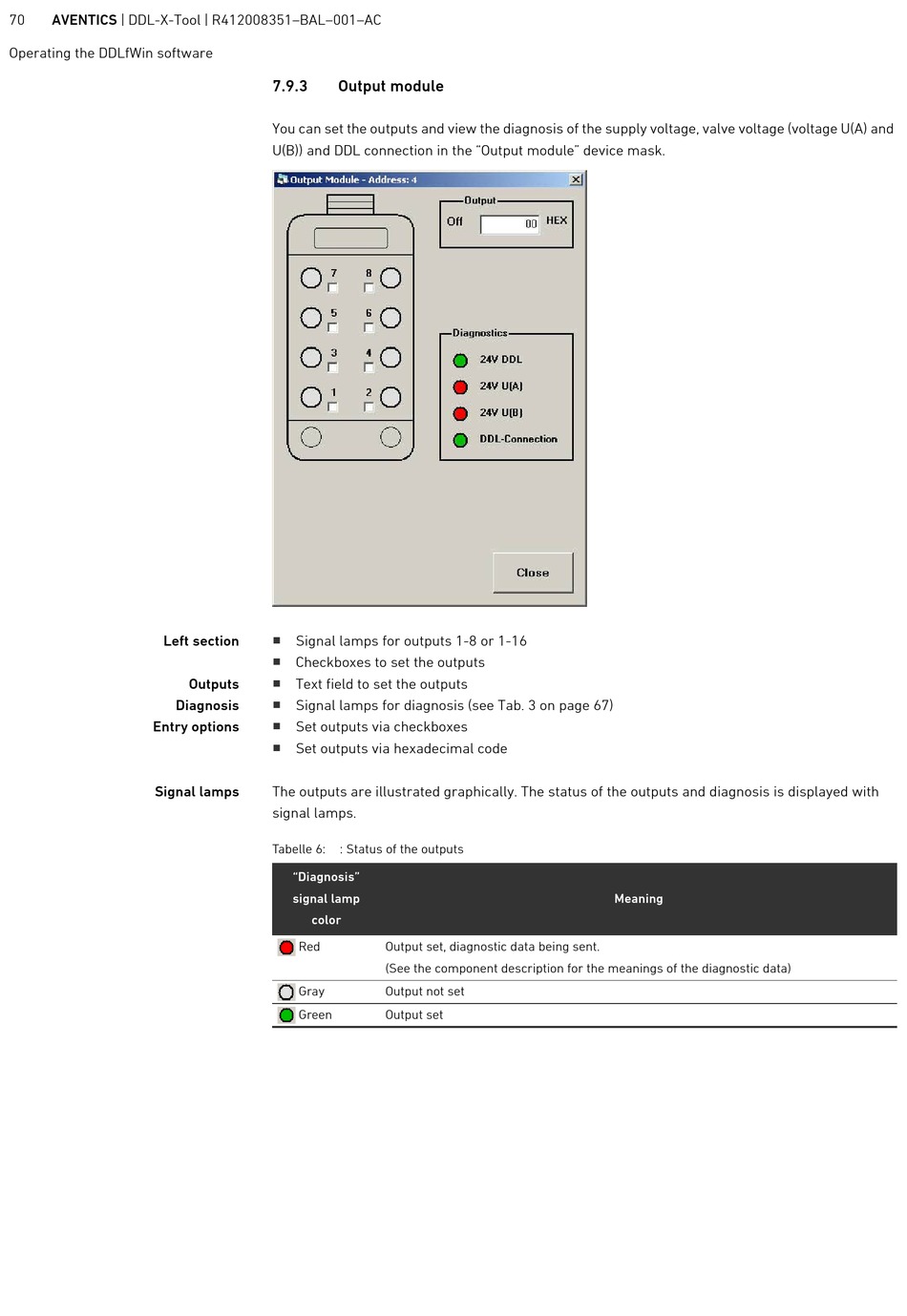

7.9.3 Output module
You can set the outputs and view the diagnosis of the supply voltage, valve voltage (voltage U(A) and
U(B)) and DDL connection in the "Output module" device mask.
Signal lamps for outputs 1-8 or 1-16
Checkboxes to set the outputs
Outputs Text field to set the outputs
Signal lamps for diagnosis (see Tab. 3 on page 67)
Set outputs via checkboxes
Set outputs via hexadecimal code
The outputs are illustrated graphically. The status of the outputs and diagnosis is displayed with
signal lamps.
Tabelle 6: : Status of the outputs
"Diagnosis"
signal lamp
color
Red
Gray
Green
Output set, diagnostic data being sent.
(See the component description for the meanings of the diagnostic data)
Output not set
Output set
Meaning
