72 AVENTICS | DDL-X-Tool | R412008351–BAL–001–AC
Operating the DDLfWin software
Left section
Diagnosis
Entry options
Signal lamps

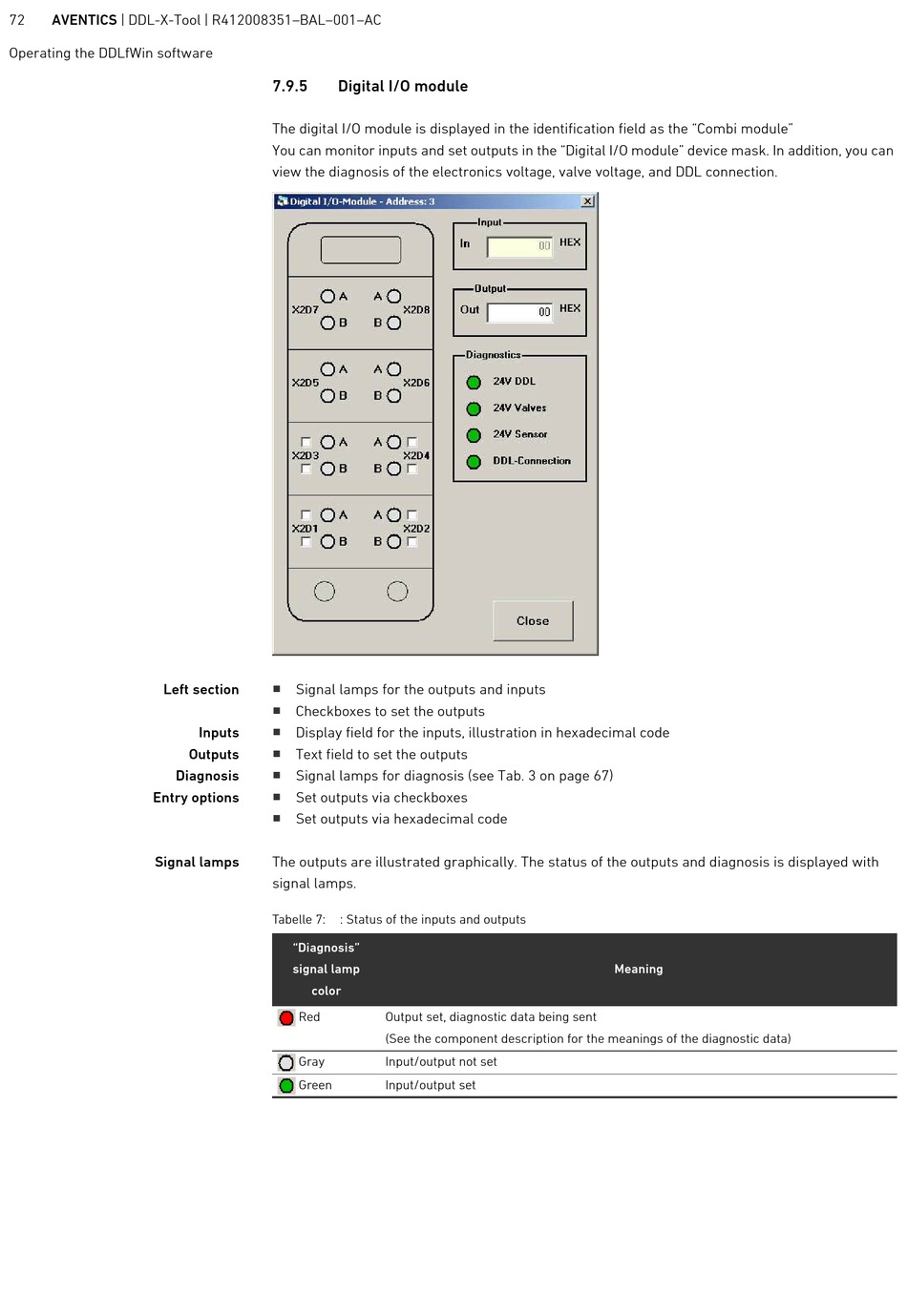

7.9.5 Digital I/O module
The digital I/O module is displayed in the identification field as the "Combi module"
You can monitor inputs and set outputs in the "Digital I/O module" device mask. In addition, you can
view the diagnosis of the electronics voltage, valve voltage, and DDL connection.
Signal lamps for the outputs and inputs
Checkboxes to set the outputs
Inputs Display field for the inputs, illustration in hexadecimal code
Outputs Text field to set the outputs
Signal lamps for diagnosis (see Tab. 3 on page 67)
Set outputs via checkboxes
Set outputs via hexadecimal code
The outputs are illustrated graphically. The status of the outputs and diagnosis is displayed with
signal lamps.
Tabelle 7: : Status of the inputs and outputs
"Diagnosis"
signal lamp
color
Red
Gray
Green
Output set, diagnostic data being sent
(See the component description for the meanings of the diagnostic data)
Input/output not set
Input/output set
Meaning
