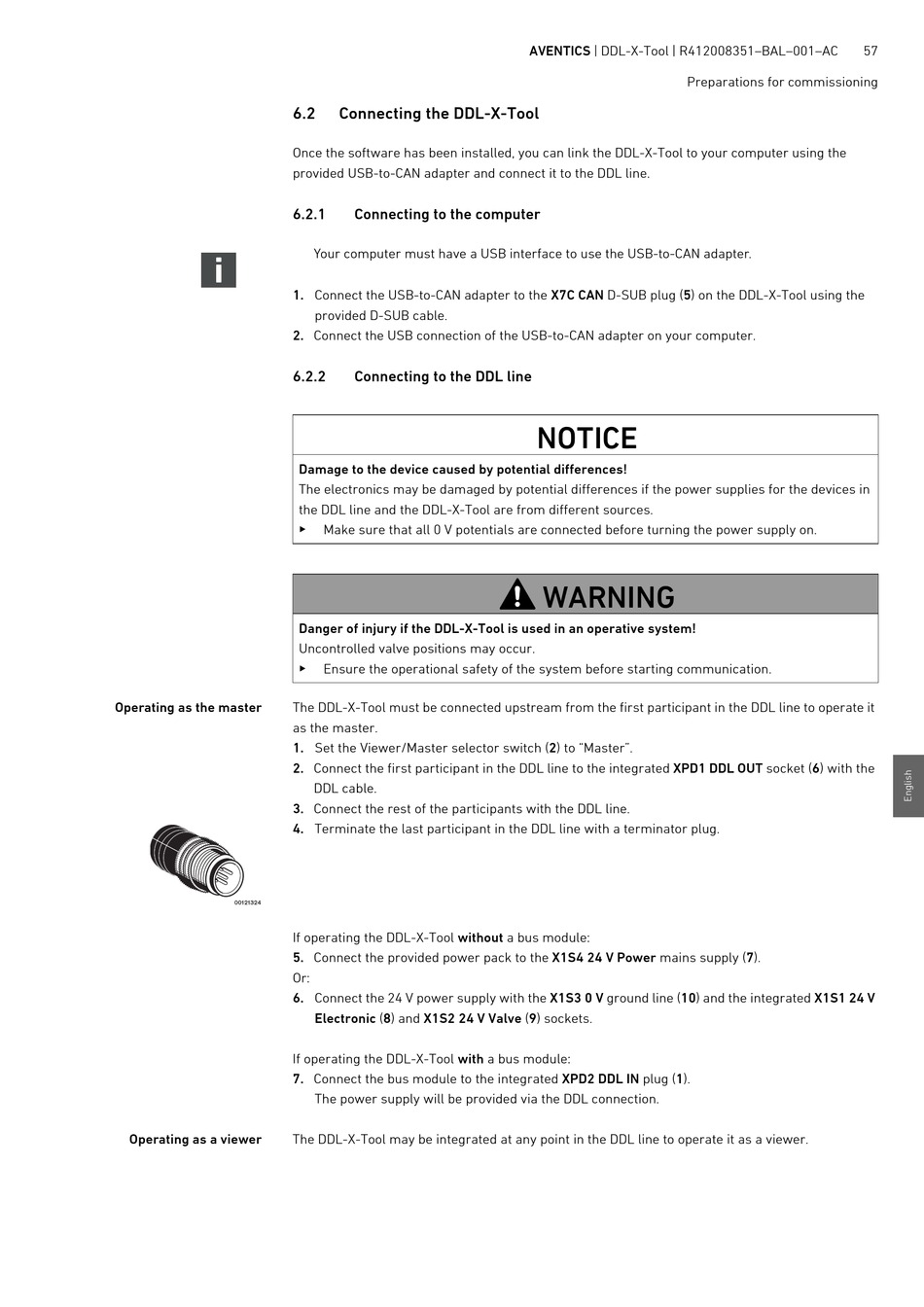

Connecting the DDL-X-Tool

Once the software has been installed, you can link the DDL-X-Tool to your computer using the
provided USB-to-CAN adapter and connect it to the DDL line.
6.2.1 Connecting to the computer
Your computer must have a USB interface to use the USB-to-CAN adapter.
1. Connect the USB-to-CAN adapter to the X7C CAN D-SUB plug (5) on the DDL-X-Tool using the
provided D-SUB cable.
2. Connect the USB connection of the USB-to-CAN adapter on your computer.
6.2.2 Connecting to the DDL line
Damage to the device caused by potential differences!
The electronics may be damaged by potential differences if the power supplies for the devices in
the DDL line and the DDL-X-Tool are from different sources.
Make sure that all 0 V potentials are connected before turning the power supply on.
Danger of injury if the DDL-X-Tool is used in an operative system!
Uncontrolled valve positions may occur.
Ensure the operational safety of the system before starting communication.
The DDL-X-Tool must be connected upstream from the first participant in the DDL line to operate it
as the master.
1. Set the Viewer/Master selector switch (2) to "Master".
2. Connect the first participant in the DDL line to the integrated XPD1 DDL OUT socket (6) with the
DDL cable.
3. Connect the rest of the participants with the DDL line.
4. Terminate the last participant in the DDL line with a terminator plug.
If operating the DDL-X-Tool without a bus module:
5. Connect the provided power pack to the X1S4 24 V Power mains supply (7).
Or:
6. Connect the 24 V power supply with the X1S3 0 V ground line (10) and the integrated X1S1 24 V
Electronic (8) and X1S2 24 V Valve (9) sockets.
If operating the DDL-X-Tool with a bus module:
7. Connect the bus module to the integrated XPD2 DDL IN plug (1).
The power supply will be provided via the DDL connection.
The DDL-X-Tool may be integrated at any point in the DDL line to operate it as a viewer.
