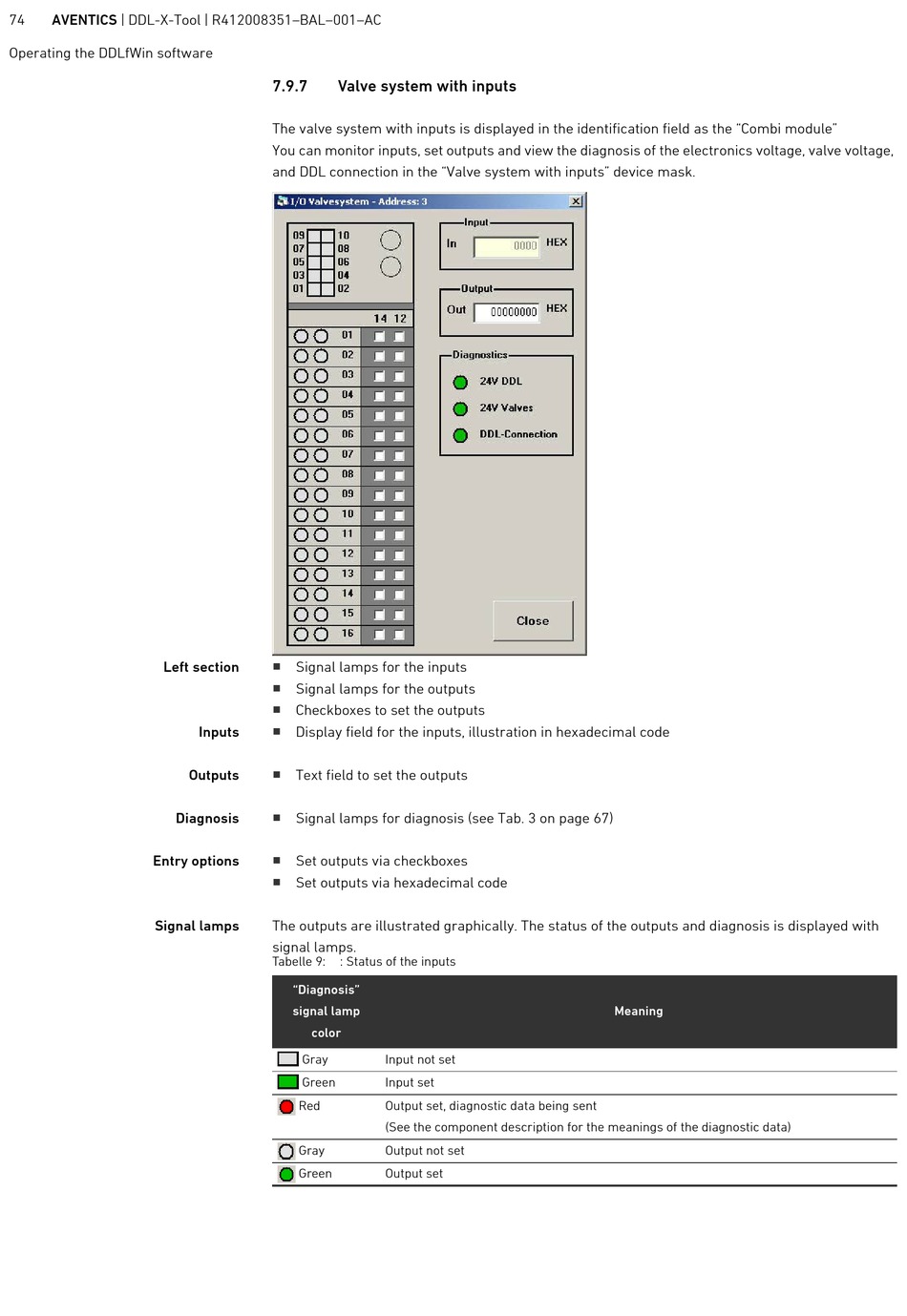

7.9.7 Valve system with inputs
The valve system with inputs is displayed in the identification field as the "Combi module"
You can monitor inputs, set outputs and view the diagnosis of the electronics voltage, valve voltage,
and DDL connection in the "Valve system with inputs" device mask.
Signal lamps for the inputs
Signal lamps for the outputs
Checkboxes to set the outputs
Inputs Display field for the inputs, illustration in hexadecimal code
Outputs Text field to set the outputs
Signal lamps for diagnosis (see Tab. 3 on page 67)
Set outputs via checkboxes
Set outputs via hexadecimal code
The outputs are illustrated graphically. The status of the outputs and diagnosis is displayed with
signal lamps.
Tabelle 9: : Status of the inputs
"Diagnosis"
signal lamp
color
Gray
Green
Red
Gray
Green
Input not set
Input set
Output set, diagnostic data being sent
(See the component description for the meanings of the diagnostic data)
Output not set
Output set
Meaning
