68 AVENTICS | DDL-X-Tool | R412008351–BAL–001–AC
Operating the DDLfWin software
Entry options
Signal lamps
Diagnostic data
7.9

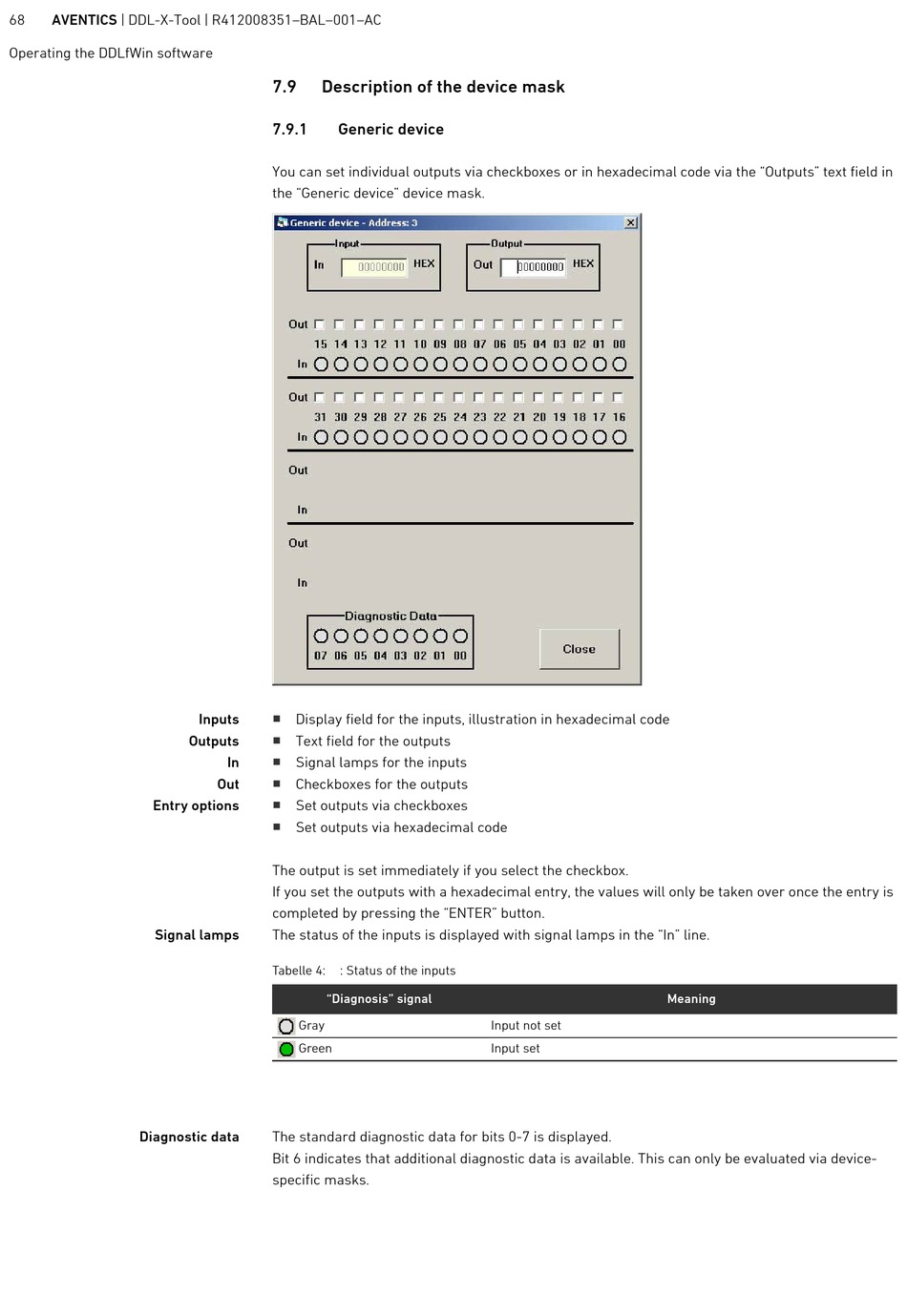

Description of the device mask

7.9.1 Generic device
You can set individual outputs via checkboxes or in hexadecimal code via the "Outputs" text field in
the "Generic device" device mask.
Inputs Display field for the inputs, illustration in hexadecimal code
Outputs Text field for the outputs
In Signal lamps for the inputs
Out Checkboxes for the outputs
Set outputs via checkboxes
Set outputs via hexadecimal code
The output is set immediately if you select the checkbox.
If you set the outputs with a hexadecimal entry, the values will only be taken over once the entry is
completed by pressing the "ENTER" button.
The status of the inputs is displayed with signal lamps in the "In" line.
Tabelle 4: : Status of the inputs
"Diagnosis" signal
Gray
Green
The standard diagnostic data for bits 0-7 is displayed.
Bit 6 indicates that additional diagnostic data is available. This can only be evaluated via device-
specific masks.
Input not set
Input set
Meaning
