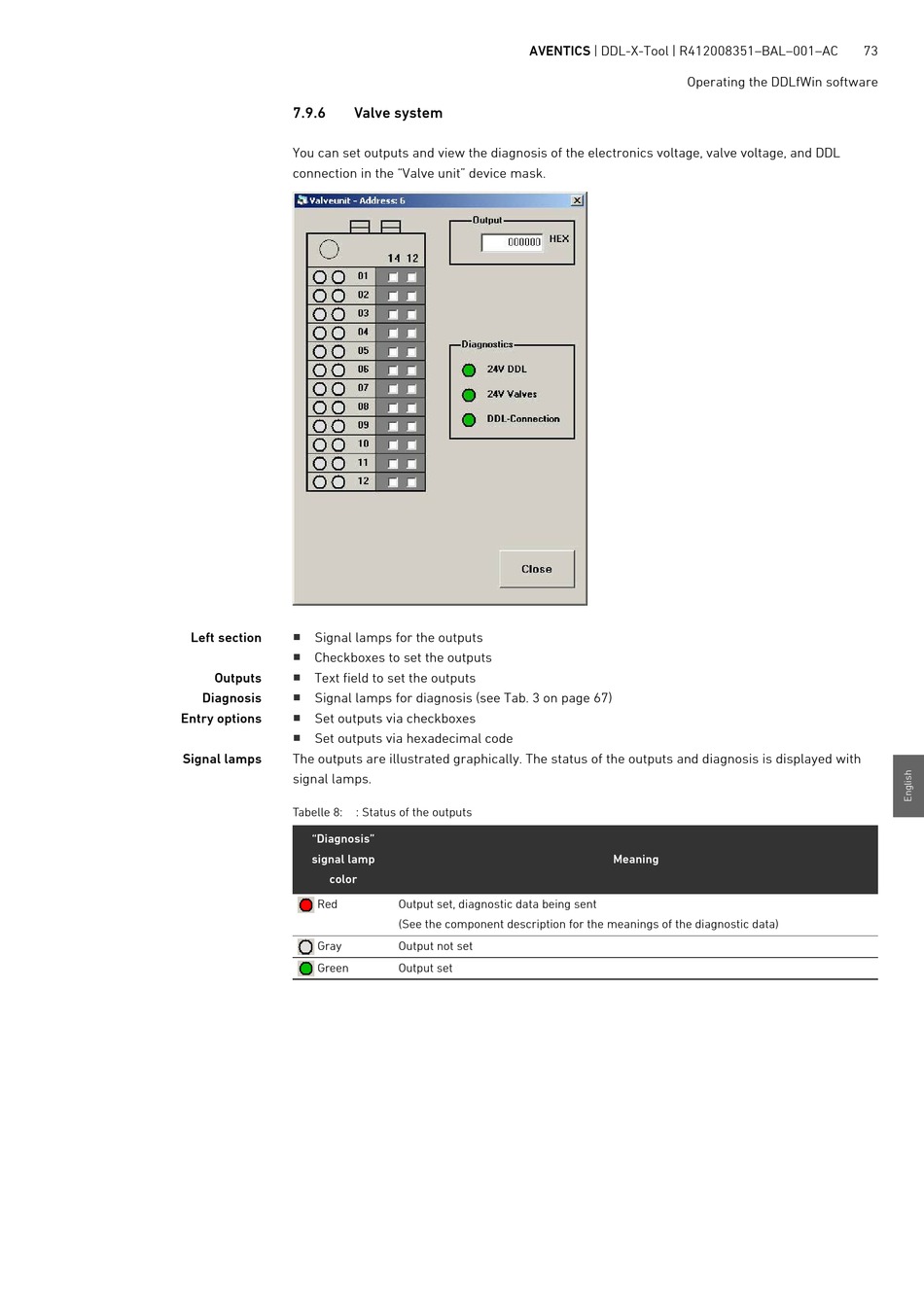

7.9.6 Valve system
You can set outputs and view the diagnosis of the electronics voltage, valve voltage, and DDL
connection in the "Valve unit" device mask.
Left section Signal lamps for the outputs
Checkboxes to set the outputs
Outputs Text field to set the outputs
Diagnosis Signal lamps for diagnosis (see Tab. 3 on page 67)
Entry options Set outputs via checkboxes
Set outputs via hexadecimal code
Signal lamps The outputs are illustrated graphically. The status of the outputs and diagnosis is displayed with
signal lamps.
Tabelle 8:
"Diagnosis"
signal lamp
color
Red
Gray
Green
AVENTICS | DDL-X-Tool | R412008351–BAL–001–AC
: Status of the outputs
Output set, diagnostic data being sent
(See the component description for the meanings of the diagnostic data)
Output not set
Output set
Operating the DDLfWin software
Meaning
