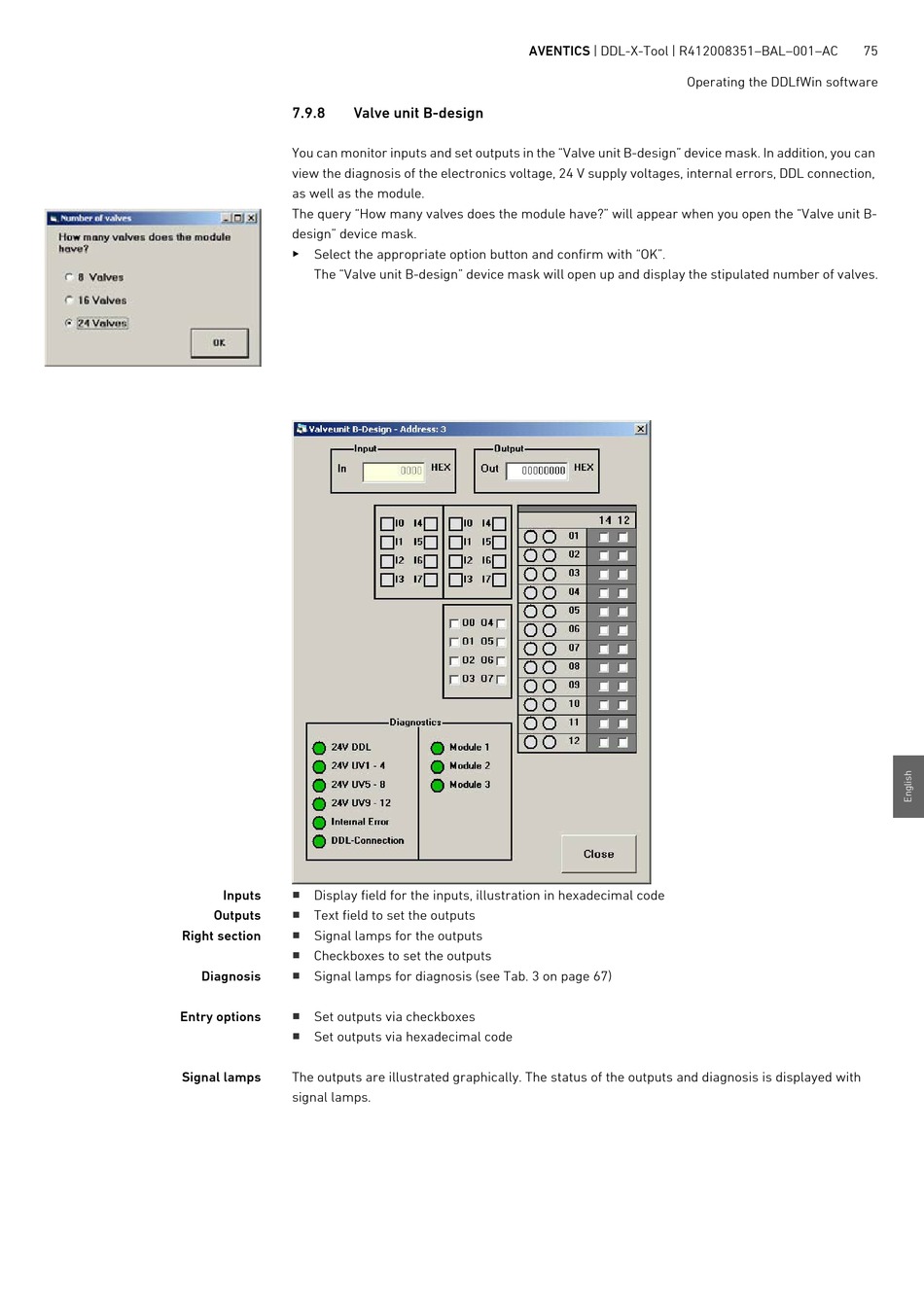

7.9.8 Valve unit B-design
You can monitor inputs and set outputs in the "Valve unit B-design" device mask. In addition, you can
view the diagnosis of the electronics voltage, 24 V supply voltages, internal errors, DDL connection,
as well as the module.
The query "How many valves does the module have?" will appear when you open the "Valve unit B-
design" device mask.
Select the appropriate option button and confirm with "OK".
The "Valve unit B-design" device mask will open up and display the stipulated number of valves.
Inputs Display field for the inputs, illustration in hexadecimal code
Outputs Text field to set the outputs
Right section Signal lamps for the outputs
Checkboxes to set the outputs
Diagnosis Signal lamps for diagnosis (see Tab. 3 on page 67)
Entry options Set outputs via checkboxes
Set outputs via hexadecimal code
Signal lamps The outputs are illustrated graphically. The status of the outputs and diagnosis is displayed with
signal lamps.
