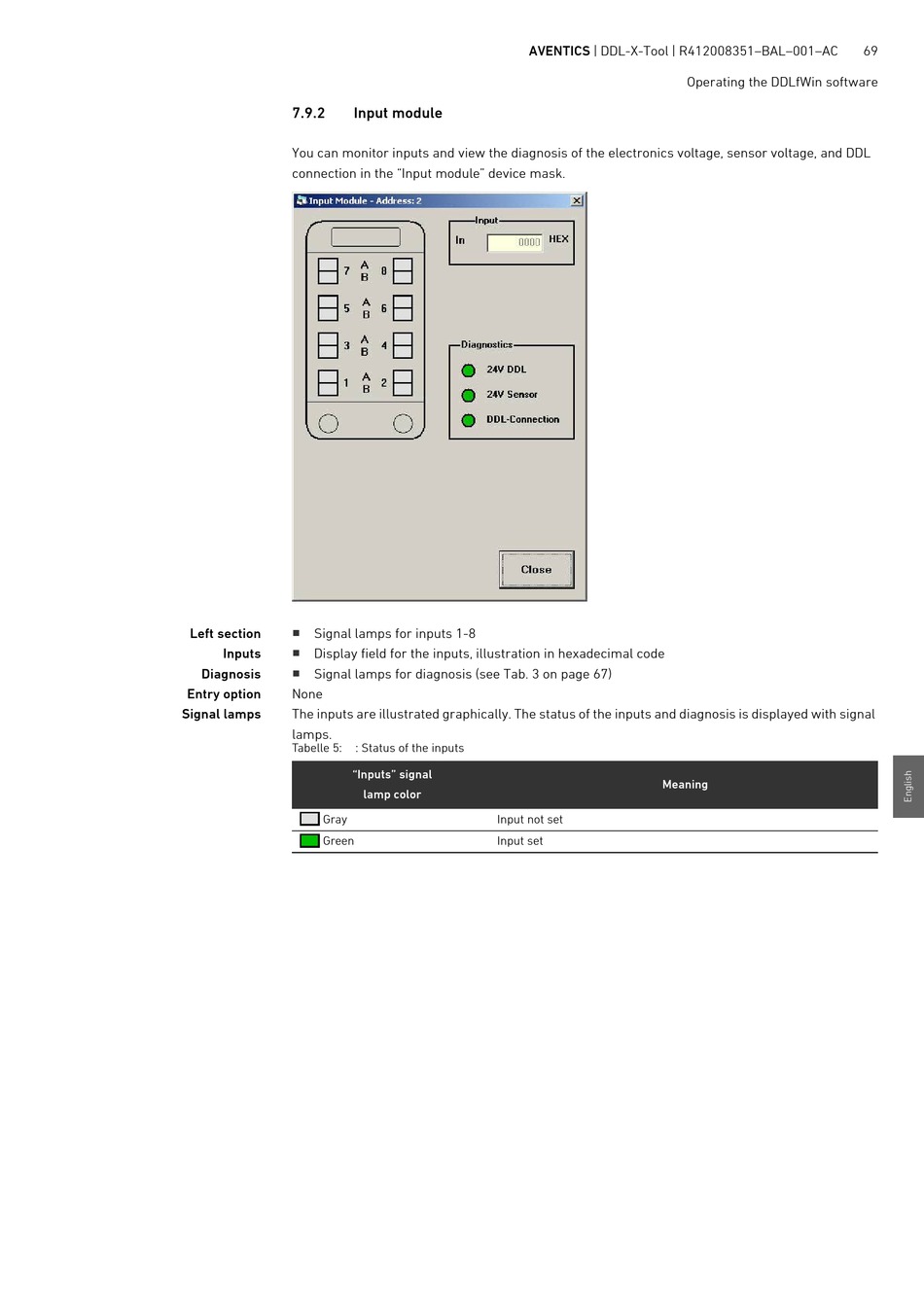

7.9.2
Input module
You can monitor inputs and view the diagnosis of the electronics voltage, sensor voltage, and DDL
connection in the "Input module" device mask.
Left section
Signal lamps for inputs 1-8
Inputs
Display field for the inputs, illustration in hexadecimal code
Diagnosis
Signal lamps for diagnosis (see Tab. 3 on page 67)
Entry option
None
Signal lamps
The inputs are illustrated graphically. The status of the inputs and diagnosis is displayed with signal
lamps.
Tabelle 5:
: Status of the inputs
"Inputs" signal
Gray
Green
AVENTICS | DDL-X-Tool | R412008351–BAL–001–AC
lamp color
Input not set
Input set
Operating the DDLfWin software
Meaning
69
