To change the values of a pump there are two options:
• Click on the value on the pump symbol in the process picture.
Result: The Settings panel opens.
• Click Pumps in the Settings panel.
The flow can be set using the following three units: L/h or L/min or %. The % scaling is
based on the RPM value of the respective pump. When a specific % value is out of limit
of the pump range, a message is shown on the process picture.
Valves
To toggle the valves position between open and close:
• Click on the valve symbol in the process picture.

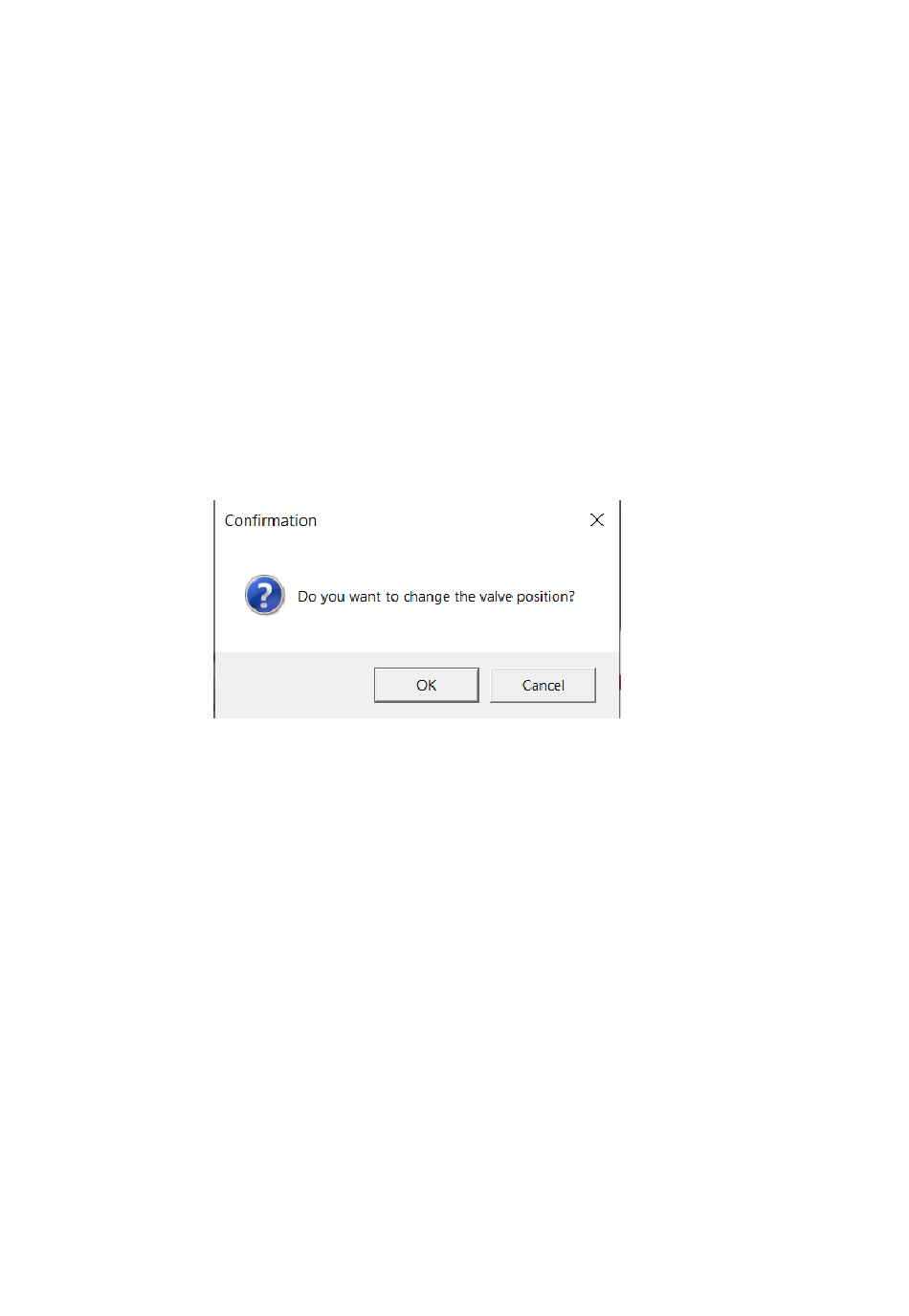

Result: A confirmation dialog is displayed. After confirmation, the valve position is
changed.
To change the values of the pressure control valve there are two options:
• Click on the symbol of the pressure control valve in the process picture.
Result: The Settings panel opens.
• Click PCV in the Settings panel.
Sensors
The locations of the sensors are hidden in the process picture. To show the location of a
sensor:
• Point to the value of the sensor in the process picture.
Result: The sensor symbol is displayed in the process picture where the sensor is
located.
