  • Page 1 ReadyToProcess foldable bins Instructions for Use cytiva.com...

  • Page 2: Table Of Contents

    Disassembling the bin ......................36 Moving the bin ..........................39 Storing bins ..........................40 Returning empty bins ....................... 41 Maintenance ..................42 Reference information ................43 Specifications ..........................44 Ordering information ....................... 45 ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 3: Introduction

    ReadyToProcess™ foldable bins are holders that mechanically support and enhance the use of ReadyToProcess disposable bags. The ReadyToProcess foldable bins are available in two sizes to fit disposable bags with 100 L, 200 L, 500 L, and 1000 L working volumes.

  • Page 4: Safety Information

    It is important not to proceed until all stated conditions are met and clearly understood. NOTICE NOTICE indicates instructions that must be followed to avoid damage to the product or other equipment. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 5 CAUTION Do not fill the bin with liquid if the liquid temperature is outside the temperature range for the bag. Refer to the corresponding bag specifications for detailed information. ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 6: System Description

    System description About this chapter This chapter provides a description of the system and its component parts. In this chapter Section See page System overview Foldable bins Dolly ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 7: System Overview

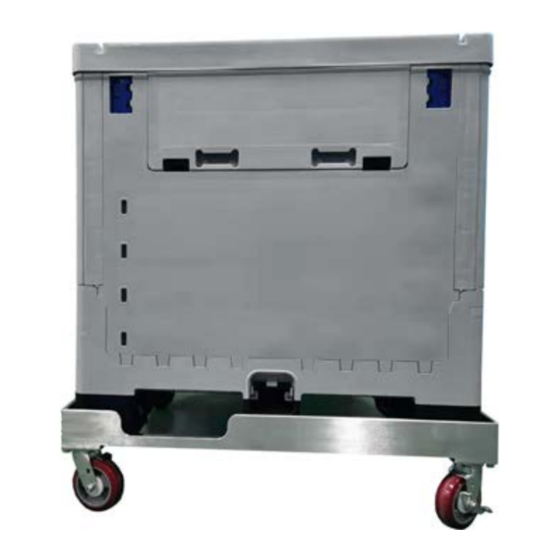

    System overview Introduction The ReadyToProcess foldable bins are composed by a bin, which is assembled on a dolly to facilitate operation and transport. Illustration of the system Part Description Foldable bin Dolly ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 8: Foldable Bins

    Foldable bins Description of the foldable bins The ReadyToProcess foldable bins are used for the storage of liquid contents in dispos- able bags. The bins are available in two sizes, for use with bags of compatible volumes, as specified below.
  • Page 9 Drop-door handle Drain hole (not used) Feet, nine in total. Lid handle, with locking function. Inserts Inserts should be installed in the foldable bins, for appropriate fitting of the bags to the bins. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 10 The tubing adapter is provided with the foldable bins. The tubing adapter is installed on the discharge hole at the bottom of the bin, for appropriate fitting of the tubing. Part Description Insert for large tubing Insert for thin tubing ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 11: Dolly

    Dolly Description The dolly allows for easier operation and transport of the ReadyToProcess bins. The dolly is available in two sizes, for use with the coresponding bin, as specified below. Dolly 100 L/200 L dolly 100 L/200 L foldable bin...

  • Page 12: Installation

    This chapter provides information on how to assemble a bin and how to install a bag in the bin. In this chapter Section See page Delivery and storage Preparing the dolly Assembling the bin Opening the bin Installing a bag ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 13: Delivery And Storage

    Storage requirements The delivery boxes should be stored at a protected place indoors. The storage place for unopened boxes must meet the following requirement: Parameter Allowed range Ambient temperature, storage 2°C to 45°C ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 14: Preparing The Dolly

    To lock the caster wheels, press the locking mechanism to the ON position. To unlock the caster wheels, press the locking mechanism to the OFF position. ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 15: Assembling The Bin

    Using two persons on opposite sides of the bin, lift the bin from the bottom. Place the bin on the dolly, with the drain hole of the bin facing the window on the dolly. Note: The bin can be installed on the dolly assembled and disassembled. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 16 Assemble the 100 L/200 L foldable bin Step Action Open all locking tabs on the lid. Remove the lid from the top of the folded bin. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 17 • wall 3 – 4 • walls 1 – 2 Place the lid on top of the unfolded bin. Press down each corner of the lid for appropriate fitting to the bin. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 18 Step Action Close all locking tabs on the lid. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 19 Assemble the 500 L/1000 L foldable bin Step Action Remove the lid from the top of the folded bin. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 20 Pull the remaining walls to an upright position in the following order: • wall 3 • wall 2 • wall 1 Note: Make sure the locking clips in wall 1 clip into place. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 21 Move the handles on the lid to the closed position. a. Rotate the handle upwards (1). b. Slide the handle to the closed position (2). c. Rotate the handle downwards (3). ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 22: Opening The Bin

    Lift the lid to remove it. Open the drop-door The drop-door is a feature on wall 1 of the 500 L/1000 L foldable bin. Follow the instruc- tions below to open the drop-door. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 23 Step Action Open both latches on wall 1. Push the drop-door upwards from the handles. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 24 Step Action Rotate the door outwards. ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 25: Installing A Bag

    Installing a bag Introduction The ReadyToProcess foldable bins, can be used with 100 L, 200 L, 500 L, and 1000 L bags. For appropriate fitting of the bags, inserts should be installed in the bin prior to installation of the bag.
  • Page 26 Place the second large insert against wall 4. Adjust its position so that the thinner side of the insert is in contact with wall 1. Note: Make sure the smooth face of the insert is facing inwards. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 27 Note: If you are using the 500 L/1000 L bin, open the drop-door to facilitate the installation of the bag. See Open the drop-door, on page 22 for detailed instructions. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 28 Remove the tubing adapter and pass the tubing through the discharge hole. Partially pull the tubing from under the bin, through the dolly window. Secure the tubing to the tubing insert on the dolly. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 29 Fit the tubing adapter to the tubing and place the adapter on the discharge hole. Press the bag flat on the bottom of the bin. Adjust the tubing from under the bin as needed and make sure the adapter and tubing remain in place. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 30 The drop-door is a feature on wall 1 of the 500 L/1000 L foldable bin. Follow the instruc- tions below to close the drop-door. Step Action Lift the drop-door to an upright position. Press the drop-door down. Close the latches. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 31 (Optional) Insert cable ties through the holes on the drop-door. Note: Perform this step as an extra security measure to secure the drop-door, if the liquid volume in the bag is expected to go above the drop-door hinges. ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 32: Operation

    This chapter provides information to safely operate the bins. In this chapter Section See page Filling the bag Emptying the bag Removing the bag Disassembling the bin Moving the bin Storing bins Returning empty bins ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 33: Filling The Bag

    1000 L 7% above the bag nominal volume (i.e., 1070 L). Fill a bag installed on the bin To fill a bag installed on the bin, follow the corresponding instructions for the bag. ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 34: Emptying The Bag

    Emptying the bag The ReadyToProcess bins are emptied through the discharge hole at the bottom of the bin. The bins can be emptied by gravity or with the assistance of a pump. To empty the bag, follow the corresponding instructions for the bag.

  • Page 35: Removing The Bag

    Remove the tubing adapter and pass the tubing through the discharge hole. Place the adapter into the discharge hole. Fold all sides of the bag and remove it from the bin. Dispose of the bag according to your procedures and local regulations. ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 36: Disassembling The Bin

    Remove any inserts installed on the bin. Push wall 1 inwards. Note: If using the 500 L/1000 L foldable bin, simultaneously press both locking clips on wall 1 to unlock and slightly push the wall inwards. ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 37 Step Action Lower the wall onto the base. to fold down wall 2. Repeat the steps step 3 step 4 ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 38 If using the 500 L/1000 L bin, align the handles on the lid with the hinges from walls 3 and 4. Note: Do not pull the disassembled bin from the lid handles. The lid does not lock to the folded bin. ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 39: Moving The Bin

    CAUTION Do not move or transport stacked bins. ReadyToProcess foldable bins can be moved within your facility, assembled or disas- sembled, using the corresponding dolly. To transport disassembled bins over longer distances, use a forklift. ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 40: Storing Bins

    Storing bins Storage of bins The ReadyToProcess foldable bins can be stored in stacks, if the bins are disassembled. CAUTION Do not stack assembled bins. CAUTION To avoid tipping or sliding of the bins, make sure that stacked bins are properly aligned and do not stack bins of different types.

  • Page 41: Returning Empty Bins

    Returning empty bins To return an empty bin, make sure the bin has been properly disassembled and follow the recommendations in Section 5.5 Moving the bin, on page ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 42: Maintenance

    Maintenance About this chapter This chapter provides information on how to clean the bins. The ReadyToProcess fold- able bins can be cleaned manually or using a washing machine. Clean manually Before cleaning the bin manually, make sure that the bag and inserts have been removed, and that the bin is disassembled.

  • Page 43: Reference Information

    Reference information About this chapter This chapter contains the technical specifications of the ReadyToProcess foldable bins. The chapter also includes ordering information. In this chapter Section See page Specifications Ordering information ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 44: Specifications

    External dimensions, with lid (W × D × H) 1065 × 1045 × 940 mm Internal dimensions (W × D × H) Folded height (disassembled) 450 mm Weight 88.5 kg Operational temperature 2°C to 45°C ReadyToProcess foldable bins Instructions for Use 29660357 AA...

  • Page 45: Ordering Information

    200 L 2×0.5 IN PORT 3 FT CF 4PK (SE) 29298855 100 L 2×0.5 IN PORT 3 FT CF 5PK (RM) 29260189 100 L 2×0.5 IN PORT 3 FT CF 5PK (SE) 29298665 ReadyToProcess foldable bins Instructions for Use 29660357 AA...
  • Page 46 © 2021 Cytiva All goods and services are sold subject to the terms and conditions of sale of the supplying company operating within the Cytiva business. A copy of those terms and conditions is available on request. Contact your local Cytiva representative for the most current information.
