4.5.4

Connect compressed air supply

Introduction
This section describes how to connect the compressed air supply.
For requirements on air supply, see
Note:
Connect compressed air supply to
ÄKTA readyflux
Step
1
2
3
ÄKTA readyflux Operating Instructions 29175550 AG
Specified supply of compressed air should be maintained. Inadequate air
supply will cause malfunction of the instrument and may cause hazards.
Action
Check that specified supply of compressed air is available at point of instal-
lation.
Make sure that the supply gauge pressure to the system is between
5.5 to 7 bar. The pressure regulator is set to 6 bar at the factory and must not
be changed.

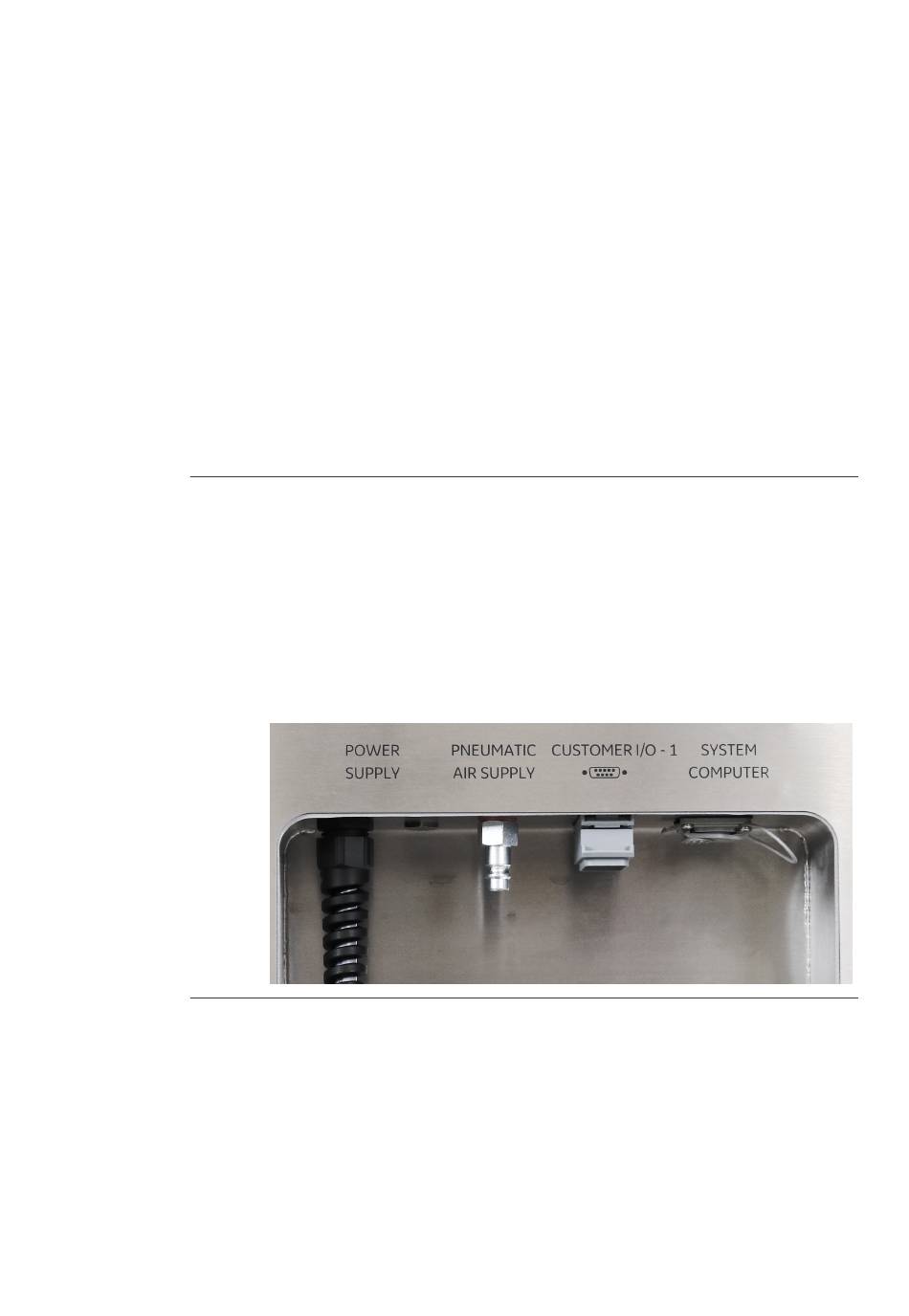

Connect the compressed air supply to the PNEUMATIC AIR SUPPLY on the
right (permeate) side of the instrument. Use the supplied 5 m air hose with
7.5 mm inner diameter.
4.5.4 Connect compressed air supply
