Pump components

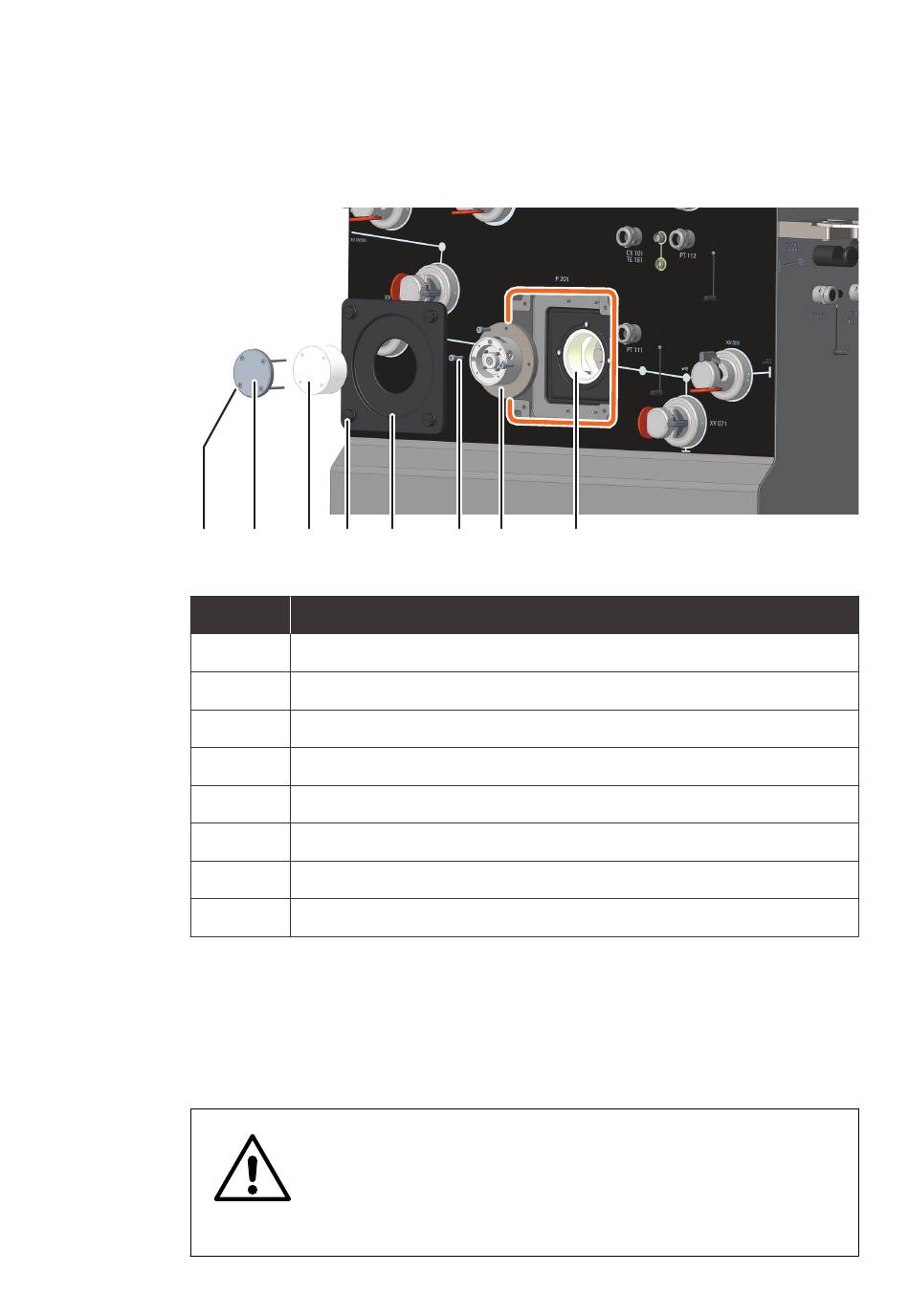

The components of the feed pump (P-201) are shown in the illustration below. The
location of the pump on the system is indicated by the orange frame.
1
Part
1
2
3
4
5
6
7
8
Disassemble the ring drive of QF 1200
SU pump
Follow the steps below to disassemble and remove the ring drive assembly of the QF
1200 SU pump.
ÄKTA readyflux Operating Instructions 29175550 AG
2 3 4 5
Description
M6 screws (4 pcs.) for QF 1200 SU / M4 screws (4 pcs.) for QF 150 SU
Pressure plate
Pump chamber (disposable, part of the flow kit)
M5 thumb screws (4 pcs.)
Pump plate
M6 screws (3 pcs.)
Ring drive assembly
Pump motor sleeve
CAUTION
Risk of crushing injuries. Due to the weight of the ring drive of the
QF 1200 SU pump, the ring drive must be handled with care to
avoid crushing injuries during disassembly and assembly.
6 7
8
