Chapter 2: External Connectors Pinout Description

C 2: e
haPter xternal

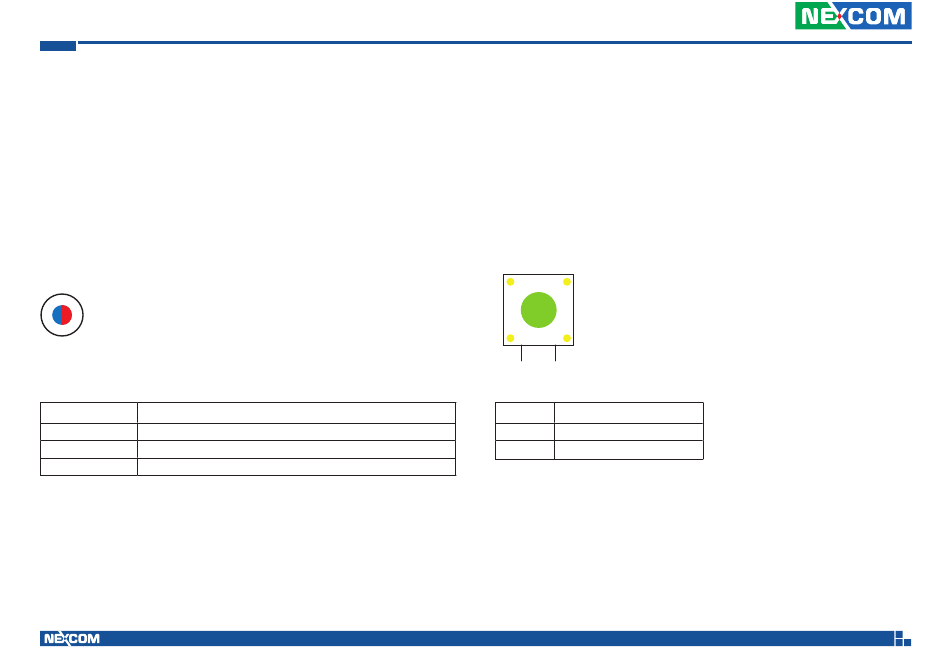

Power LED

Connector number: 1
Color
Blue On Power On
Blue Off Power Off
Red On System power failure
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
C
onneCtors
Behavior
P d
Inout esCrIPtIon

Reset Button

Connector number: 2
1 2
Pin Definition
1 GND
2 RST_BTN#
