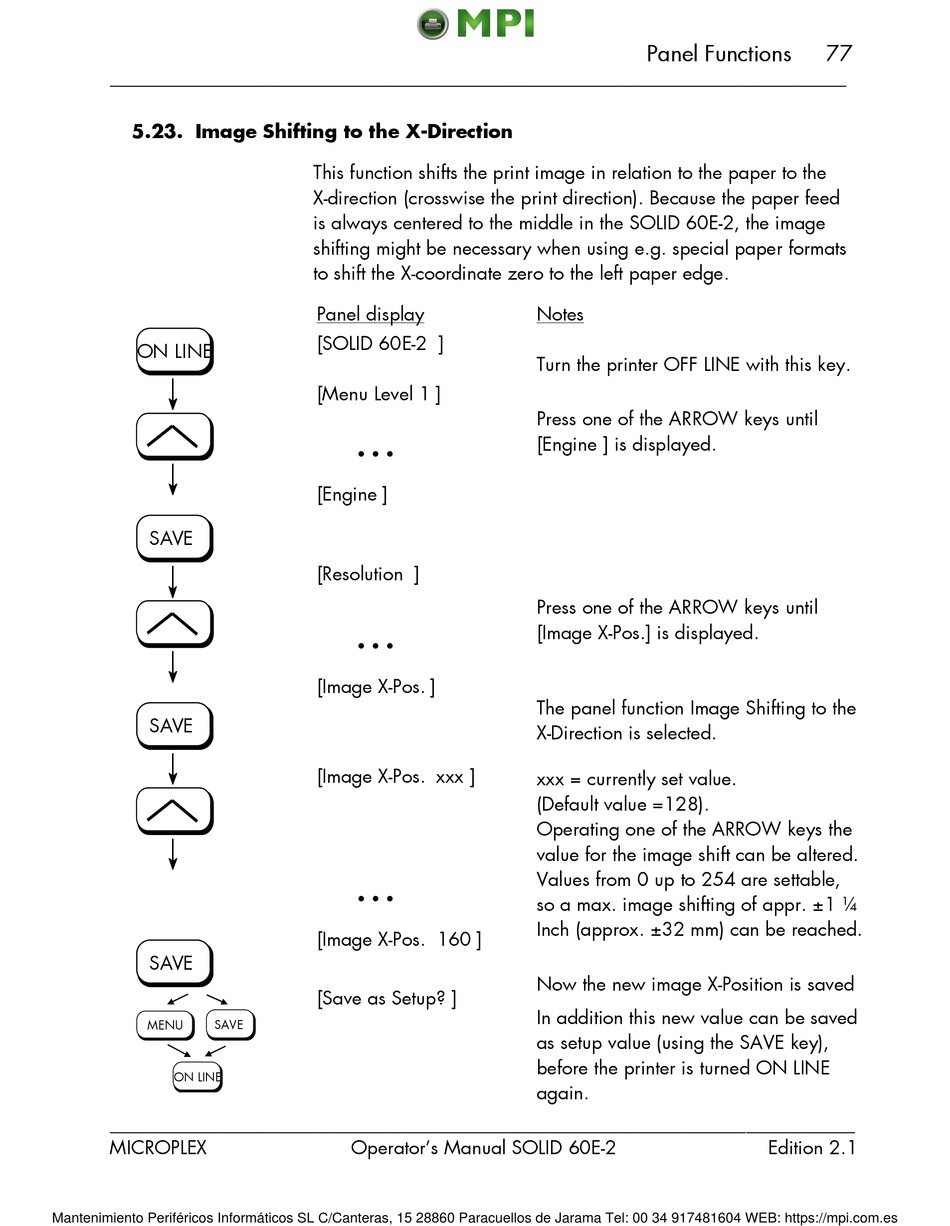

5.23. Image Shifting to the X-Direction

ON LINE
SAVE
SAVE
SAVE
MENU SAVE
ON LINE
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
This function shifts the print image in relation to the paper to the
X-direction (crosswise the print direction). Because the paper feed
is always centered to the middle in the SOLID 60E-2, the image
shifting might be necessary when using e.g. special paper formats
to shift the X-coordinate zero to the left paper edge.
Panel display
[SOLID 60E-2 ]
[Menu Level 1 ]
  
[Engine ]
[Resolution ]
  
[Image X-Pos. ]
[Image X-Pos. xxx ]
  
[Image X-Pos. 160 ]
[Save as Setup? ]
Operator's Manual SOLID 60E-2
Panel Functions
Notes
Turn the printer OFF LINE with this key.
Press one of the ARROW keys until
[Engine ] is displayed.
Press one of the ARROW keys until
[Image X-Pos.] is displayed.
The panel function Image Shifting to the
X-Direction is selected.
xxx = currently set value.
(Default value =128).
Operating one of the ARROW keys the
value for the image shift can be altered.
Values from 0 up to 254 are settable,
so a max. image shifting of appr. ±1 ¼
Inch (approx. ±32 mm) can be reached.
Now the new image X-Position is saved
In addition this new value can be saved
as setup value (using the SAVE key),
before the printer is turned ON LINE
again.
77
Edition 2.1
