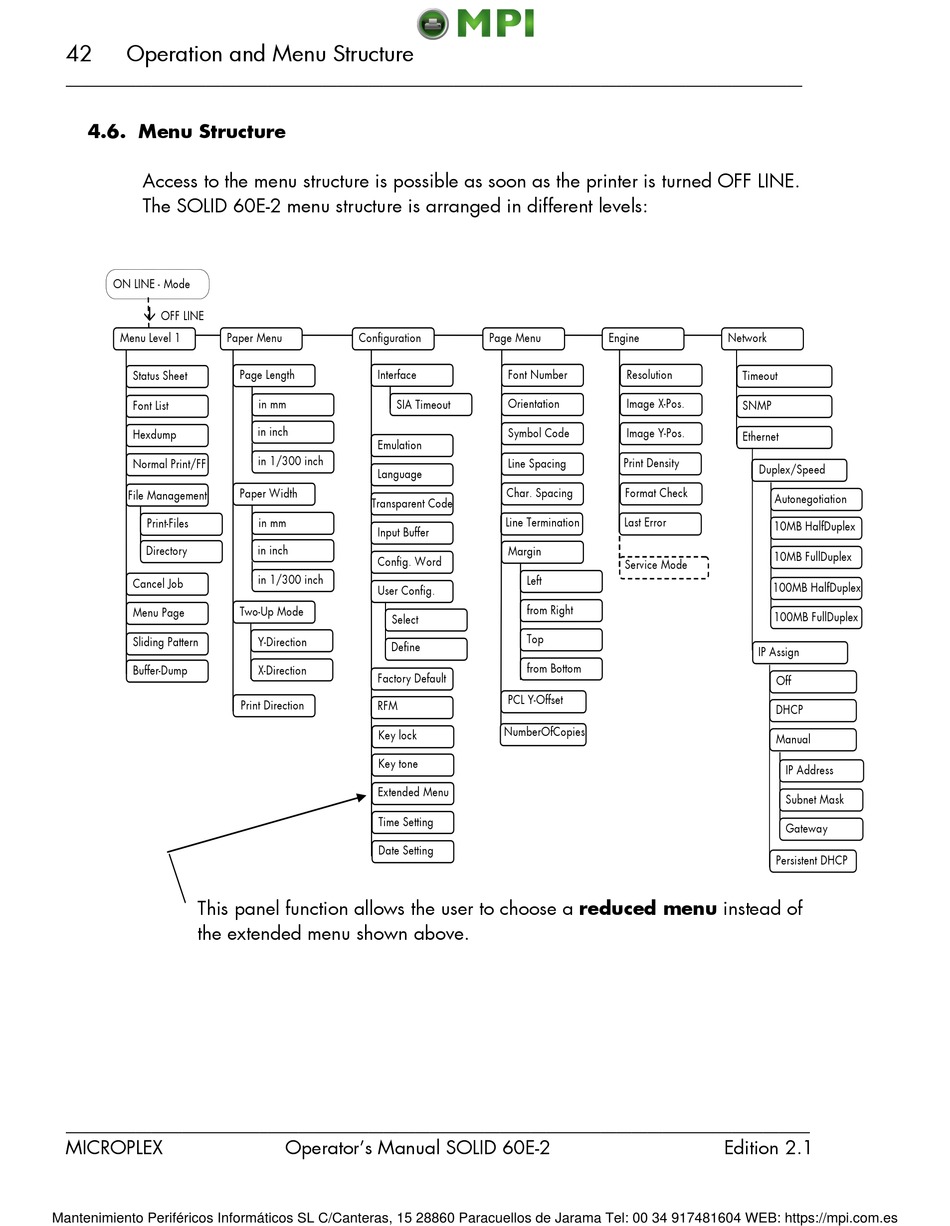

4.6. Menu Structure

Access to the menu structure is possible as soon as the printer is turned OFF LINE.
The SOLID 60E-2 menu structure is arranged in different levels:
ON LINE - Mode

OFF LINE
Menu Level 1 Paper Menu
Status Sheet
Font List
Hexdump
Normal Print/FF
File Management
Print-Files
Directory
Cancel Job
Menu Page
Sliding Pattern
Buffer-Dump
This panel function allows the user to choose a reduced menu instead of
the extended menu shown above.
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
Configuration
Interface
Page Length
in mm
SIA Timeout
in inch
Emulation
in 1/300 inch
Language
Paper Width
Transparent Code
in mm
Input Buffer
in inch
Config. Word
in 1/300 inch
User Config.
Two-Up Mode
Select
Y-Direction
Define
X-Direction
Factory Default
Print Direction RFM
Key lock
Key tone
Extended Menu
Time Setting
Date Setting
Operator's Manual SOLID 60E-2
Page Menu Engine
Font Number Resolution
Orientation Image X-Pos.
Symbol Code Image Y-Pos.
Line Spacing Print Density
Char. Spacing Format Check
Line Termination Last Error
Margin
Service Mode
Left
from Right
Top
from Bottom
PCL Y-Offset
NumberOfCopies
Network
Timeout
SNMP
Ethernet
Duplex/Speed
Autonegotiation
10MB HalfDuplex
10MB FullDuplex
100MB HalfDuplex
100MB FullDuplex
IP Assign
Off
DHCP
Manual
IP Address
Subnet Mask
Gateway
Persistent DHCP
