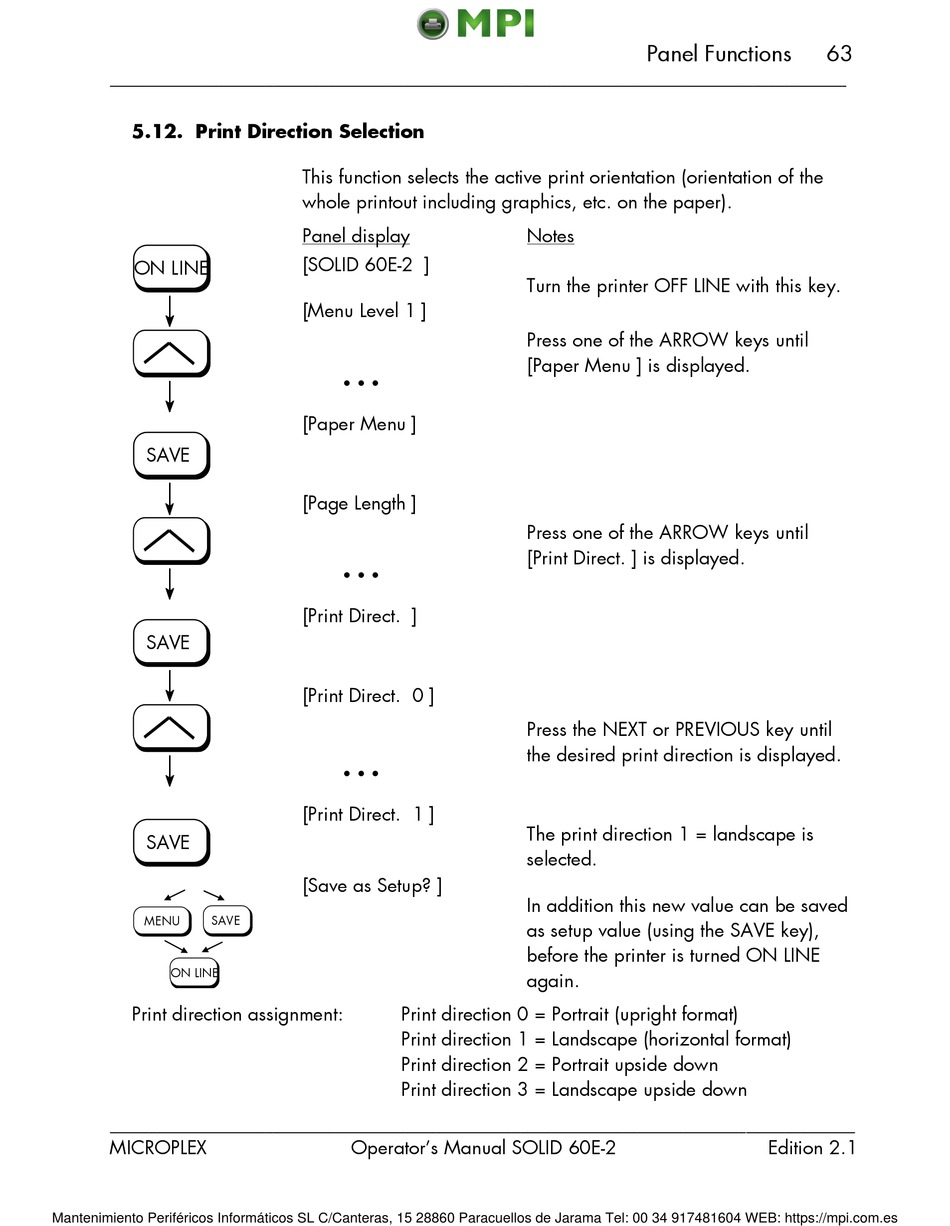

5.12. Print Direction Selection

ON LINE
SAVE
SAVE
SAVE
MENU SAVE
ON LINE
Print direction assignment:
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
This function selects the active print orientation (orientation of the
whole printout including graphics, etc. on the paper).
Panel display
[SOLID 60E-2 ]
[Menu Level 1 ]
  
[Paper Menu ]
[Page Length ]
  
[Print Direct. ]
[Print Direct. 0 ]
  
[Print Direct. 1 ]
[Save as Setup? ]
Print direction 0 = Portrait (upright format)
Print direction 1 = Landscape (horizontal format)
Print direction 2 = Portrait upside down
Print direction 3 = Landscape upside down
Operator's Manual SOLID 60E-2
Panel Functions
Notes
Turn the printer OFF LINE with this key.
Press one of the ARROW keys until
[Paper Menu ] is displayed.
Press one of the ARROW keys until
[Print Direct. ] is displayed.
Press the NEXT or PREVIOUS key until
the desired print direction is displayed.
The print direction 1 = landscape is
selected.
In addition this new value can be saved
as setup value (using the SAVE key),
before the printer is turned ON LINE
again.
