7.1.3. Transfer-/Separator Charger Cleaning

________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
Turn off the printer and pull the power plug before start working at the
chargers.

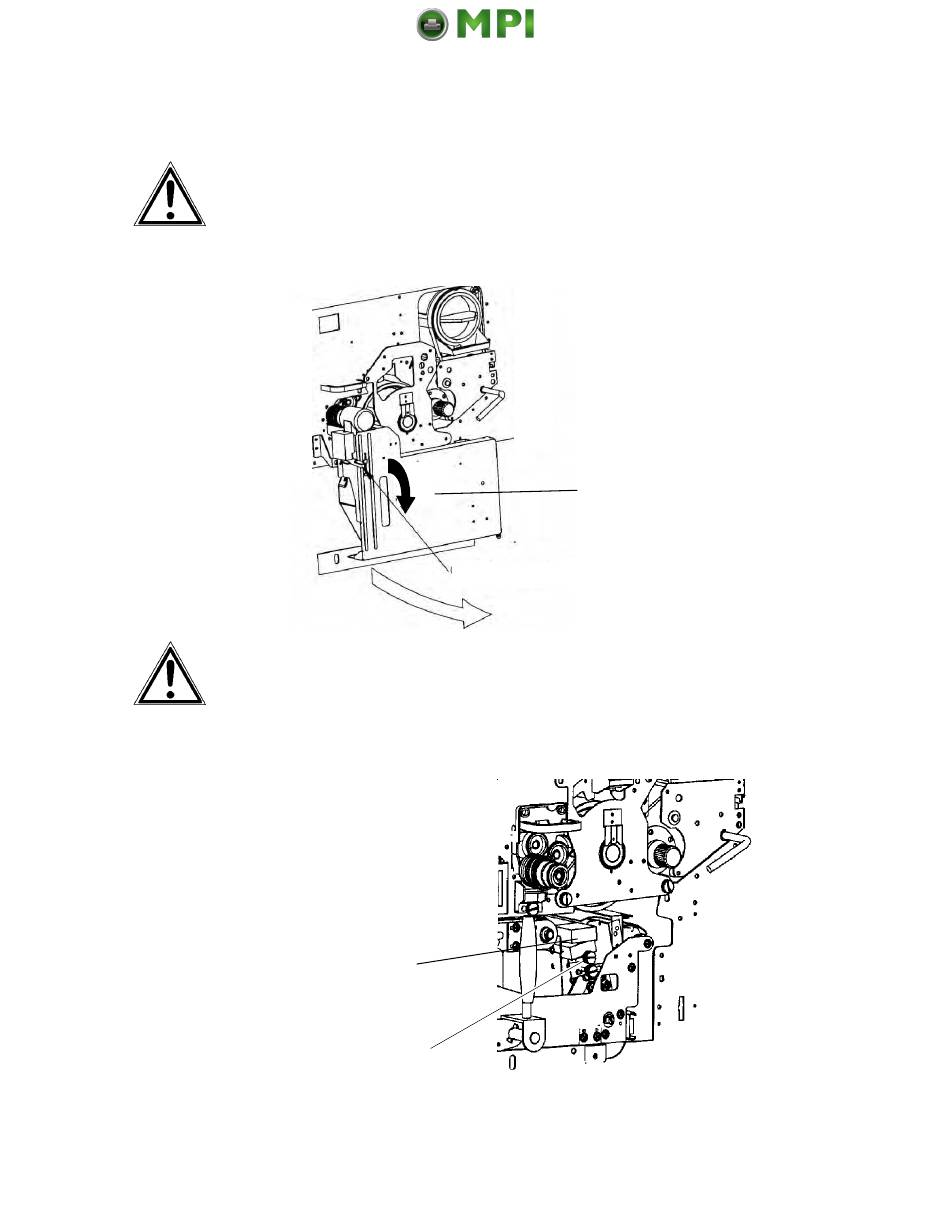

1. Open the front cover of the printer.
2. Press down the open lever to open the waste toner recovery unit.
Open lever (black)
Make sure the transfer-/separator charger is in its "down" position to
avoid damaging the photoreceptor drum (see section 7.6 Transfer-
/Separator Charger Replacing).
3. Turn to loosen the knob screw at the transfer-/separator
charger (C3) and pull the charger out towards you.
Transfer /separator
charger (C3)
Green knob screw
