24
Handling of Consumables
_______________________________________________________________________________________________
_______________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es

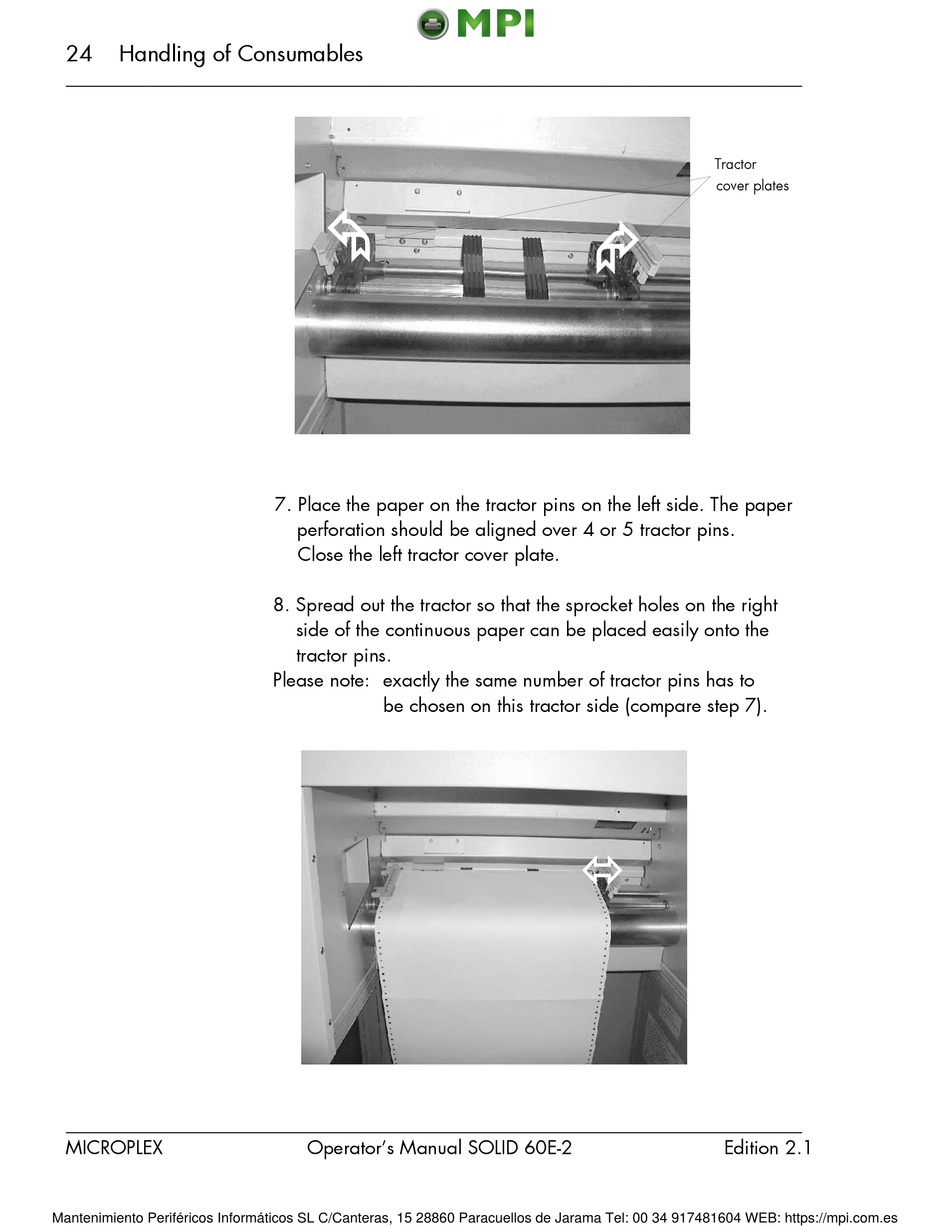

7. Place the paper on the tractor pins on the left side. The paper
perforation should be aligned over 4 or 5 tractor pins.
Close the left tractor cover plate.
8. Spread out the tractor so that the sprocket holes on the right
side of the continuous paper can be placed easily onto the
tractor pins.
Please note: exactly the same number of tractor pins has to
be chosen on this tractor side (compare step 7).
Operator's Manual SOLID 60E-2
Tractor
cover plates
Edition 2.1
