68
Panel Functions
_______________________________________________________________________________________________

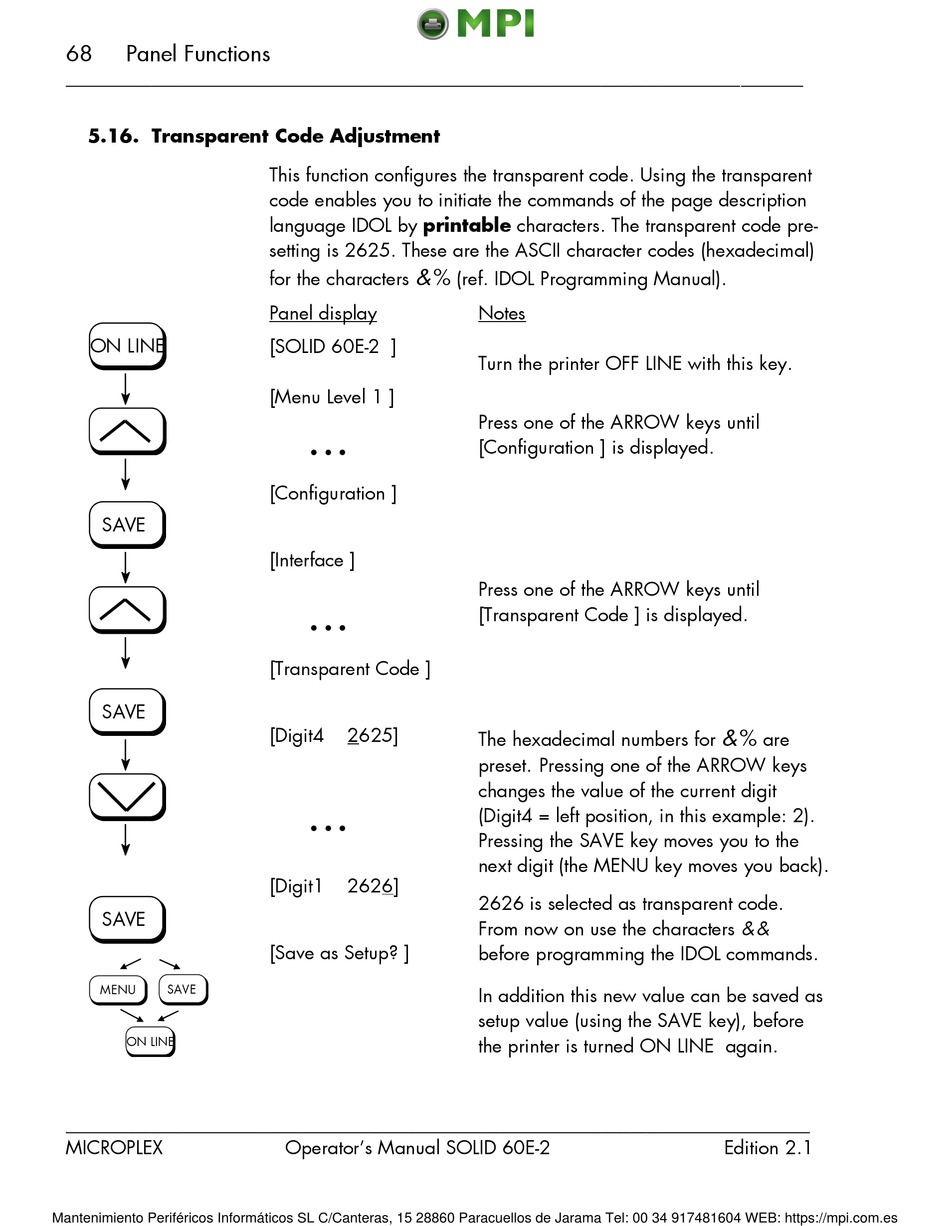

5.16. Transparent Code Adjustment

ON LINE
SAVE
SAVE
SAVE
MENU
SAVE
ON LINE
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
This function configures the transparent code. Using the transparent
code enables you to initiate the commands of the page description
language IDOL by printable characters. The transparent code pre-
setting is 2625. These are the ASCII character codes (hexadecimal)
& %
for the characters
Panel display
[SOLID 60E-2 ]
[Menu Level 1 ]
  
[Configuration ]
[Interface ]
  
[Transparent Code ]
[Digit4
2625]
  
[Digit1
2626]
[Save as Setup? ]
Operator's Manual SOLID 60E-2
(ref. IDOL Programming Manual).
Notes
Turn the printer OFF LINE with this key.
Press one of the ARROW keys until
[Configuration ] is displayed.
Press one of the ARROW keys until
[Transparent Code ] is displayed.
The hexadecimal numbers for
preset. Pressing one of the ARROW keys
changes the value of the current digit
(Digit4 = left position, in this example: 2).
Pressing the SAVE key moves you to the
next digit (the MENU key moves you back).
2626 is selected as transparent code.
From now on use the characters & &
before programming the IDOL commands.
In addition this new value can be saved as
setup value (using the SAVE key), before
the printer is turned ON LINE again.
& %
are
Edition 2.1
