46
Operation and Menu Structure
_______________________________________________________________________________________________

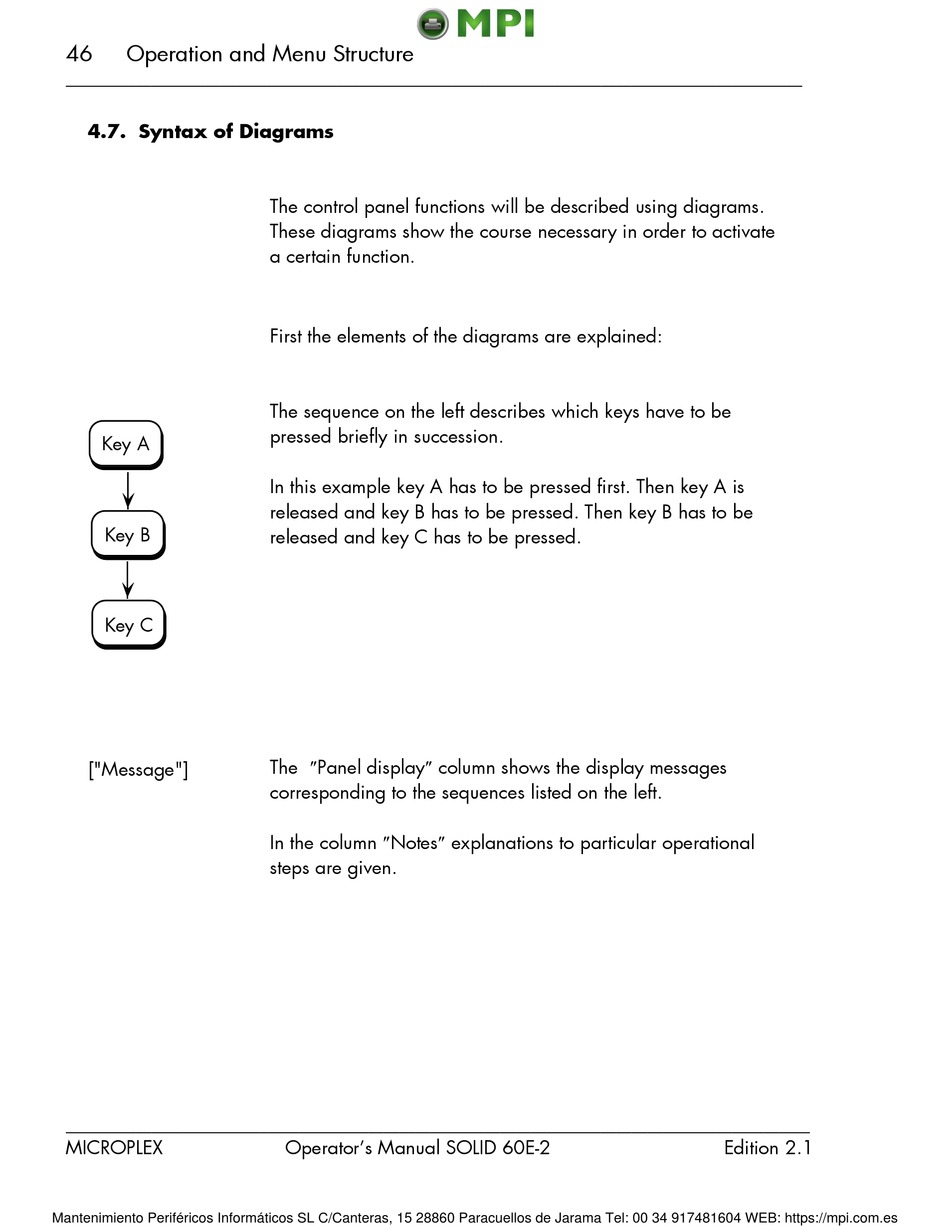

4.7. Syntax of Diagrams
Key A
Key B
Key C
["Message"]
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
The control panel functions will be described using diagrams.
These diagrams show the course necessary in order to activate
a certain function.
First the elements of the diagrams are explained:
The sequence on the left describes which keys have to be
pressed briefly in succession.
In this example key A has to be pressed first. Then key A is
released and key B has to be pressed. Then key B has to be
released and key C has to be pressed.
The Panel display column shows the display messages
corresponding to the sequences listed on the left.
In the column Notes explanations to particular operational
steps are given.
Operator's Manual SOLID 60E-2
Edition 2.1
