14 Installation
_______________________________________________________________________________________________

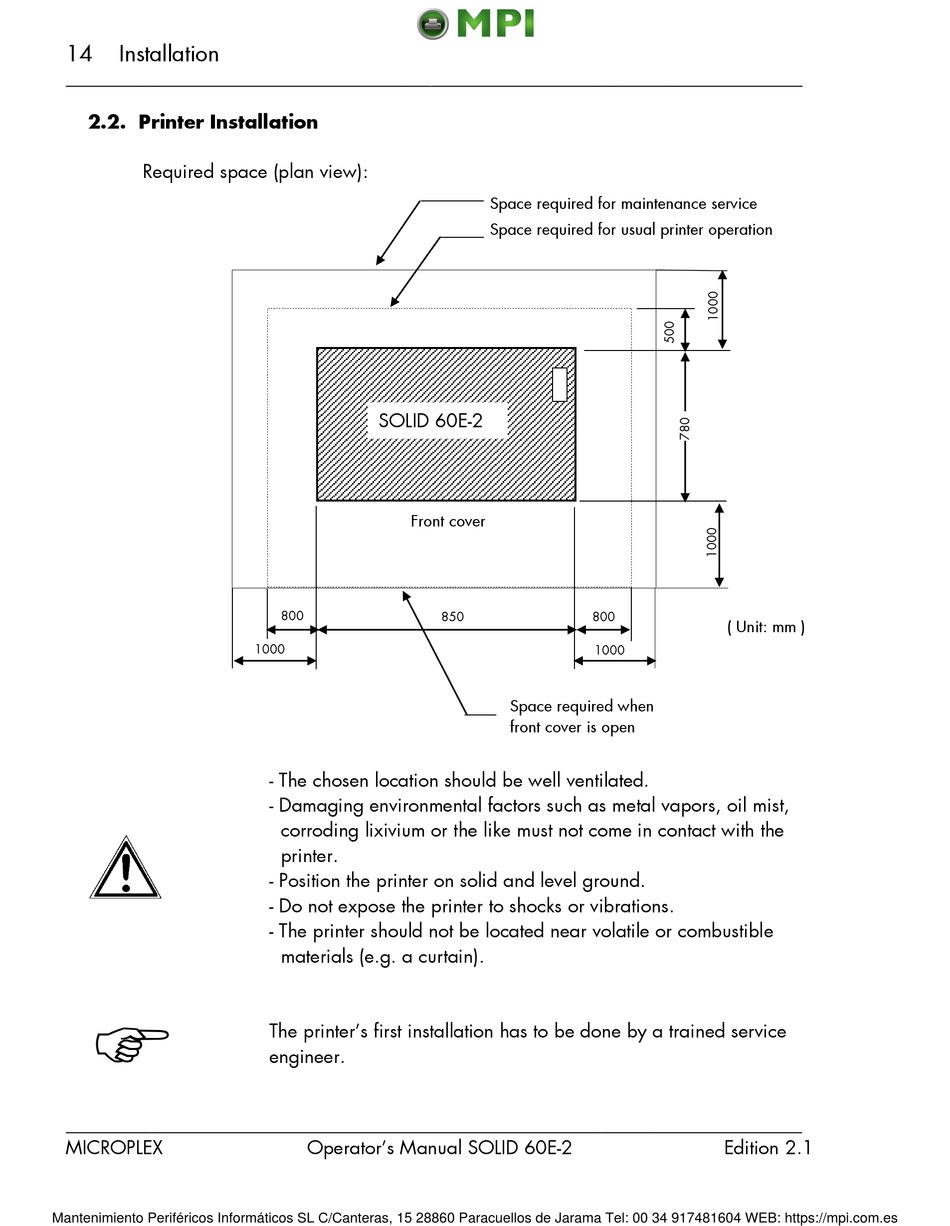

2.2. Printer Installation

Required space (plan view):

_______________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
SOLID 60E-2
Front cover
800
1000
- The chosen location should be well ventilated.
- Damaging environmental factors such as metal vapors, oil mist,
corroding lixivium or the like must not come in contact with the
printer.
- Position the printer on solid and level ground.
- Do not expose the printer to shocks or vibrations.
- The printer should not be located near volatile or combustible
materials (e.g. a curtain).
The printer's first installation has to be done by a trained service
engineer.
Operator's Manual SOLID 60E-2
Space required for maintenance service
Space required for usual printer operation
850 800
1000
Space required when
front cover is open
( Unit: mm )
