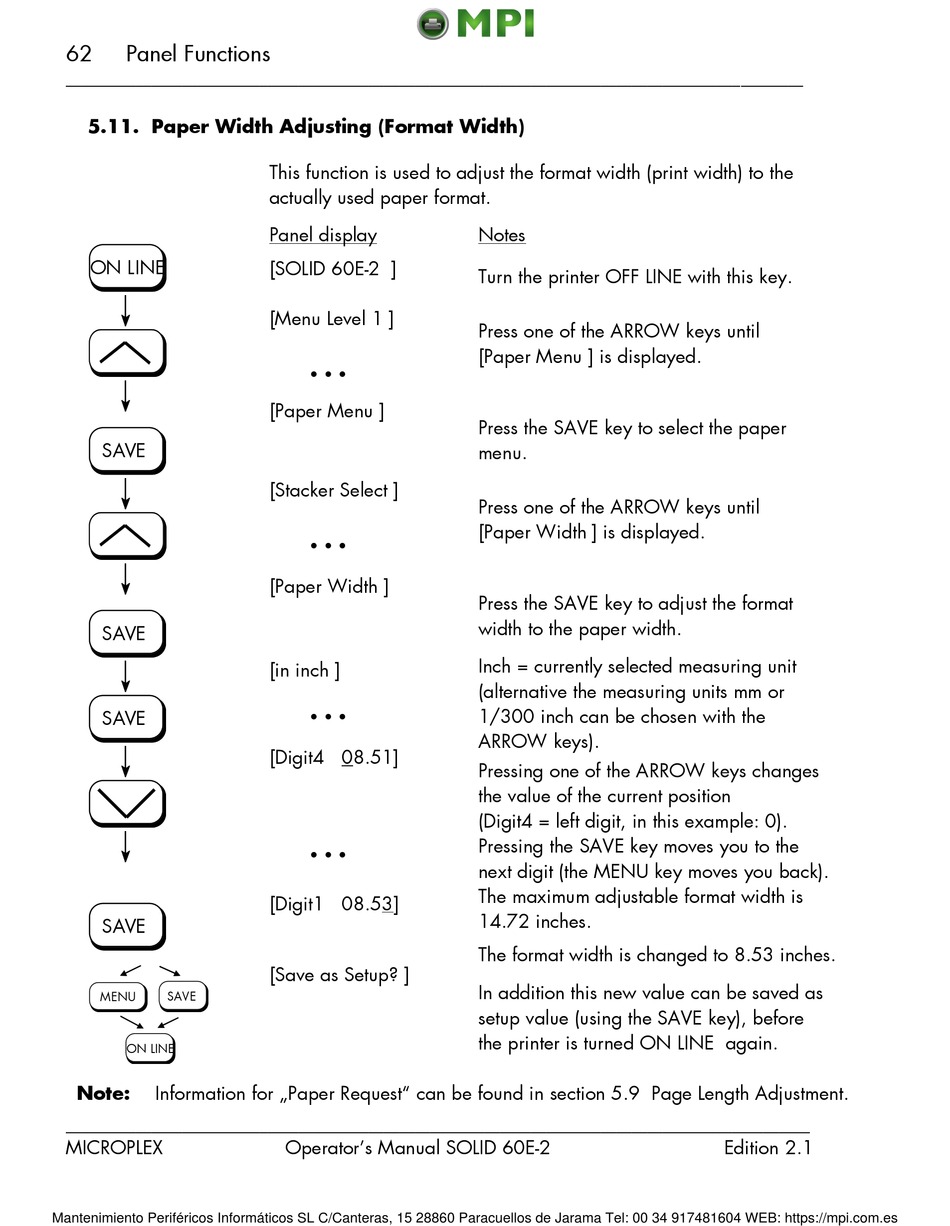

5.11. Paper Width Adjusting (Format Width)

ON LINE
SAVE
SAVE
SAVE
SAVE
SAVE
MENU
ON LINE
Note: Information for „Paper Request" can be found in section 5.9 Page Length Adjustment.
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
This function is used to adjust the format width (print width) to the
actually used paper format.
Panel display
[SOLID 60E-2 ]
[Menu Level 1 ]
  
[Paper Menu ]
[Stacker Select ]
  
[Paper Width ]
[in inch ]
  
[Digit4 08.51]
  
[Digit1 08.53]
[Save as Setup? ]
Operator's Manual SOLID 60E-2
Notes
Turn the printer OFF LINE with this key.
Press one of the ARROW keys until
[Paper Menu ] is displayed.
Press the SAVE key to select the paper
menu.
Press one of the ARROW keys until
[Paper Width ] is displayed.
Press the SAVE key to adjust the format
width to the paper width.
Inch = currently selected measuring unit
(alternative the measuring units mm or
1/300 inch can be chosen with the
ARROW keys).
Pressing one of the ARROW keys changes
the value of the current position
(Digit4 = left digit, in this example: 0).
Pressing the SAVE key moves you to the
next digit (the MENU key moves you back).
The maximum adjustable format width is
14.72 inches.
The format width is changed to 8.53 inches.
In addition this new value can be saved as
setup value (using the SAVE key), before
the printer is turned ON LINE again.
