Microplex PP 404 User Manual

Fanfold printer, multi-purpose printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

USER MANUAL

Fanfold Printer
Multi-Purpose Printer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP 404 and is the answer not in the manual?

Questions and answers

Related Manuals for Microplex PP 404

Summary of Contents for Microplex PP 404

  • Page 1: User Manual

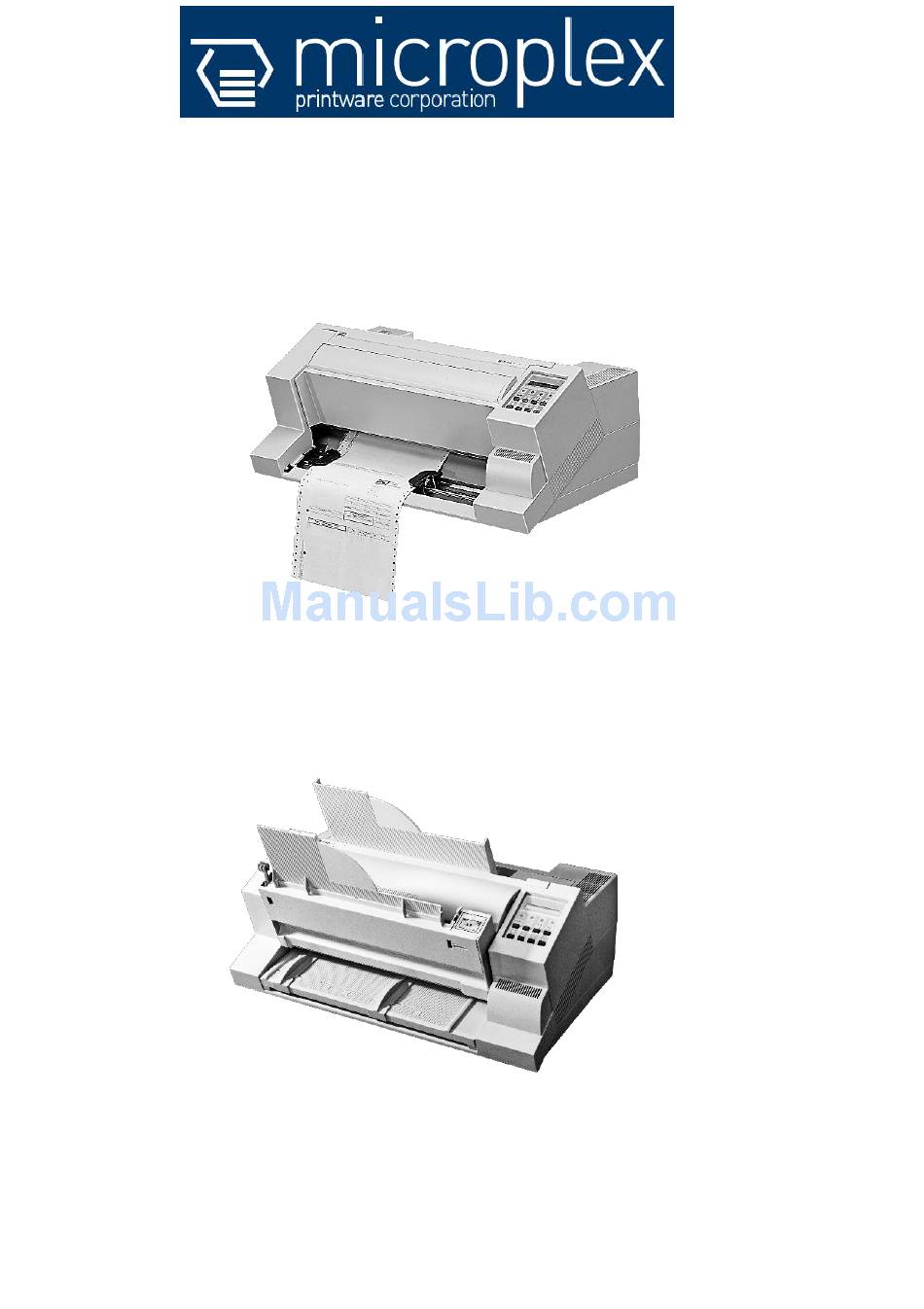

    USER MANUAL Fanfold Printer Multi-Purpose Printer...
  • Page 2 Acknowledgements EPSON is a Trademark of Seiko Epson Corporation. IBM is a Trademark of International Business Machines Corporation. Proprinter is a Trademark of International Business Machines Corporation. A Publication of Microplex 100 Northfield Rd Bedford, OH 44146 November 2015 Number: 5112 991 20523 http:\\www.microplex-...
  • Page 3 Safty Regulations The printer PP 404 (Fanfold Printer) and PP 405 (Multi-purpose Printer) fulfils the safety regulations according to EN 60950-1, UL 60950-1 and CAN/CSA 22.2/No. 60950-1 for Information Technology Equipment. The mains cable must be connected to a ground protected wall-socket. The indicated voltage of the printer needs to agree with the local voltage.
  • Page 4 Safty Regulations Electromagnetic Compatibility We certify that the equipment at issue,  Printer PP 405 (Multi-purpose Printer)) Corresponds to the law regulations ruling electromagnetic compatibility of appliances (2004/108/EC) and, therefore, fulfils the requirements for conformity marking with the CE-sign. In order to ensure the adherence to the limit values in accordance with that test standards for breakdown sending (EN 55022, class B) and noise immunity (EN 55024), in principle shielded interface cables are to be used.

  • Page 5: Table Of Contents

    Content Getting Started..................1-1 1.1. Unpacking the Fanfold Printer ............... 1-1 1.2. Unpacking the Multi-purpose Printer ............ 1-3 1.2.1 A First Look at the Multi-purpose Printer ..........1-4 1.3. Site Considerations ................1-5 1.4. Transport Lock ..................1-6 1.5. Installing the Personality Module (only Multi-purpose Printer) ..... 1-7 1.6.
  • Page 6 Quick Settings .................. 2-11 ........................2-11 Maintenance ..................... 3-1 Cleaning ....................3-1 Cleaning Procedure ................3-3 User Replaceable Parts ................3-4 Replacement of the Platen ..............3-7 Troubleshooting and Diagnostics ............... 4-9 Power-related Problems ..............4-10 Error Messages ..................... 4-10 4.1.1 Errors during Self-test ................
  • Page 7 Explanation of the Individual Menu Items ..........6 Appendix B System Interface Description ............1 Serial Interface RS-232C ................2 Parallel Interface ..................3 Additional Information ................4 USB Interface .................... 5 Appendix C Character Set Tables ..............6 Code Page ISO 8859-1 ................6 Code Page ISO 8859-15 ................
  • Page 8 C.30 Code Page ISO LATIN 2 ................31 C.31 Code Page MAZOVIA ................32 C.32 Code Page 437 HUN ................33 C.33 Code Page 852 SEE .................. 34 C.34 Code Page 866 LAT ................. 35 C.35 Code Page WIN LAT2 ................36 Code Pages for the Eastern European Countries (EE2) .........
  • Page 9 Preface Preface About this Manual This manual is covering the two printers Fanfold Printer Multi-purpose Printer The operation and functionality are nearly the same. In most illustrations, the Multi-purpose Printer is used. In case there are differences in the handling you will find the note: ...
  • Page 10 Preface Maintenance shows how to clean the printer and how to replace the platen and the print head. Trouble Shooting and Diagnostics Suggests how to identify and correct simple problems. Automatic Sheet Feeder Cassettes (ASF) (only for Multi-purpose Printer) this chapter shows how to handle the ASF Cassettes.
  • Page 11 Preface Barcode Quick Reference Quick reference for Bar Code programming. Print Samples of Resident Fonts Conventions Used in this Guide The following conventions are used: Bold: Headlines and important information. Note: Contains special advice to facilitate handling. Caution: Contains important information to prevent damage of the equipment. [ENTER] Key functions are always depicted in brackets or you will find the symbol of the key e.g.

  • Page 12: Getting Started

    1. Getting Started 1.1. Unpacking the Fanfold Printer Check each item against the check list detailed below. Contact your reseller immediately if any item is missing or damaged. The printer package should contain the following: 24-Needle Printer (2) Ribbon cassette Power cord (4) Quick reference guide CD-ROM...
  • Page 13 Getting Started 1.1.1 A First Look at the Fanfold Printer Before installing the printer, spend some time familiarizing yourself with the printer. (1) Printer (2) Ribbon Cassette (3) Top Cover (4) Tractor for Continuous Paper (5) Paper Supports (6) Front Cover (7) Control Panel (8) Tear off edge (9) Serial / Parallel / USB Input...

  • Page 14: Unpacking The Multi-Purpose Printer

    Getting Started 1.2. Unpacking the Multi-purpose Printer Check each item against the check list detailed below. Contact your reseller immediately if any item is missing or damaged. The printer package should contain the following: (1) Output Stacker (2) Ribbon Cassette (3) Printer (4) Quick Reference Guide (5) Personality Module (PM) (sep.)

  • Page 15: A First Look At The Multi-Purpose Printer

    Getting Started 1.2.1 A First Look at the Multi-purpose Printer Before installing the printer, spend some time familiarizing yourself with the printer. (1) Printer (2) Ribbon Cassette (2) Top Cover (4) Tractor for Continuous Paper (3) Paper Supports (6) Front Cover (4) Control Panel (8) Tear off edge (5) Serial / Parallel / USB Input...

  • Page 16: Site Considerations

    Getting Started 1.3. Site Considerations Environment Conditions  Install the printer in an area away from any heat source, air conditioner or strong draught.  Avoid installing the printer in a dusty or humid environment. Work Location  Place the printer on the stand or a flat, solid level area such as a desk. ...

  • Page 17: Transport Lock

    Getting Started 1.4. Transport Lock You will find a red shipping tab under the top cover (1). Grasp the top cover (1) on the left and right, lift it and remove the transport locking clip (2) from the print head drive belt. Re-packing Information Save all packing material and boxes for future transportation of the printer.

  • Page 18: Installing The Personality Module (Only Multi-Purpose Printer)

    Getting Started 1.5. Installing the Personality Module (only Multi-purpose Printer) The printer functions only in combination with an installed interface module, called a Personality Module (PM). The illustration below shows the standard PM with a serial, parallel, and USB interface. Note To avoid damage due to electrostatic discharge, do not touch the pins or components of the PM.

  • Page 19: The Power Supply

    Getting Started 1.6. The Power Supply Mains Voltage In general, the main's voltage selection is determined at factory sites. Make sure that the specified voltage on the label (1) corresponds to your main's voltage:  The 230 V setting applies to the range of 180 to 264 V alternating current. Note: Since an incorrect voltage selection can seriously damage the printer, please pay special attention to the following.

  • Page 20: Power On/Off Switch

    Getting Started 1.7. Power ON/OFF Switch The power ON/OFF switch (1) turns the printer's power supply ON or OFF. After switched ON the printer an internal self-test which checks the electronics, the print head carriage movement and the interface will be performed. At first the yellow LED on the Operator Panel is lighting up and the display shows TEST..0.1 (bootstrap).

  • Page 21: Installing The Ribbon Cassette

    Getting Started 1.8. Installing the Ribbon Cassette It is recommended to use only original ribbon puts out by our company. Using other ribbons will void your warranty. Caution: Never manually move the print head fully to the right-hand stop (you could change the way of the paper output).
  • Page 22 Getting Started Insert the Ribbon Cassette with the ribbon at the bottom. Position the upper mounting pin (1) on the green guide on both sides. Slide the cassette downward. In this position, the ribbon feed guide touches the green plastic clip. 1-11...
  • Page 23 Getting Started Move the cassette toward you until you hear a click on both sides. Swing the ribbon underneath the print head for the final click. The audible clicks indicate that the mounting pins have engaged properly klick! 1-12...
  • Page 24 Getting Started When installed correctly the ribbon cassette has a sloping position. Note: Move the print head back and forth to settle the ribbon in the correct position. If necessary, remove excess ribbon slack by turning the green knob clockwise. Close the top cover and press [START/STOP] 1-13...
  • Page 25 Getting Started 1.8.1. Replacing the Ribbon Cassette The print head may be very hot immediately after printing! Caution:  Close the top cover and switch the printer ON. Lift the top cover after the display shows the message READY 1 ELQ to gain access to the ribbon cassette mountings. The print head will move to the correct position, aligned with the cut out in the paper guide plate to facilitate the installation of the ribbon cassette.

  • Page 26: Tractor

    Getting Started 1.9. Tractor Inserting Fanfold Paper for the First Time Ensure that the printer is placed in the depression on the top of the stand (option). If the printer is used without a stand, align the printer with the front edge of the table. The cables at the back of the printer should be tucked into the cable clips in order not to block the paper path.
  • Page 27 Getting Started for both Printer:  Pull the green tractor lock levers (2) toward you to release the tractors.  Lock the left tractor (1) at the new position by pressing the green tractor levers (2) backward.  Roughly adjust the right tractor to the paper width, and space out the paper supports (3) evenly.

  • Page 28: Manual Front Insertion Guide

    Getting Started Open the tractor covers (1) and insert the paper. Close the tractor covers. Tighten the upper edge of the fanfold paper by slightly pushing the right tractor to the right. Make sure not to stress the paper too much. Lock the tractors by pushing back the green lock lever again.
  • Page 29 Getting Started 1.10. Manual Front Insertion Guide Multi-Purpose Printer  ⓪ Move the left-hand paper guide into the position indicated by on the insertion guide. In this setting the margin has the smallest value possible.  Adjust the right-hand paper guide (2) to the width of the paper to be used. If continuous form paper is in print position on the platen and has not been torn off, it will Note: be moved forward and TEAR OFF PAPER will be displayed.

  • Page 30: Output Stacker (Only Multi-Purpose Printer)

    Getting Started 1.11. Output Stacker (only Multi-purpose Printer) Install the output stacker (1) into one of the two rails in the top cover (2). The meaning of the two Positions:  for paper with 80 g/m² or thicker use the steeper position (left picture); ...

  • Page 31: Selection Of Operator Panel Language

    Getting Started 1.12. Selection of Operator Panel Language The printer control panel and LCD display menu is used for the next steps. It is possible to change the language in the printer menu from English to French or German. The following example shows how to change from English to German: DISPLAY Power on printer...

  • Page 32: Paper Source Selection

    Getting Started 1.13. Paper Source Selection The basic selections for PAPER SOURCE are:  ’ TRACTOR (Default, indicated by  MANUAL Select 'MANUAL' as paper source on the operator panel The following diagram shows which keys to press and what is displayed on the operator panel. DISPLAY 1.

  • Page 33: Print Test

    Getting Started 1.14. Print Test There are three test printouts available.  PRINT TEST 1 shows a pattern of all printable characters. Use this to check if the printer operates correctly.  PRINT TEST 2 produces a standard letter (ECMA-132) which can be used for measuring the printer's throughput.

  • Page 34: To Start A Print Test

    Getting Started Eilzustellung Norddeutsche Farbwerke KG Herrn Dr. Grauert Große Elbstraße 64 2000 Hamburg 4 Org. III 5/37 4 34 22.04.75 17.04.75 Volkmann Vordruckgestaltung für den allgemeinen Schrift- verkehr, für das Bestell- und Rechnungswesen E i l t Sehr geehrter Herr Dr. Grauert, Sie können das Schreiben der Briefe, Bestellungen, Rechnungen usw.
  • Page 35 Getting Started  Switch the printer ON (display shows READY 1 ELQ). The following identifies the keys to press and the corresponding operator panel displays Drucker einschalten. LOCAL  MACRO SELECT  [] -- [] INSTALLATION   [] INTERFACE ...

  • Page 36: Installation Of Personality Module (Pm)

    Getting Started 1.16. Installation of Personality Module (PM). Connection to a Computer Parallel or Serial or USB  Switch the printer and computer OFF.  Connect the interface cable coming from the computer to the printer's parallel (1), serial (2), or USB port (3).
  • Page 37 Getting Started Connection to a Computer by Ethernet Interface CONFIGURATION (via Operator Panel) 1. STEP Define the IP Lookup Mode. This “IP Lookup Mode” defines the method of IP Address handling (manual or automatic). 1-26...
  • Page 38 Getting Started 2. STEP Set up of IP Address, Subnet Mask and Gateway Address annually This selection is required if the IP LOOKUP mode has been set to STATIC 1-27...
  • Page 39 Getting Started Note: Changes of IP Address, Subnet Mask or Gateway Address become effective after switching the printer off and on again. 1-28...

  • Page 40: Http Web Server (Psi Printer Webpanel)

    Getting Started HTTP Web Server (PSi Printer WebPanel) The PNS Homepage is embedded in the Interface Module and can be accessed by means of an Internet Browser (Internet Explorer 4.x or later, Netscape 3.x, Opera x.y, Firefox x.y or later). When using other Browsers, the full functionality of the print server homepage cannot be guaranteed.
  • Page 41 Getting Started In this part of the web page status List of configuration and administration pages of PNS. Click one of the highlighted information of the printer is displayed. items to select a sub page. is visible on all web pages. status items to select a sub page.

  • Page 42: Pns Display Current Settings

    Getting Started PNS Display Current Settings The Page ”Display Current Settings” shows the actual settings of the printer. These settings can be different from the stored macro items if they have been changed by the user by means of the operator panel or by application software.

  • Page 43: Pns Page Basic Settings

    Getting Started PNS Page Basic Settings The Page ”Basic Settings” shows the actual Basic Settings of the printer which can be changed by drop down menu bars. Changes of settings can be made valid and permanent by pressing the “Save” button. “Basic Settings”...
  • Page 44 Getting Started PNS Page Configuration Macro 1 - 4 The Page ”Configuration Macro 1 - 4” shows the actual settings for each user defined macro stored in the printer. The order of parameters corresponds to the menu print out. Settings can be changed by drop down menu bars. Available parameter values are shown and can be selected.

  • Page 45: Pns Page Network Administration

    Getting Started PNS Page Network Administration The Page ”Network Adminstration: General Settings / TCP/IP” shows actual settings of network modes and protocols. Changes of settings can be made valid and permanent by pressing the “Save” button. The button “Cancel” ignores changes and restores the previous settings Note: Changes of IP Address, Subnet -Mask or Gateway Address become effective after switching the printer off and on again.

  • Page 46: Pns Configuration Logical Printer

    Getting Started PNS Configuration Logical Printer The Page ”Configuration Logical Printer” offers the features to define a logical printer and the related port address or LPD Queue name. (Note: In PNS Release 1 only one logical printer is selectable.) Please ensure the box “Logical Printer Enabled” is enabled. Otherwise no print services are available. 1-35...

  • Page 47: Pns Page Printer Actions

    Getting Started PNS Page Printer Actions The Page ”Printer Actions” offers features to start printer internal tests in the same way as from the operator panel and the download of a new printer firmware. • Print Menu - Basic and Macro Settings are printed on the printer •...
  • Page 48 Getting Started Printer Firmware Download In order to load a new printer firmware first select a PNS printer firmware file (extension .mot) from a folder and press the “SEND” button to download the new firmware into the printer. The following message will appear Download and reprogramming of the FLASH memory will take a few minutes.

  • Page 49: Emulation Select

    Getting Started 1.17. Emulation Select The following emulations are included in the printer: in Macro 1  EPSON LQ / ESC/P2 IBM Proprinter XL 24 in Macro 2 IBM Proprinter XL 24 AGM in Macro 3 EPSON LQ / ESC/P2 in Macro 4 To change from one emulation to another, follow the procedure below.

  • Page 50: Printer Operation

    2. Printer Operation The control panel  controls the set-up for communication with the host computer  controls various parameter settings  allows manual control of the paper handling  gives information about the printer's status. The 16-character Liquid Crystal Display (LCD) (1) indicates the current status of the printer. If an error occurs (e.g.

  • Page 51: Function Keys

    Printer Operation Function Keys The function keys of the operator panel are grouped into two rows. The function of a key depends on the printer operation state. Following operation states are possible:  BEREIT or. AKTIV  STOP 2.2.1 Short Description of Keys ...
  • Page 52 Printer Operation  in the printer operation state LOCAL MODE Number Symbol Function  EJECT FORM.  Paper movement up and down  START/STOP Key. START/STOP key - after pressing the [START/STOP] key, the printer enters the READY or BUSY mode. ...

  • Page 53: Detail Description Of Keys

    Printer Operation 2.2.2 Detail Description of Keys in the printer operation state READY or BUSY Quick Settings (only active if not locked in the menu function  MENU ACCESS with QUICK SET OFF (see Appendix A). READY 1ELQ Select MACRO 1 Exit Select MACRO 2...
  • Page 54 Printer Operation  Top Row Keys The Quick Macro Selection mode is entered when one of the top row keys pressed. From the left to the right macro 1 to macro 4 will be selected. Pressing of key causes the printer to change in the STOP-mode and in the display appears the message MACRO 2. ...
  • Page 55 Printer Operation This parameter covers a range of - to + Inch ( " 0,42 mm), where "-" is up the page and "+" (plus) is further down the page (see also the table in Appendix A Configuring the Printer for VERT.POS.ADJ.). Note: The set up of VERT.POS.ADJ.
  • Page 56 Printer Operation How to Use this Function Preprinted paper (e.g. bills of lading) has to be adjusted exactly. Following errors are possible:  The printed value is too high - the fanfold paper has to be moved a little bit higher. ...
  • Page 57 Printer Operation There are two possibilities for the displacement to become active:  If a positive displacement is set before starting the print job the printer will move the paper into the right position first and then start printing.  If the displacement is set during a print job, the printer prints the contents of the print buffer.

  • Page 58: Menu-Mode

    Printer Operation 2.3 Menu-Mode All operator s selectable features are access able via the control panel and combined in the Printer MENU:  Easy handling of a configuration (interface, etc.).  Quick parameter changes during an application.  A SAVE function to make changes permanent (until purposely reset), facilitating changes in default settings.

  • Page 59: To Confirm Selection

    Printer Operation By using the [] or [] key, you are able to select a new value. You get the display:  MENÜ-TEXT  To Confirm Selection:  Press []; the confirmed value is displayed with an asterisk () in the last position as shown in the picture before.

  • Page 60: How To Save Settings

    Printer Operation How to Save Settings The settings selected and confirmed are only active until the printer is switched off. In order to prevent losing your new settings you can save them using the MAIN FUNCTION SAVE Display STOP  MACRO SELECT ...

  • Page 61: Maintenance

    Maintenance 3. Maintenance Preferred Materials Für Wartungsarbeiten empfehlen wir folgende Materialien und Reinigungsmittel:  Lint-free cloth.  Vacuum cleaner. 3.1 Cleaning The user should clean the printer every six months or after 50,000 prints, whichever occurs first. If you experience paper feed problems, or if the print head carriage movement becomes affected, cleaning should be carried out more often.
  • Page 62 Maintenance Note: The number behind FW indicates the firmware and the number behind SN the serial number of the interface (PM).

  • Page 63: Cleaning Procedure

    Maintenance 3.2 Cleaning Procedure Power the printer ON and remove the top cover. Remove the ribbon cassette. Power off the printer Thoroughly brush and vacuum all accessible areas to remove any paper flock and dust Clean the platen's surface, the paper pressure rollers and the transport rollers using the platen cleaner.

  • Page 64: User Replaceable Parts

    Maintenance 3.3 User Replaceable Parts Replacement of the Print Head The print head has an expected life time of approximately 350,000 pages (see Page Counter (PGCNT in PRINT TEST 3). Print Head Removal The print head may be very hot immediately after printing. Caution: Remove the output stacker (1) (only for Multi-purpose Printer).
  • Page 65 Maintenance Print Head Installation Ensure that the printer is switched OFF. For print head installation, the carriage should be aligned with the cut-out in the paper guide plate (same position as for removal procedure). 1. Hold the print head (5) in its mounting position and press it against its stop in direction of the platen.
  • Page 66 Maintenance Reconnect the print head cable (4) and fasten it. Mount and close the top cover Mount only for the Multi-purpose Printer the output stacker (1). Switch the printer ON, open the top cover after the message READY 4 ELQ, and insert the ink ribbon cassette.

  • Page 67: Replacement Of The Platen

    Maintenance Replacement of the Platen The platen needs to be replaced after approximately 800,000 pages (see Page Counter (PGCNT) in PRINT TEST 3). To Remove the Platen (2) 1. Remove the output stacker (only Multi-purpose Printer). 2. Lift and remove the top cover. 3.
  • Page 68 Maintenance To Install the Platen Ensure that the printer is switched OFF. 1. Place platen (2) in the vacant space between print head and metal bar. 2. Move print head from its right hand position into the center. 3. Fit the gear wheel end of the platen into the right hand side mounting. Be careful not to damage the gear wheel.

  • Page 69: Troubleshooting And Diagnostics

    Troubleshooting and Diagnostics Troubleshooting and Diagnostics How to Use This Section Find the category in which your problem occurs. The problem categories are:  Power-related Problems  Error Messages  No Printout  Operation-related Problems  Print-related Problems  Ribbon or Carriage-related Problems ...

  • Page 70: Power-Related Problems

    Troubleshooting and Diagnostics Power-related Problems  Power indicator does not come On when power is switched On  Check that the power cord and plug are securely fitted to the printer and to an electrical outlet.  Ask for the power connector connections (and fuse, if fitted) to be verified. ...
  • Page 71 Troubleshooting and Diagnostics Display That means ... Cause / Action I/O OK EEPROM located on EEPROM  not installed the Control Unit not  not correctly installed addressable  defective If all tests have been passed successfully the following message will be displayed: Display That means ...

  • Page 72: Errors During Printing

    Troubleshooting and Diagnostics 4.1.2 Errors during Printing During normal operation the following error messages may occur: Display That means ... Cause / Action Entered in the OFFLINE  Press to continue. mode when pressed. LOCAL The STOP indicator is lit. ...
  • Page 73 Troubleshooting and Diagnostics Display That means ... Cause / Action PAPER JAM  To remove paper jam please TRF PAPER Displayed if a form jams in JAM ASF the ASF or if successive line refer to paragraph 4.4 and 4.8 (ASF only for Multi- feeds fail to move fanfold Diagrams of Error for...

  • Page 74: Technical Errors

    Troubleshooting and Diagnostics 4.1.3 Technical Errors Display That means ... Cause / Action  Distance print head and platen AGC Error AGC ADJUST faulty procedure fault  Print head loose  Platen incorrectly installed  Ribbon not inserted  Horizontal drive without function ...

  • Page 75: No Printout

    Troubleshooting and Diagnostics 4.1.4 No Printout Self-test printout does not start  Make sure that you have closed the cover.  Check if paper is loaded in the printer.  Refer to section 1.12 Test Printouts. Printing does not start ...

  • Page 76: Operation-Related Problems

    Troubleshooting and Diagnostics 4.3.1 Operation-related Problems Paper is not positioned at perforation for tear-off feature  Select the correct form length using the Set-up feature.  Reset top of form by performing a Parking function.  Refer to section A.4 Vertical Positioning Adjustment Paper tears or jams ...

  • Page 77: Print-Related Problems

    Troubleshooting and Diagnostics 4.1.5 Print-related Problems Print faint or of poor quality.  Have you used the correct paper? See Chapter 6 Technical Data which contains a full specification of the paper you can use. Replace the paper if it does not match the specification.
  • Page 78 Troubleshooting and Diagnostics If the printout or the character set is not ok, the following procedure can help to clear the situation. Action Result Check  PAPER SOURCE  selection Select and start PRINT  Ribbon tension and Print not OK? TEST 1 condition ...

  • Page 79: Ribbon Or Carriage-Related Problems

    Troubleshooting and Diagnostics 4.1.6 Ribbon or Carriage-related Problems Ribbon Problems  Make sure that the ribbon is:  Stretched correctly  Not worn thin or dry  Not torn or damaged in any other way  Not jammed Carriage does not move smoothly ...

  • Page 80: Diagrams Of Errors

    Troubleshooting and Diagnostics 4.2 Diagrams of Errors 4.2.1 PAPER JAM TRF (fanfold paper jam) DO NOT turn the printer off for paper jam recovery in order not to lose any data Note: • Top cover open • Remove Ribbon • Loosen green screws •...

  • Page 81: Paper Jam Asf (Only Multi-Purpose Printer) Or Manual

    Troubleshooting and Diagnostics 4.2.2 PAPER JAM ASF (only Multi-purpose Printer) or MANUAL • Top cover open • Remove Ribbon • Loosen green screws  • Remove paper guide Papierweg Remove paper fragments Paper path free? frei?  Install paper guide ...

  • Page 82: No Printout Ino Printing

    Troubleshooting and Diagnostics 4.2.3 NO PRINTOUT NO PRINTING Power on the printer  Compare error message and Papierweg READY displayed? informing the Service frei? Start printing again  Check connection Papierweg  Check configuration of the BUSY displayed? frei? interface Start printing again Papierweg ...

  • Page 83: Print Faint Or Of Poor Quality

    Troubleshooting and Diagnostics 4.2.4 PRINT FAINT OR OF POOR QUALITY see Menu Structure and Appendix A Configuration of the Printer. Papierweg Ribbon ok? Renew ribbon! frei? Papierweg Ribbon on the Check ribbon position! right possition? frei? Papierweg Papierweg Ribbon on the Ribbon on the frei? frei?

  • Page 84: Asf-Cassettes (Only For Multi Purpose Printer)

    5. ASF-Cassettes (only for Multi Purpose Printer) 5.1 Automatic Sheet Feeder Cassettes (ASF) 5.1.1 Checking the Delivery Consignment The printer can be operated with up to three ASF cassettes. The delivery comprises following parts:  Cassette (1)  Paper support (2) Three different types of ASF cassettes are available.

  • Page 85: Prepare The Asf Cassettes

    Automatic Sheet Feeder Cassettes (ASF) (only for Multi-purpose Printer) 5.1.2 Prepare the ASF Cassettes  Mount the paper support (2) onto the cassette...

  • Page 86: Installing The Asf Cassettes

    Automatic Sheet Feeder Cassettes (ASF) (only for Multi-purpose Printer) 5.1.3 Installing the ASF Cassettes  Push the tabs (1) of the cassette into the slots (3) of the printer or of another ASF cassette until they engage. Be careful not to damage the contacts (2) of the cassette while installing. Note: ...
  • Page 87 Automatic Sheet Feeder Cassettes (ASF) (only for Multi-purpose Printer) The position of each cassette is dependent on the paper length to be processed. The cassette with the shortest paper needs to be mounted first because the distance between the pick-up rollers of the cassette and the push rollers inside the printer is the shortest at position '1'.

  • Page 88: Removing The Asf Cassette

    Automatic Sheet Feeder Cassettes (ASF) (only for Multi-purpose Printer) 5.1.4 Removing the ASF Cassette Remove the ASF cassette (1) from the printer by draw backwards both release levers (2). Note: To remove all ASF cassettes together release only the ASF cassette in position 1. If the ASF cassettes shall be removed individually, so start the removal procedure with the last mounted ASF cassette.

  • Page 89: Lnsert Paper

    Automatic Sheet Feeder Cassettes (ASF) (only for Multi-purpose Printer) 5.1.5 lnsert Paper The ASF cassette A can be loaded with up to 180 sheets of 80g/m² (21 lb/ream) paper. Cassette B can be loaded with up to 40 envelopes. Paper that is intended for use with an ASF cassette must be unpacked and acclimatized within the printer environment for at least 24 hours prior to loading.
  • Page 90 Automatic Sheet Feeder Cassettes (ASF) (only for Multi-purpose Printer) Note: Change the pressure off the pick-up rolls by loosening levers (2) if paper in use is higher or less than 80 g/m². Move tension levers (5) towards - for lighter and + or ++ for heavier paper.

  • Page 91: Replacement Of The Asf Pick-Up Rollers

    Automatic Sheet Feeder Cassettes (ASF) (only for Multi-purpose Printer) 5.2 Replacement of the ASF Pick-up Rollers The ASF pick-up rollers (1) have an expected life time of approximately 200,000 pages. 5.2.1 To Remove the ASF Pick-up Rollers (3)  Remove the ASF cassette ...

  • Page 92: To Install The Pick-Up Rollers

    Automatic Sheet Feeder Cassettes (ASF) (only for Multi-purpose Printer) 5.2.2 To Install the Pick-up Rollers  Slide the new pick-up rollers (3) onto the shaft (4).  Insert the free end of the shaft (4) into the mounting (6), ensuring that each roller flange (5) is positioned so that they join with the indicated slots.

  • Page 93: Technical Data

    6. Technical Data The following technical data refers to the Personality Module PM SER/PAR/USB. Fanfold Printer Multi-purpose Printer Print Head Serial Impact Dot Matrix SIDM Technology Technology Paper Path Flatbed technology Print Head 24 needles, needle diameter 0.25 mm (0.01 inch), lifetime Approximately 350,000 pages (standard DIN letter).
  • Page 94 Technical Data Fanfold Printer Multi-purpose Printer ® ® Emulations ProPrinter XL24 (AGM) EPSON LQ 2550/1060 / ESC/P2 Print Speed (at 10 cpi) Draft Quality 500 cps 600 cps Near Letter Quality 250 cps 300 cps 125 cps Letter Quality 150 cps Throughput acc.
  • Page 95 Technical Data Fanfold Printer Multi-purpose Printer Code 39, 2 of 5 industrial, 2 of 5 interleaved, Coda bar (Monarch), EAN 8, EAN 13, Code 93, MSI Mod 10/10, UPC-E, UPC-A, Code 128 (incl. EAN 128), Post net, and KIX Code, all in Bar Codes horizontal and vertical print out (see also Appendix F Bar Code Quick Reference).
  • Page 96 Technical Data Fanfold Printer Multi-purpose Printer 16 character LCD for menu controlled setup, status- and error Control Panel messages; language: English, German, or French. Dimensions  Width 635 mm; 25.4 inch 635 mm; 25.4 inch  Depth 390 mm; 15,6 inch (415 mm with 390 mm;...
  • Page 97 Technical Data Fanfold Printer Multi-purpose Printer Printer Stand (Option)  width 611 mm, 23.8 inch 630 mm; 25 inch  depth 540 mm; 21.4 inch 540 mm; 21.4 inch  height 750 mm; 29,3 inch 730 mm; 730 inch  Weight appr.
  • Page 98 Technical Data Multi-purpose Fanfold Printer Printer Paper Run Control for unattended printing mode Paper Weight Minimum Maximum  1 ply 60 g/m ; 16 lb./ream 90 g/m ; 24 lb./ream  multi (each page) 40 g/m ; 10 lb./ream 60 g/m ;...
  • Page 99 Technical Data  Automatic Insertion (option for Multi-purpose Printer) Suitable for automatic insertion of cut sheets and thin form sets (Cassette A) or for thick and inflexible sheets, not interrupted top-glued forms, and envelopes (Cassette B).  Automatic Insertion with Cassette A Minimum maximum Paper width:...
  • Page 100 Technical Data  Automatic Insertion with Cassette B (Option for Multi-purpose Printer) Minimum Maximum Paper width: 105 mm (4.13") 305 mm (12") The minimum paper length for cassette B depends on the mounting position of the cassette as the feeding path of the paper is the longest in the last mounted cassette. Minimum Maximum Paper Length...

  • Page 101: Appendix A Configuration Of The Printer

    Configuration of the Printer Appendix A What is Configuring This chapter describes how to use the menu settings via the operator panel to set up or configure the printer and computer system in a way that they can communicate correctly with each other. Communication between the two requires that both the computer operating system and the printer have the same communication settings or features.
  • Page 102 Appendix A Configuration of the printer Display Power on printer STOP  MACRO SELECT  [] -- [] PRINT OUT  [] PRINT OUT  PRINT OUT  PRINT OUT PRINT OUT  PRINT OUT PRINT OUT After feeding paper from the defined paper source, the printer starts to print.

  • Page 103: Standard Configuration

    Appendix A Configuration of the printer Standard Configuration Standard Configuration for the Fanfold Printer The standard configuration is reflected in the following printout provided that no parameters have been changed. PRINT OUT PH 00-XXXXXX-0 VERSION 208XXXXX INTERFACE ADJUSTMENT BUFFER 8 KBYTE AGC POSITION WORD LENGTH 8 BIT...
  • Page 104 Appendix A Configuration of the printer Standard Configuration for the Multi Purpose Printer with PNS PRINT OUT PH 00-XXXXXX-0 VERSION 208XXXXX INTERFACE ADJUSTMENT BUFFER 8 KBYTE AGC POSITION WORD LENGTH 8 BIT PLATEN GAP BAUD RATE 9600 BPS PAPER-IN ADJ. PARITY BIT EVEN TEAROFF ADJUST...

  • Page 105: Explanation Of The Printouts On The Previous

    Appendix A Configuration of the printer Explanation of the printouts on the previous pages The heading PRINT OUT gives information about the VERSION of the printer's firmware. The next two headings are followed by two columns of standard settings:  INTERFACE - for communication between the computer operating system and the printer it is necessary to have the same communication settings or features.

  • Page 106: Explanation Of The Individual Menu Items

    Appendix A Configuration of the printer Explanation of the Individual Menu Items Main Functions The following main functions are available:  MACRO SELECT To select one of the four macros which can be used for quickly changing the printer settings for different applications.
  • Page 107 Appendix A Configuration of the printer Function CHANGE MACRO  FONT A font is a family of characters with the same style and size. The appearance of the font can be varied by using attributes such as: s , bold, italic, etc. The fonts included in the PM SER/PAR/USB are: ...
  • Page 108 Appendix A Configuration of the printer  BARCODE QUALITÄT  NLQ quality to match the correspondence Capable typeface and Data  LQ quality according to Letter Quality Font Unnecessary printhead switching to avoid within to be printed documents it commend the Note: quality barcode font quality equalize.
  • Page 109 Appendix A Configuration of the printer  Page Length (only for fanfold paper) Page length is expressed in terms of lines within the range of 5 to 132 lines. Any page length setting is based on six lines per inch, regardless of the number of lines per inch selected in the line setting or defined by the application.
  • Page 110 Appendix A Configuration of the printer The setup of VERT.POS.ADJ. will become effective at the next page of the form. Attention: Therefore, it is recommended to perform VERT.POS.ADJ. sets up as long as the paper is in the park position and before starting the print job. ...
  • Page 111 Appendix A Configuration of the printer  HHH……………………….. Top Margin    ” Left Margin Right Margin 1….16  80, 132, 136  Bottom Margin ………………………..HHH  A-11...
  • Page 112 Appendix A Configuration of the printer  PERFORATION SKIP  If PERF. SKIP is set to YES the printer starts to print after specified top margin and stops printing before the bottom Margin.  If PERF. SKIP is set to NO the printer ignored the top and bottom margin and prints from the very first line to the very last.
  • Page 113 Appendix A Configuration of the printer  EMULATION The emulation determines the set of commands available for the printer (see Appendix D and E). You can activate the following emulations:  IBM PROPR.  IBM PROPR.AGM  EPSON LQ / ESC/P2 The selected Emulation will also be stored in the actual macro.
  • Page 114 Appendix A Configuration of the printer  $$-BEFEHLE This function causes $$ either to be printed as $$ or to activate ESC commands within an application. If this function is set to YES the characters are interpreted by the printer in the following way: Bei der Einstellung JA werden die Zeichen ...
  • Page 115 Appendix A Configuration of the printer  PRE-SEPARATION (is used for the ASF cassettes at the Multi-purpose Printer only) During normal printing, a sheet of paper is not inserted from an ASF cassette before the preceding sheet has been ejected. By selecting PRE-SEPARATION = YES the sheets follow each other more closely, thereby increasing the printer's throughput Main-Function INSTALLATION:...
  • Page 116 Appendix A Configuration of the printer  BAUD RATE (Only indicated if the serial interface is selected) Controls the speed of data transfer. The possible transfer rates are: 600, 1200, 2400, 4800, 9600 or 19200 bps.  PARITY (Only indicated if the serial interface is selected) The data transfer will be checked by an even or odd parity bit.
  • Page 117 Appendix A Configuration of the printer  PLATEN GAP This adjustment is to be seen as a correctional offset to the platen gap set by the AGC (Automatic Gap Control) function or a PCC (Programmable Copy Control) command. It influences all paper paths.
  • Page 118 Appendix A Configuration of the printer  Uni-Direct.CMD (Unidirectional Command) If NO is selected, commands for unidirectional printing will be ignored. The default setting of YES means that commands will be carried out to switch from bidirectional to unidirectional or reverse.
  • Page 119 Appendix A Configuration of the printer  SELF TEST This function can be some internal test printouts produce (see. Section 1.14 Test printouts). The printer has three test printouts and an interface test available:  TEST 1 shows a pattern of all printable characters. Thus, the print quality as well as the upper and left edges may be checked.
  • Page 120 Configuration Menu Fanfold Printer and Multi-Purpose Printer Press key followed by SELECT MARCOL MACRO 1 DATA FONT QUALITY CHANGE MACRO MACRO 2 ROMAN GRAPHIC QUALITY INSTALLATION MACRO 3 SAN SERIF BARCODE QUALITY SAVE MACRO 4 COURIER PRESTIGE SCRIPT FONT OCR B INTERFACE 10 cpi PRINT QUALITY...

  • Page 121: Appendix B System Interface Description

    System Interface Description Appendix B The Standard Personality Module (PM) offers three system interfaces:  serial interface with RS-232C support  ® Parallel IEEE 1284 / Centronics compatible  USB 2.0 compatible. The interfaces can be operated in different modes: ...

  • Page 122: Serial Interface Rs-232C

    Appendix B System Interface Description Serial Interface RS-232C The serial interface has one asynchronous V24 RS232C . Technical Character: The following parameters can be modified in SET-UP:  BAUD RATE: 2400, 4800, 9600, 19200 (bit/s)  BITS/CHARACTER: 7 or 8 bits ...

  • Page 123: Parallel Interface

    Appendix B System Interface Description Parallel Interface The parallel interface according to IEEE 1284 standard, support SPP, nibble, byte protocol. Technical Character: Centronics ®  Compatibility:  Logic circuits:  Data format: 7 or 8 bits  Logics level: 0 - 5 V ...

  • Page 124: Additional Information

    Appendix B System Interface Description Additional Information After Power-ON DTR and RTS are activated and the printer is ready to receive data. XOFF is sent, when the interface buffer has only space left for 256 more characters. XOFF is sent again, at a level of 128 characters buffer space.

  • Page 125: Usb Interface

    If the serial interface starts to receive data while the parallel interface is active, it is possible to receive 256 bytes of serial data. Any additional serial data will be lost. When the interface buffer is completely empty of serial data, and no new data has been received by the serial interface for more than 10 seconds, both interfaces are available for data transfer again.

  • Page 126: Appendix C Character Set Tables

    Character Set Tables Appendix C Code Page ISO 8859-1 ° À Ð à ð ¡ ± Á Ñ á ñ " ¢ ² Â Ò â ò £ ³ Ã Ó ã ó ¤ Ä Ô ä ô ¥ µ Å...

  • Page 127: Code Page Iso 8859-1

    Appendix C Character Set Tables Code Page ISO 8859-15 ° À Ð à ð ¡ ± Á Ñ á ñ " ¢ ² Â Ò â ò £ ³ Ã Ó ã ó Ž Ä Ô ä ô ¥ µ Å...
  • Page 128 Appendix C Character Set Tables Code Page ISO 8859-5 ■ А Р а р № Ё Б С б с ё Ђ В Т в т ъ " Ѓ Г У г у ѓ Є Д Ф д ф є Ѕ...
  • Page 129 Appendix C Character Set Tables Code Page ISO 8859-9 ° À Ǧ à ğ ¡ ± Á Ñ á ñ ¢ ² Â Ò â ò £ ³ Ã Ó ã ó ¤ Ä Ô ä ô ¥ µ Å Õ...

  • Page 130: Code Page Ibm All Character Set

    Appendix C Character Set Tables Code Page IBM All Character Set ∅ ▸ SP ░ ╨ 0 @ P Ç É á └ α ≡ 1 ☺ ◂ ▒ ┴ ╤ ü æ í β ± 2 ☻ ↕ ʺ ▓...
  • Page 131 Appendix C Character Set Tables Code Page IBM Set 1 National Version = USA ░ ╨ p NUL á └ α ≡ ▒ ┴ ╤ DC1 ! DC1 í β ± DC2 ʺ ▓ ┬ ╥ DC2 ó Γ ≥ ├...

  • Page 132: National Version Ibm Set 1

    Appendix C Character Set Tables National Version IBM Set 1 Character Code (Hex) 23 24 40 5B 5C 5D 5E 60 7B 7C 7D 7E 1: USA 2: FRANCE à ° ç § é ù è 3: GERMANY § Ä Ö...
  • Page 133 Appendix C Character Set Tables Code Page IBM Set 2 ░ ╨ Ç É á └ α ≡ ▒ ┴ ╤ DC1 ! ü æ í β ± DC2 ʺ ▓ ┬ ╥ é Æ ó Γ ≥ ♥ DC3 # ├...

  • Page 134: National Version Ibm Set 2

    Appendix C Character Set Tables National Version IBM Set 2 Character Code (Hex) ¢ ¥ 1: USA à ° ç § é ù è ¢ ¥ 2: FRANCE § Ä Ö Ü ä ö ü ß ¢ ¥ 3: GERMANY £...

  • Page 135: Ibm Code Pages

    Appendix C Character Set Tables IBM Code Pages Code Page Countries 1: Code Page 437 2: Code Page 850 Germany, UK, Denmark, Sweden, Italy, Spain, Japan, Latin Am., Turkey 3: Code Page 858 Germany, UK, Denmark, Sweden, Italy, Spain, Japan, Latin Am, Turkey;...

  • Page 136: Ibm Code Page 437 Usa, Ascii, And Graphics

    Appendix C Character Set Tables C.10 IBM Code Page 437 USA, ASCII, and Graphics ∅ ░ ╨ ▸ Ç É á └ α ≡ ☺ ▒ ┴ ╤ ◂ ü æ í β ± ☻ ↕ ʺ ▓ ┬ ╥ é...

  • Page 137: Ibm Code Page 850 Greek (437) And Iso 8859-1

    Appendix C Character Set Tables C.11 IBM Code Page 850 Greek (437) and ISO 8859-1 ∅ ░ ▸ Ç É á └ ð Ó ☺ ▒ ┴ ◂ ü æ í Ð β ± ☻ ↕ ʺ ▓ ┬ é Æ...

  • Page 138: Ibm Code Page 858 Latin 1 With € Sign

    Appendix C Character Set Tables C.12 IBM Code Page 858 Latin 1 with € Sign ∅ ░ ▸ Ç É á └ ð Ó ☺ ◂ ▒ ┴ ü æ í Ð β ± ☻ ↕ ʺ ▓ ┬ é Æ...

  • Page 139: Ibm Code Page 860 Portugal

    Appendix C Character Set Tables C.13 IBM Code Page 860 Portugal ∅ ░ ╨ ▸ Ç É á └ α ≡ ☺ ▒ ┴ ╤ ◂ ü À í β ± ☻ ↕ ʺ ▓ ┬ ╥ é È ó Γ...

  • Page 140: Ibm Code Page 863 Canada, French

    Appendix C Character Set Tables C.14 IBM Code Page 863 Canada, French ∅ ░ ╨ ▸ Ç É └ α ≡ ☺ ▒ ┴ ╤ ◂ ü È β ± ☻ ↕ ʺ ▓ ┬ ╥ é Ê ó Γ ≥...

  • Page 141: Ibm Code Page 865 Norway

    Appendix C Character Set Tables C.15 IBM Code Page 865 Norway 9 A B C D E ∅ ░ ╨ ▸ Ç É á └ α ≡ ☺ ▒ ┴ ╤ ◂ ü æ í β ± ☻ ↕ ʺ ▓...

  • Page 142: Ibm Code Page 857 Turkey

    Appendix C Character Set Tables C.16 IBM Code Page 857 Turkey ░ á └ Ó ▒ ┴ í ß ± ▓ ┬ " ò Ê Ô ├ ú │ Ë Ò ¾ ┤ ñ È õ ¶ ┼ Ñ Á Õ...

  • Page 143: Epson Extended Graphics Code Page

    Appendix C Character Set Tables C.17 EPSON Extended Graphics Code Page ░ ╨ Ç É á └ α ≡ ▒ ┴ ╤ ü æ í β ± ʺ ▓ ┬ ╥ é Æ ó Γ ≥ ├ ╙ â ô ú...

  • Page 144: National Version Epson Extended Graphics Code Page

    Appendix C Character Set Tables C.18 National Version EPSON Extended graphics Code Page Character Code (Hex) 1: USA 2: FRANCE à ° ç § é ù è 3: GERMANY § Ä Ö Ü ä ö ü ß 4: UK £ 5: DENMARK Æ...

  • Page 145: Epson Italic Code Page

    Appendix C Character Set Tables C.19 EPSON Italic Code Page " " & & < < > > This Code Page is selected by the command ESC t. C-21...

  • Page 146: National Version Epson Italic Code Page (Part 1)

    Appendix C Character Set Tables C.20 National Version EPSON Italic Code Page (part 1) Character Code (Hex) 1: USA 2: FRANCE à ° ç § é ù è 3: GERMANY § Ä Ö Ü ä ö ü ß 4: UK £...

  • Page 147: National Version Epson Italic Code Page (Part 2)

    Appendix C Character Set Tables C.21 National Version EPSON Italic Code Page (part 2) Character Code (Hex) A4 C0 DB DC DD DE E0 FB FC 1: USA 2: FRANCE à ° ç § é ù è 3: GERMANY § Ä...

  • Page 148: Code Pages For The Eastern European Countries (Ee)

    Appendix C Character Set Tables Code Pages for the Eastern European Countries (EE) C.22 Code Page 437 Greek ░ ╨ Α Ρ ι └ ω ʼ Ω ▒ ┴ ╤ Β Σ κ ἀ ± ʺ ▓ ┬ ╥ Γ Τ...

  • Page 149: Code Page 851 Greek

    Appendix C Character Set Tables C.23 Code Page 851 Greek ░ Ç Ί ϊ └ Τ ζ ▒ ┴ ü Υ η ± ʺ ▓ ┬ é ʼ Ο ὀ Φ θ υ ├ â ô ὐ │ Χ ι ϕ...

  • Page 150: Code Page 928 Greek

    Appendix C Character Set Tables C.24 Code Page 928 Greek Ç É ̊ ΐ Π ΰ π ü æ ‛ ± Α Ρ α ρ ʺ é Æ ’ ² Β β ς â ô £ ³ Γ Σ γ σ...
  • Page 151 Appendix C Character Set Tables C.25 Code Page 855 Cyril ░ ђ љ а └ л Я – ▒ ┴ Ђ Љ А Л р ы ▓ ┬ ѓ њ б м Р Ы " ├ Ѓ Њ Б │ М...

  • Page 152: Code Page 866 Russia

    Appendix C Character Set Tables C.26 Code Page 866 Russia ░ ╨ А Р а └ р Ё ▒ ┴ ╤ Б С б с ё ʺ ▓ ┬ ╥ В Т в т Є ├ ╙ Г У г │...

  • Page 153: Code Page 869 Greek

    Appendix C Character Set Tables C.27 Code Page 869 Greek ░ Ί ϊ └ Τ ζ − ▒ ┴ Ї ΐ Υ η ± ʺ ▓ ┬ ʼ Ο ὀ Φ θ υ ├ ὐ │ Χ ι ϕ ┤ Α...
  • Page 154 Appendix C Character Set Tables C.28 Code Page 852 Multilingual Latin 2 ░ Ç É á └ ð Ó ▒ ┴ ü Ĺ í Ð ß ̋ ʺ ▓ ┬ é Ľ ó Ď ô ̨ ├ â ô ú │...

  • Page 155: Code

    Appendix C Character Set Tables C.29 Code Page KAMENICKY ░ ╨ Č É á └ α ≡ ▒ ┴ ╤ ü ž í β ± ʺ ▓ ┬ ╥ é Ž ó Γ ≥ ├ ╙ ď ô ú │ ∏...
  • Page 156 Appendix C Character Set Tables C.30 Code Page ISO LATIN 2 ̊ Ŕ Ð ŕ ð Ą ą Á Ń á ń ʺ ̆ ˛ Â Ň â ň Ł ł Ă Ó ă ó ¤ Ä Ô ä ô Ľ...

  • Page 157: Code

    Appendix C Character Set Tables C.31 Code Page MAZOVIA ░ ╨ Ç Ę Ź └ α ≡ ▒ ┴ ╤ ü ę Ż β ± ʺ ▓ ┬ ╥ é ł ó Γ ≥ ├ ╙ â ô Ó │ π...

  • Page 158: Code Page 437 Hun

    Appendix C Character Set Tables C.32 Code Page 437 HUN ░ ╨ Ç É á └ α ≡ ▒ ┴ ╤ ü æ í β ± ʺ ▓ ┬ ╥ é Æ ó Γ ≥ ├ ╙ â ő ú │...

  • Page 159: Code Page 852 See

    Appendix C Character Set Tables C.33 Code Page 852 SEE ░ Ž ž Ç É á └ ð Ó ▒ ┴ ü Ľ í Ð ß ̋ ʺ ▓ ┬ é ľ ó Ď Ô ̨ ├ â ô ú │...
  • Page 160 Appendix C Character Set Tables C.34 Code Page 866 LAT ∅ ░ ▸ ‛ А а └ Š р Ē ☺ ▒ ┴ ╤ ◂ Б б с ē ☻ ▓ ┬ ↕ " В в č т Ģ ♥ ⌈...

  • Page 161: Code Page Win Lat2

    Appendix C Character Set Tables C.35 Code Page WIN LAT2 ∅ ▸ ̊ Ŕ Ð ŕ ð ☺ ◂ ̆ ± Á Ń á ń ☻ ʺ ↕ ́ ̆ ˛ Â Ň â ň ♥ ‼ ‟ Ł ł Ă...

  • Page 162: Code Pages For The Eastern European Countries (Ee2)

    Appendix C Character Set Tables Code Pages for the Eastern European Countries (EE2) C.36 Code Page 771 Lithuanian and Russian ∅ ░ ╨ ▸ А а └ р Ę ☺ ▒ ┴ ╤ ◂ Б б с ę ☻ ▓ ┬...
  • Page 163 Appendix C Character Set Tables C.37 Code Page 773 Latin 7 (Baltic old standard) ∅ ░ ▸ Ċ É Ā └ ̊ Ó Ę ☺ ▒ ┴ ╤ ◂ ü æ Ī ß ę ☻ ▓ ┬ ↕ " é Æ...

  • Page 164: Code Page 774 Lithuanian = Ibm 1118

    Appendix C Character Set Tables C.38 Code Page 774 Lithuanian = IBM 1118 ∅ ░ ▸ Ç É á └ ą α ≡ ☺ ▒ ┴ ◂ ü æ í č β ± ☻ ▓ ┬ ↕ " é Æ ó...

  • Page 165: Code Page 775 (Baltic Rim)

    Appendix C Character Set Tables C.39 Code Page 775 (Baltic Rim) ∅ ░ ▸ Ċ É Ā └ ą Ó ☺ ▒ ┴ ◂ ü æ Ī č β ± ☻ ▓ ┬ “ ↕ " é Æ ó ę Ō...

  • Page 166: Code Page Baltic Rim

    Appendix C Character Set Tables C.40 Code Page BALTIC RIM ∅ ▸ ° Ą Š ą š ☺ ◂ ˎ ± Į Ń į ń ” ☻ ↕ " ˊ ¢ ² Ā Ņ ā ņ ♥ ‼ £ ³ Ć...

  • Page 167: Code Page 1251 Win Cyrillic

    Appendix C Character Set Tables C.41 Code Page 1251 Win Cyrillic ° А Р а р ў ± Б С б с ʺ ӯ І В Т в т Ј і Г У г у ¤ г Д Ф д ф...

  • Page 168: Code Page 1125 / 866 Ukrainian

    Appendix C Character Set Tables C.42 Code Page 1125 / 866 Ukrainian ░ ╨ ́ а └ р Ё ▒ ┴ ╤ б с ё ʺ ▓ ┬ ╥ в т Г ├ ╙ г │ у г ┤ ╘ д...

  • Page 169: Code Page Ocr-A

    Appendix C Character Set Tables C.43 Code Page OCR-A NUL DLE ┌│ SOH DC1 ʺ STX DC2 ETX DC3 EOT DC4 ENQ NAK ACK SYN & BEL ETB ̓ ¬ < > ┐ └ │ █ ╵┬ ╵ C-43...

  • Page 170: Appendix D Ibm Proprinter Quick Reference

    Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference IBM ProPrinter Quick Reference Appendix D This appendix contains basic information on the IBM ProPrinter 4207, 4208 XL 24 Emulation commands supported in four Printer types: Fanfold Printer Multi-purpose Printer High Speed Fanfold Printer High Speed Fanfold Printer with Cutter Some commands or parameters may be different for a specific Printer.
  • Page 171 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference or parameter applies. Characters used in control functions appear in monospaced type. Table 1 explains some of the conventions used. A pair of numbers separated by a slash ( / ) character indicates Column/Row notation. This notation refers to the location of a character in a standard code table, such as ASCII.
  • Page 172 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 2: Control Codes Column/Row Mnemonic Function Null Backspace Horizontal Tab Line Feed Vertical Tab Form Feed Carriage Return Double Width Printing By Line Condensed Printing (17.1 cpi) Select Printer ½...
  • Page 173 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 3: Vertical Form Handling Escape Sequence Mnemonic Function ESC 0 Set Line Space to " ESC 1 Set Line Space to " ESC 2 Start Variable Line Space ESC 4 Set Top of Form ESC 5 P1 Carriage Return Function...
  • Page 174 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 3 (Cont.): Vertical Form Handling Escape Sequence Mnemonic Function ESC ] Reverse Line Feed ESC ] > s Insert Form Native Command ESC [ > P1 ; P2 ; P3 ; P4 s SPSIF Select Paper Source and Insert Native Command Form, Print Gap, Paper Exit, Cut-Mode (any parameter >...
  • Page 175 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Escape Sequence Mnemonic Function ESC [ ; ; P3 s Paper Exit: Native Command P3 = 0 : Paper Exit Stacker ***) P3 = 1 : Paper Exit Front Side **) (confirmed by Start/Stop key) P3 = 2 : Paper Exit Front Side **) (not confirmed by Start/Stop key, controlled by application)
  • Page 176 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 4: Horizontal Form Handling and Printing Modes Escape Sequence Function ESC : Select Elite (12 cpi) ESC - P1 Cancel / Select Underline P1 = 0/0 cancel Underline Printing P1 = 0/1 set Underline Printing ESC _ P1 Cancel / Select Overline Printing...
  • Page 177 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Escape Sequence Function ESC E Select Emphasized Printing (bold) ESC F Cancel Emphasized Printing (bold) ESC G Select Double Strike Printing (bold) ESC H Cancel Double Strike Printing ESC I P1 Select Character Mode P1 = 0/0 : Draft, 10 cpi P1 = 0/1 : Draft, Proportional...
  • Page 178 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 4 (Cont.): Horizontal Form Handling and Printing Modes Escape Sequence Mnemonic Function ESC W P1 Cancel / Select Double Width P1 = 0/0 or 0: cancel Double Width P1 = 0/1 or 1: select Double Width ESC X P1 P2 Set Left and Right Margins P1: Left Margin...
  • Page 179 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Escape Sequence Mnemonic Function ESC [ P1 ; P2 x Select Font and Character Pitch (parameter P1 or P2 may be skipped, see following alternative command sequences) ESC [ P1 x P1 selects the font possible format of P1 = 0 or missing : Font is unchanged...
  • Page 180 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 5: Character Set Selection Escape Sequence Mnemonic Function ESC 6 Select Character Set 2 ESC 7 Select Character Set 1 ESC \ P1 P2 Print from All Character Set Number of codes = (P1 + P2 * 256) (Pn = 0/0...F/F) ESC ^ P1 Print Single Character from All Character Set...
  • Page 181 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 6: Graphics Modes Escape Sequence Mnemonic Function ESC 3 P1 Set Line Space to P1/216" (P1/180") P1/216 lpi (non AGM), P1/180 lpi (AGM) (P1 = 0/1...F/F) ESC J P1 Perform P1/216"...
  • Page 182 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 6 (Cont.): Graphics Modes Escape Sequence Mnemonic Function ESC [ g P1 P2 P3 v1 . . . vn Select Various Graphics Modes (IBM) P1 + P2 * 256 = number of data bytes + 1 (P1,P2 = 0/0...F/F) v1 ..
  • Page 183 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 7: Further Control Sequences, supported by IBM Emulation Mode (Native Commands) Escape Sequence Mnemonic Function ESC [ Control String Introducer (CSI) for 'ESC [' Control String Introducer (CSI) for 'ESC' ESC * P1 P2 P3 v1 .
  • Page 184 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 7 (Cont.): Further Control Sequences, supported by IBM Emulation Mode (Native Commands) Escape Sequence Mnemonic Function ESC [ P1 ; P2 w SNVCT Set National Version and Code Table P1 = 1 - 15 national version depending on selected character set (see Appendix C Char.
  • Page 185 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Escape Sequence Mnemonic Function ESC [ P1 ; P2 SP r SM # Select Macro and Change Emulation P1 = 1: Macro 1 P1 = 2: Macro 2 P1 = 3: Macro 3 P1 = 4: Macro 4 P2 = 0: no change of emulation P2 = 1: EPSON Emulation...
  • Page 186 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Escape Sequence Mnemonic Function ESC [ P1 a Set Horizontal Position Relative P1 = print column (P1 = 0...9999) ESC [ P1 b Repeat Character P1 = number of repetitions (P1 = 1...999) ESC [ P1 d Set Vertical Position Absolute...
  • Page 187 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Escape Sequence Mnemonic Function ESC [ P1 m Set Graphic Rendition P1 = 0: default - no rendition or rendition reset P1 = 1: bold P1 = 3: italics P1 = 4: underline P1 = 9: crossed out or strike through printing...
  • Page 188 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 8 (Cont.): BARCODE (Native Commands) Escape Sequence Mnemonic Function ESC [ ; P2 ; P3 ; P4 ; P5 ; P6 ; P7 SP z BARCODE Programming Barcode Header P2: Barcode typ P3: Height of barcode P4: Width of the thin bars...
  • Page 189 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Page Hex Code Format Null Backspace Horizontal Tab Line Feed Vertical Tab Form Feed Carriage Return Select Double Width (one line) Select Condensed Printing (17.1 cpi) Select Printer Select Pica (10 cpi) Buffer Data Flow Control Cancel Double Width Cancel Buffer...
  • Page 190 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Page Hex Code Format 1B 48 Cancel Double Strike 1B 4D Reverse Line Feed 1B 4F Cancel Automatic Perforation Skip Restore Horizontal Tabs to Default D-14 1B 52 D-14 1B 54 Cancel Superscript/Subscript 1B 5D Reverse Line Feed...
  • Page 191 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Page Hex Code Format D-12 AGC / PCC Procedure 1B 5B 3B P D-12 Set Code Table 1B 5B 3B P 1B 5B 3B P 3B P 3B P 3B P Bar Code Header 3B P 20 7A...
  • Page 192 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Hex - Decimal Conversion Table 96 112 128 144 160 176 192 208 224 240 97 113 129 145 161 177 193 209 225 241 98 114 130 146 162 178 194 210 226 242 99 115 131 147 163 179 195 211 227 243 84 100 116 132 148 164 180 196 212 228 244 85 101 117 133 149 165 181 197 213 229 245...
  • Page 193 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference EPSON LQ 2550 and ESC/P2 Quick Appendix E Reference This appendix contains basic information on the EPSON LQ 2550 and ESC/P2 Printer Emulation commands supported in four Printer types: Fanfold Printer Multi-purpose Printer High Speed Fanfold Printer High Speed Fanfold Printer with Cutter...
  • Page 194 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference In those cases it will be indicated by the PINTER NAME as shown above, to which printer a command or parameter applies. Characters used in control functions appear in monospaced type. Table 1 explains some of the conventions used.

  • Page 195: Appendix E Epson Lq 2550 And Esc/P2 Quick Reference

    Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table 2: Control Codes Escape Sequence Mnemonic Function Null Backspace Horizontal Tab Line Feed Vertical Tab Form Feed Carriage Return Double Width Printing By Line Condensed Printing Select Printer ½ Select Pica (10 cpi) Deselect Printer Cancel Double Width Printing By Line Cancel Buffer...
  • Page 196 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table 4: Vertical Form Handling Escape Sequence Mnemonic Function ESC 0 Set Line Space to " ESC 2 Set Line Space to " ESC 3 P1 Set Line Space to " (P1 = 0...255) ESC + P1 Set Line Space to...
  • Page 197 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Escape Sequence Mnemonic Function ESC EM P1 Form Feed and ASF Control EM = 1/9 P1 = 0/1 or 1: ASF Bin 1 P1 = 0/2 or 2: ASF Bin 2 P1 = 0/3 or 3: ASF Bin 3 P1 = 8/2 or R: (5/2) eject sheet ESC [ >...
  • Page 198 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Escape Sequence Mnemonic Function ESC [ ; ; P3 s Paper Exit: ***) Native Command P3 = 0 : Paper Exit Stacker P3 = 1 : Paper Exit Front Side (confirmed by Start/Stop key) P3 = 2 : Paper Exit Front Side (not confirmed by Start/Stop key, controlled by...
  • Page 199 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table 5: Horizontal Form Handling and Printing Modes Escape Sequence Mnemonic Function ESC SO Select Double Width for One Line ESC SI Select Condensed 10 cpi -> 17 cpi 12 cpi -> 20 cpi 15 cpi ->...
  • Page 200 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Escape Sequence Mnemonic Function ESC & NUL P1 P2 P3 P4 P5 v1 .. vn Define User Defined Characters P1 = first code table position P2 = last code table position (P1 = 0/0...P2) (P2 = P1...7/F) P3 = front space (P3 = 0/0...5/0)
  • Page 201 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table 5: (Cont.) Horizontal Form Handling and Printing Modes Escape Sequence Mnemonic Function ESC ( - P1 P2 P3 P4 P5 Select Line Marking P1 = 0/3 (fixed value) P2 = 0/0 (fixed value) P3 = 0/1 (fixed value) P4 = 0/1 : underline P4 = 0/2 : strike through...
  • Page 202 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Escape Sequence Mnemonic Function ESC D P1 P2 . . . P32 NUL Set Horizontal Tabs P1 ... P32 = tab position (Pn = 0/1..F/F) ESC E Select Emphasized Printing (bold) ESC F Cancel Emphasized Printing ESC G...
  • Page 203 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Escape Sequence Mnemonic Function ESC g Select Pitch 15 cpi ESC k P1 Select Font P1 = 0/0 : ROMAN P1 = 0/1 : SAN SERIF P1 = 0/2 : COURIER P1 = 0/3 : PRESTIGE P1 = 0/4 : SCRIPT P1 = 0/5 : OCR-B...
  • Page 204 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Escape Sequence Mnemonic Function ESC w P1 Cancel/Select Double Height P1 = 0/0 or 3/0 : cancel P1 = 0/1 or 3/1 : select ESC x P1 Select Character Quality P1 = 0/0 or 3/0 : select Draft P1 = 0/1 or 3/1 : select LQ or NLQ dep.
  • Page 205 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Escape Sequence Mnemonic Function ESC [ P1 ; P2 x Select Font and Character Pitch (any Native Command, parameter P1 or P2 may be skipped, see following alternative command sequences) ESC [ P1 x P1 selects the font: possible format of P1 = 0 or missing : Font is unchanged...
  • Page 206 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Escape Sequence Mnemonic Function ESC ? K P1 Reassign Graphics Mode K Standard Density, 8 dpc ESC ? L P1 Reassign Graphics Mode L Double Density, 8 dot per column ESC ? Y P1 Reassign Graphics Mode Y Double Density &...
  • Page 207 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table 6: (Cont.) Graphics Modes Escape Sequence Mnemonic Function ESC [ g P1 P2 P3 v1 . . . vn Select Various Graphics Modes (IBM) P1 + P2 * 256 = number of data bytes + 1 (P1,P2 = 0/0...F/F) v1 ..
  • Page 208 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table 7: Character Set Selection Escape Sequence Mnemonic Function ESC 6 Enlarge Print Code Area (128-159 dec.) ESC 7 Enable Upper Control Code (128-159 dec.) ESC R P1 Select National Version P1 = 0/0 : USA P1 = 0/1 : FRANCE P1 = 0/2 : GERMANY P1 = 0/3 : UK...
  • Page 209 Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference Table 8: Further - Control Sequences, supported by EPSON LQ Emulation Mode (Native Commands) Escape Sequence Mnemonic Function ESC [ Control String Introducer (CSI) for ESC [ control String Introducer for ESC ESC [ <...
  • Page 210 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 8 (Cont.): Further Control Sequences, supported by EPSON LQ Emulation Mode (Native Commands) Escape Sequence Mnemonic Function ESC [ P1 ; P2 w SNVCT Set National Version and Code Table P1 = 1 - 15 national version Depending on selected character set (see Appendix C Char.
  • Page 211 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 8 (Cont.): Barcode mode (Native Commands) Escape Sequence Mnemonic Function ESC [ ; P2 ; P3 ; P4 ; P5 ; P6 ; P7 SP z BARCODE Programming Barcode Header P2: Barcode typ P3: Height of barcode P4: Width of the thin bars...
  • Page 212 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 9: ESC / P2 Commands Escape Sequence Mnemonic Function ESC ( c P1 P2 P3 P4 Set page format Sets top and bottom margins in the defined units. P1 = 04 00 tm = P2 + P3 x 256...
  • Page 213 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 9: (Cont.) ESC / P2 Commands Escape Sequence Mnemonic Function ESC X P1 P2 P3 Select font by pitch and point P1 = 0 : No change in pitch P1 = 1 : Selects proportional spacing P1 = 18, 24, 30, 36, 42, 48, 60 or 72 Selects fixed pitch equal to 360/m cpi...
  • Page 214 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 9: (Cont.) ESC / P2 Commands Escape Sequence Mnemonic Function ESC ( t n1 n2 Pn P1 P2 Assign character table n1 = 3, n2 = 0 Pn = Parameter of ESC t : 0, 1, 2, 3, "0","1", "2" or "3" P1 P2 = character table 0 0 : italic 1 0 : PC 437 (USA)
  • Page 215 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Table 9: (Cont.) ESC / P2 Commands Escape Sequence Mnemonic Function ESC ( ^ P1 P2 Print data as characters Prints n data bytes as characters, not control codes pd = P1 + P2 x 256 ESC ( G P1 P2 Select graphics mode P1 = 01 00...
  • Page 216 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Hex Code Format Page Null Backspace Horizontal Tab Line Feed Vertical Tab Form Feed Carriage Return Select Printer Cancel Condensed Mode Deselect Printer Cancel Double Width Cancel Buffer Escape Space Delete 1B 0E Select Double Width for One Line...
  • Page 217 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Hex Code Format Page 1B 4F Cancel Automatic Perforation Skip 1B 50 Select Pica (10 cpi) E-10 1B 54 Cancel Superscript/Subscript E-10 1B 67 Select Pitch 15 cpi E-11 24 24 Control String Introducer for ESC [ E-17 24 24 2F...
  • Page 218 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Hex Code Format Page 1B 78 P Select Character Quality E-12 1B 24 P Set Absolute Horizontal Position 1B 26 00 P data Define User Defined Characters 1B 28 2D P Select Line Marking 1B 28 43 P Set Page Length in defined Unit...
  • Page 219 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Hex Code Format Page 1B 5B 3E P 3B P 3B P 3B P Select Paper Source and Insert Form 1B 5B 3F 30 68 Set Mode Barcode E-19 1B 5B 3F 30 6C Reset Mode Barcode E-19 1B 5B P...
  • Page 220 Appendix D IBM ProPrinter 4207, 4208 XL 24 Quick Reference Hex - Decimal Conversion Table 96 112 128 144 160 176 192 208 224 240 97 113 129 145 161 177 193 209 225 241 98 114 130 146 162 178 194 210 226 242 99 115 131 147 163 179 195 211 227 243 84 100 116 132 148 164 180 196 212 228 244 85 101 117 133 149 165 181 197 213 229 245...

  • Page 221: Appendix F Bar Code Quick Reference

    Bar Code Quick Reference Appendix F Introduction The bar code print facility is available in all three emulations. Programming There are three escape sequences to print bar codes  The first sequence is to define the Bar Code Header. The type of bar code as well as all parameters are selected by a header.
  • Page 222 Appendix F Bar Code Quick Reference Bar Code Header Parameters Bar Code type  default = 101 (Code 39 horizontal) Type horizontal horizontal vertical vertical + + human human readable readable text text Code 39 2 of 5 industrial 2 or 5 interleaved Codabar (Monarch) EAN 8 applicable...
  • Page 223 Appendix F Bar Code Quick Reference Width of the thin bars (default: " = 0.35 mm) Note: The width of bars and gaps should be equal. For this, the parameters P 4 and P 5 should not deviate more than one step. for horizontal Bar Code inch 2/144 0,35...
  • Page 224 Appendix F Bar Code Quick Reference Ratio Width to Thin (default: 0 (2 to 1)) Code 39 EAN 8 2 of 5 industrial EAN 13 2 of 5 interleaved UPC-A value Codabar UPC-E Code 93 MSI mod 10/10 Code 128 2.0 to 1 2.5 to 1 3.0 to 1...
  • Page 225 Appendix F Bar Code Quick Reference Bar Code Programming Examples Note: All examples are coded in standard uni-directional printing - that means the parameter "P 7 " is not used. In the following examples the symbol 8 is standing for "Space". The small square before and after the printed bar code indicates the actual print position.
  • Page 226 Appendix F Bar Code Quick Reference Bar Code Example for 2 of 5 Interleaved Bar Code Header: ESC [ ; P ESC [ ; 203 ; 8 ; 1 ; 1 ; 1 ; Start Bar Code: ESC [ ? 0 h Data: : 1 2 3 4 5 6 7 8 9 0 ;...
  • Page 227 Appendix F Bar Code Quick Reference Bar Code Example for EAN 8 Bar Code Header: ESC [ ; P ESC [ ; 205 ; 8 ; ; ; 1 ; Start Bar Code: ESC [ ? 0 h Data: 4 0 1 2 3 4 5 5 Stop Bar Code: ESC [ ? 0 l Bar Code Example for EAN 8 ADD-2...
  • Page 228 Appendix F Bar Code Quick Reference Bar Code Example for EAN 8 ADD-5 Bar Code Header: ESC [ ; P ESC [ ; 205 ; 8 ; ; ; 1 ; Start Bar Code: ESC [ ? 0 h Data: 40123455861 04 Stop Bar Code: ESC [ ? 0 l...
  • Page 229 Appendix F Bar Code Quick Reference Bar Code Example for EAN 13 ADD-2 Bar Code Header: ESC [ ; P ESC [ ; 206 ; 8 ; ; ; 1 ; Start Bar Code: ESC [ ? 0 h Data: 4 12 34 5 678 901812 Stop Bar Code: ESC [ ? 0 l...
  • Page 230 Appendix F Bar Code Quick Reference Bar Code Example for Code 93 Bar Code Header: ESC [ ; P ESC [ ; 207 ; 8 ; 1 ; 1 ; ; Start Bar Code: ESC [ ? 0 h Data: a C + O + D + E 9 3 W I e Stop Bar Code:...
  • Page 231 Appendix F Bar Code Quick Reference Bar Code Example for UPC-E Bar Code Header: ESC [ ; P ESC [ ; 209 ; 8 ; ; ; 1 ; Start Bar Code: ESC [ ? 0 h Data: 01234565 Stop Bar Code: ESC [ ? 0 l Bar Code Example for UPC-E ADD-2 Bar Code Header:...
  • Page 232 Appendix F Bar Code Quick Reference Bar Code Example for UPC-E ADD-5 Bar Code Header: ESC [ ; P ESC [ ; 209 ; 8 ; ; ; 1 ; Start Bar Code: ESC [ ? 0 h Data: 01234565861 04 Stop Bar Code: ESC [ ? 0 l Bar Code Example for UPC-A...
  • Page 233 Appendix F Bar Code Quick Reference Bar Code Example for UPC-A ADD-2 Bar Code Header: ESC [ ; P ESC [ ; 210 ; 8 ; ; ; 1 ; Start Bar Code: ESC [ ? 0 h Data: 01234567890512 Stop Bar Code: ESC [ ? 0 l Bar Code Example for UPC-A ADD-5...
  • Page 234 Appendix F Bar Code Quick Reference Bar Code Example for Code 128 Bar Code Header: ESC [ ; P ESC [ ; 211 ; 8 ; 1 ; 1 ; ; Start Bar Code: ESC [ ? 0 h Data: Code 128 Stop Bar Code: ESC [ ? 0 l...
  • Page 235 Appendix F Bar Code Quick Reference Bar Code Example for POSTNET Bar Code Header: ESC [ ; P ESC [ ; 112 ; ; ; ; ; Start Bar Code: ESC [ ? 0 h Data: 1 2 3 4 5 6 7 8 9 0 1 Stop Bar Code: ESC [ ? 0 l Data:...
  • Page 236 Appendix F Bar Code Quick Reference Programming two Bar Codes symbols on the same line Bar Code Header: ESC [ ; P ESC [ ; 201 ; 7 ; 0 ; 0 ; 1 ; Start Bar Code: ESC [ ? 0 h Data: 3 9 * 8 8 8...
  • Page 237 Appendix F Bar Code Quick Reference Programming two Bar Codes symbols in landscape on the same line Bar Code Header: ESC [ ; P ESC [ ; 401 ; 7 ; 0 ; 0 ; 1 ; Start Bar Code: ESC [ ? 0 h Data: 3 9 *...
  • Page 238 Appendix F Bar Code Quick Reference Programming two Bar Codes symbols in landscape separated by CR / LF Bar Code Header: ESC [ ; P ESC [ ; 401 ; 7 ; 0 ; 0 ; 1 ; Start Bar Code: ESC [ ? 0 h Data: 3 9 *...

  • Page 239: Appendix G Print Samples Of Resident Fonts

    Appendix G Print Sampies of Resident Fonts Print Samples of Resident Fonts Appendix G The Printer with the Personality Module (PM SER/PAR) provides the following resident fonts:...
  • Page 240 Appendix G Print Sampies of Resident Fonts...
  • Page 241 Appendix G Print Samples of Resident Fonts...
  • Page 242 Appendix G Print Samples of Resident Fonts...

  • Page 243: Character Pitches

    Appendix G Print Samples of Resident Fonts Character Pitches...
  • Page 244 Appendix G Print Samples of Resident Fonts...
  • Page 245 Appendix G Print Samples of Resident Fonts...
  • Page 246 Appendix G Print Samples of Resident Fonts...
  • Page 247 Appendix G Print Samples of Resident Fonts...
  • Page 248 Appendix G Print Sampies of Resident Fonts...

This manual is also suitable for:

Pp 405

Table of Contents
