122 Operator Maintenance
_______________________________________________________________________________________________
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es

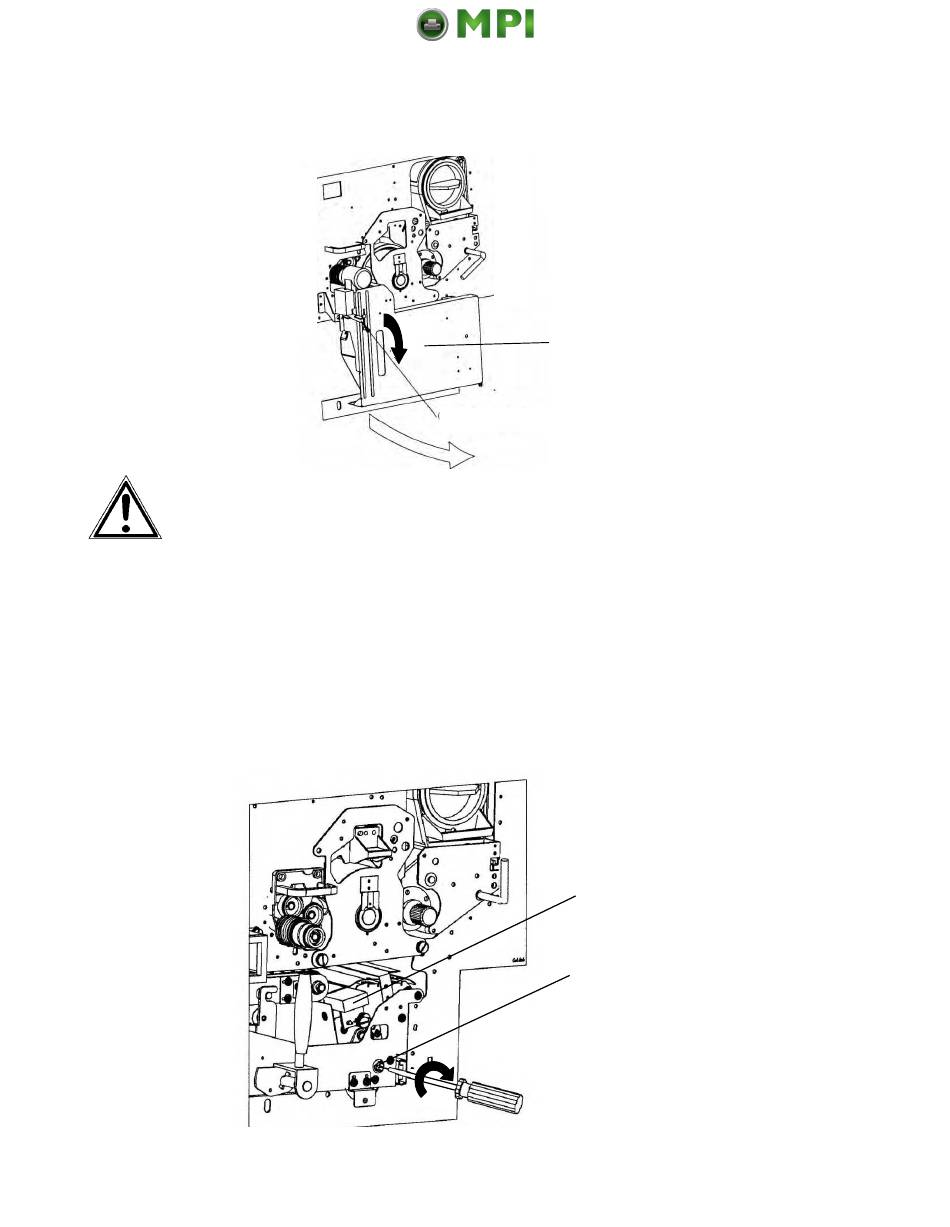

4. Open the waste toner recovery unit.
Before performing the next step make sure the transfer-/separator
charger is in its "down" position to avoid damaging the
photoreceptor drum.
Please go on like this:
- Take a slotted screwdriver and turn the transfer elevator drive shaft
(see following figure) clockwise, for example. While doing this,
watch the movement of the transfer charger.
- If the charger has moved upwards, please turn the drive shaft
backwards now until the charger is in the down position.
- If the charger has moved downwards, continue in turning the drive
shaft until the charger is in the deepest position.
Operator's Manual SOLID 60E-2
Waste toner
recovery unit
Open lever (black)
Transfer charger
Transfer elevator
drive shaft
Edition 2.1
