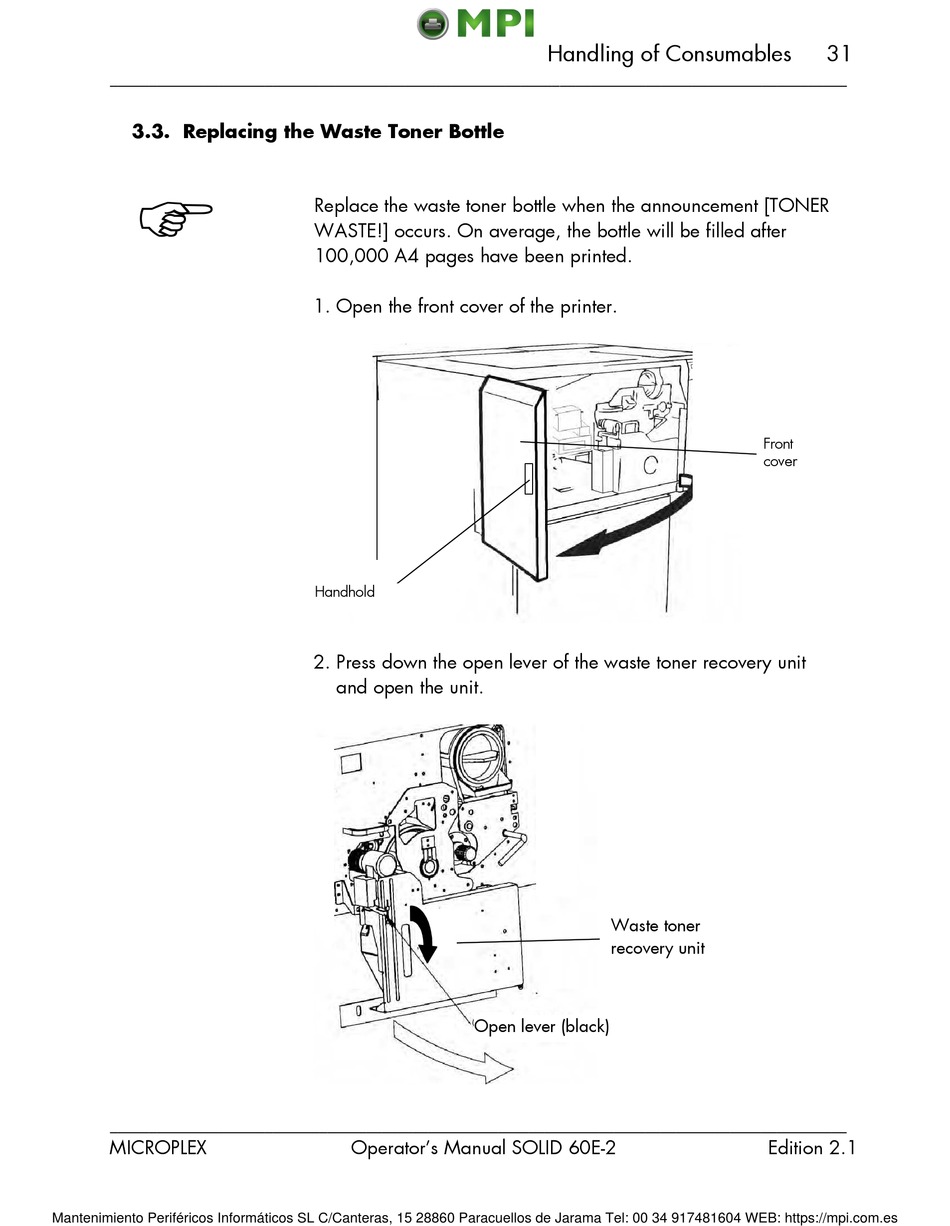

3.3. Replacing the Waste Toner Bottle
_______________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
Replace the waste toner bottle when the announcement [TONER
WASTE!] occurs. On average, the bottle will be filled after
100,000 A4 pages have been printed.
1. Open the front cover of the printer.
Handhold
2. Press down the open lever of the waste toner recovery unit
and open the unit.
Open lever (black)
Operator's Manual SOLID 60E-2
Handling of Consumables
Waste toner
recovery unit
31
Front
cover
Edition 2.1
