124
Operator Maintenance
_______________________________________________________________________________________________
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es

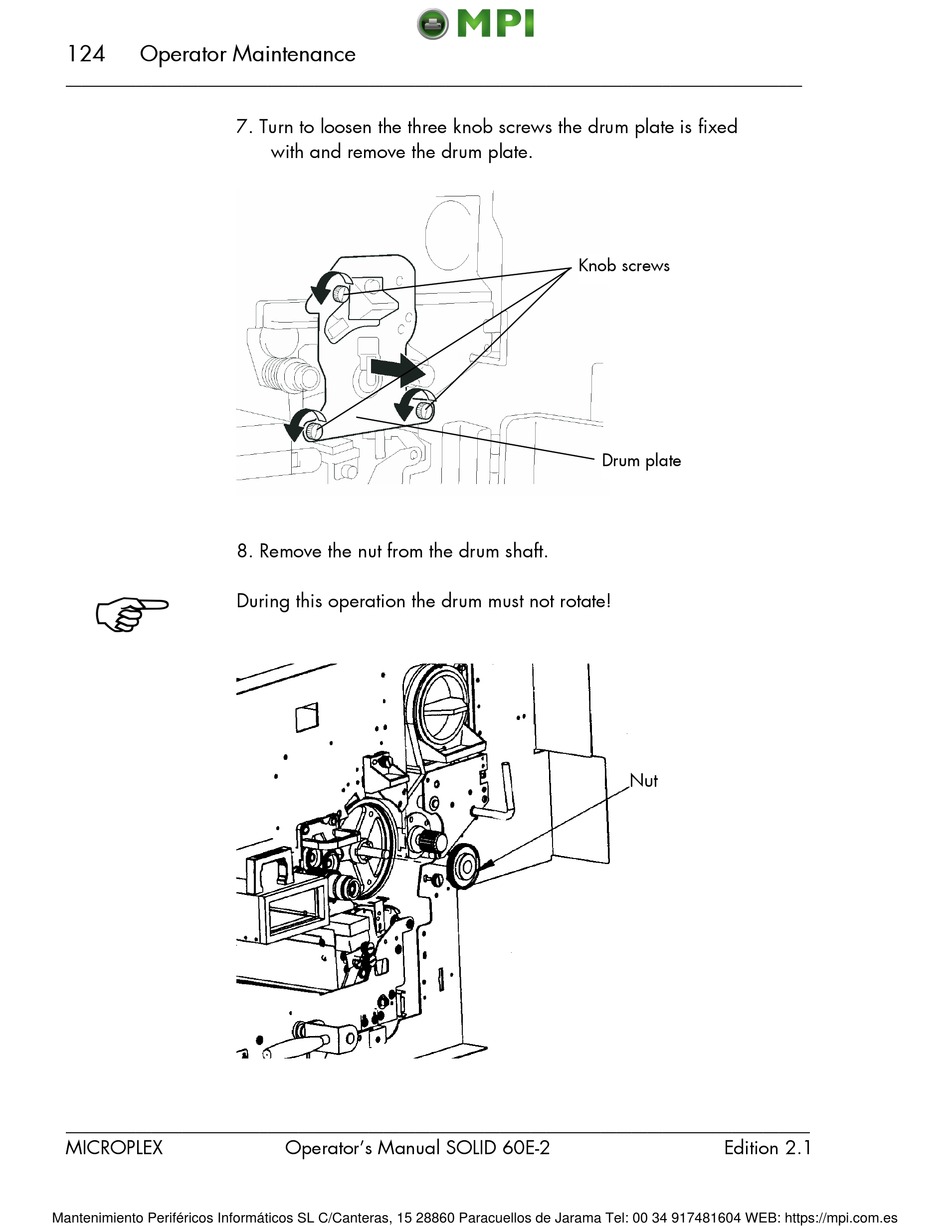

7. Turn to loosen the three knob screws the drum plate is fixed
with and remove the drum plate.
8. Remove the nut from the drum shaft.
During this operation the drum must not rotate!
Operator's Manual SOLID 60E-2
Knob screws
Drum plate
Nut
Edition 2.1
