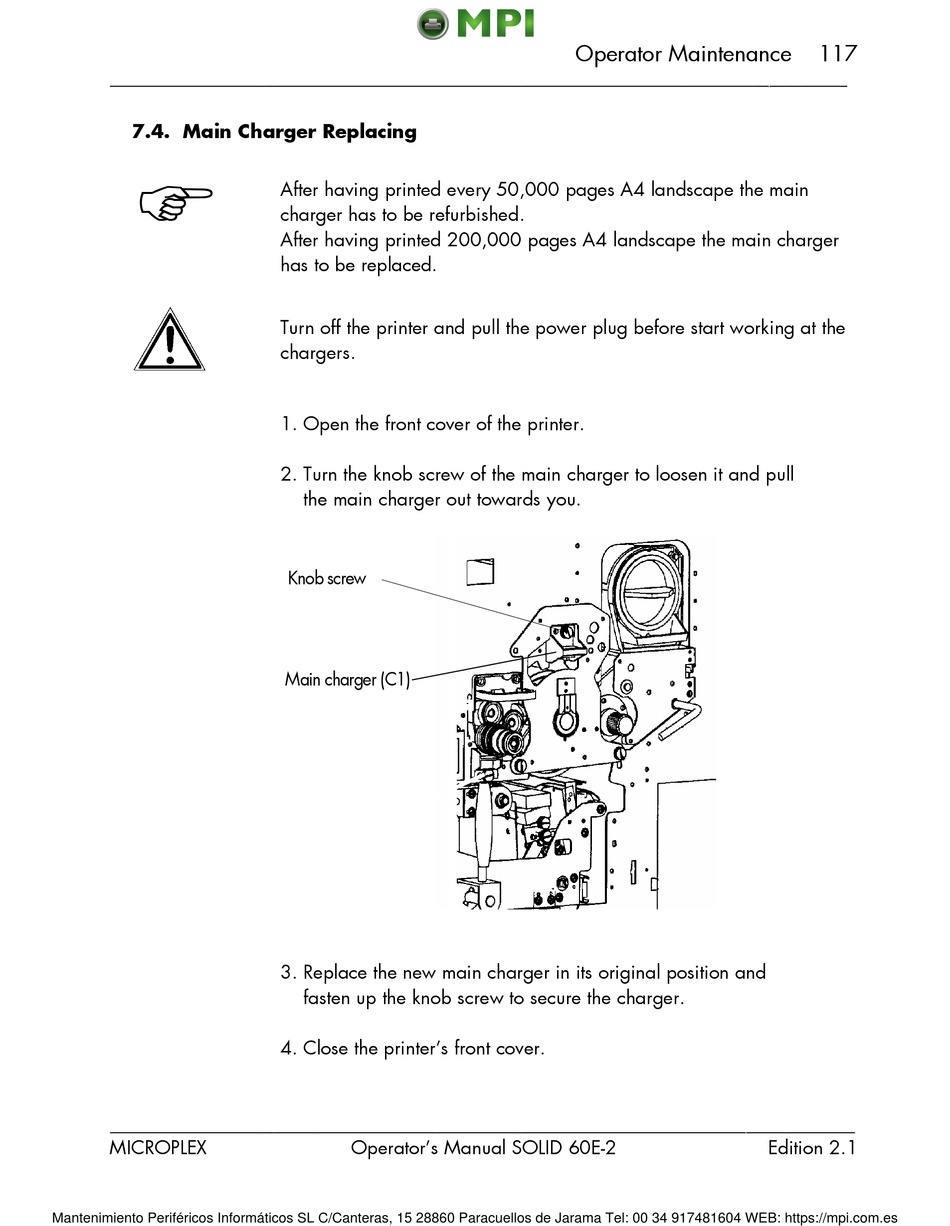

7.4. Main Charger Replacing

________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
After having printed every 50,000 pages A4 landscape the main
charger has to be refurbished.
After having printed 200,000 pages A4 landscape the main charger
has to be replaced.
Turn off the printer and pull the power plug before start working at the
chargers.
1. Open the front cover of the printer.
2. Turn the knob screw of the main charger to loosen it and pull
the main charger out towards you.
Knob screw
Main charger (C1)
3. Replace the new main charger in its original position and
fasten up the knob screw to secure the charger.
4. Close the printer's front cover.
Operator's Manual SOLID 60E-2
Operator Maintenance
117
Edition 2.1
