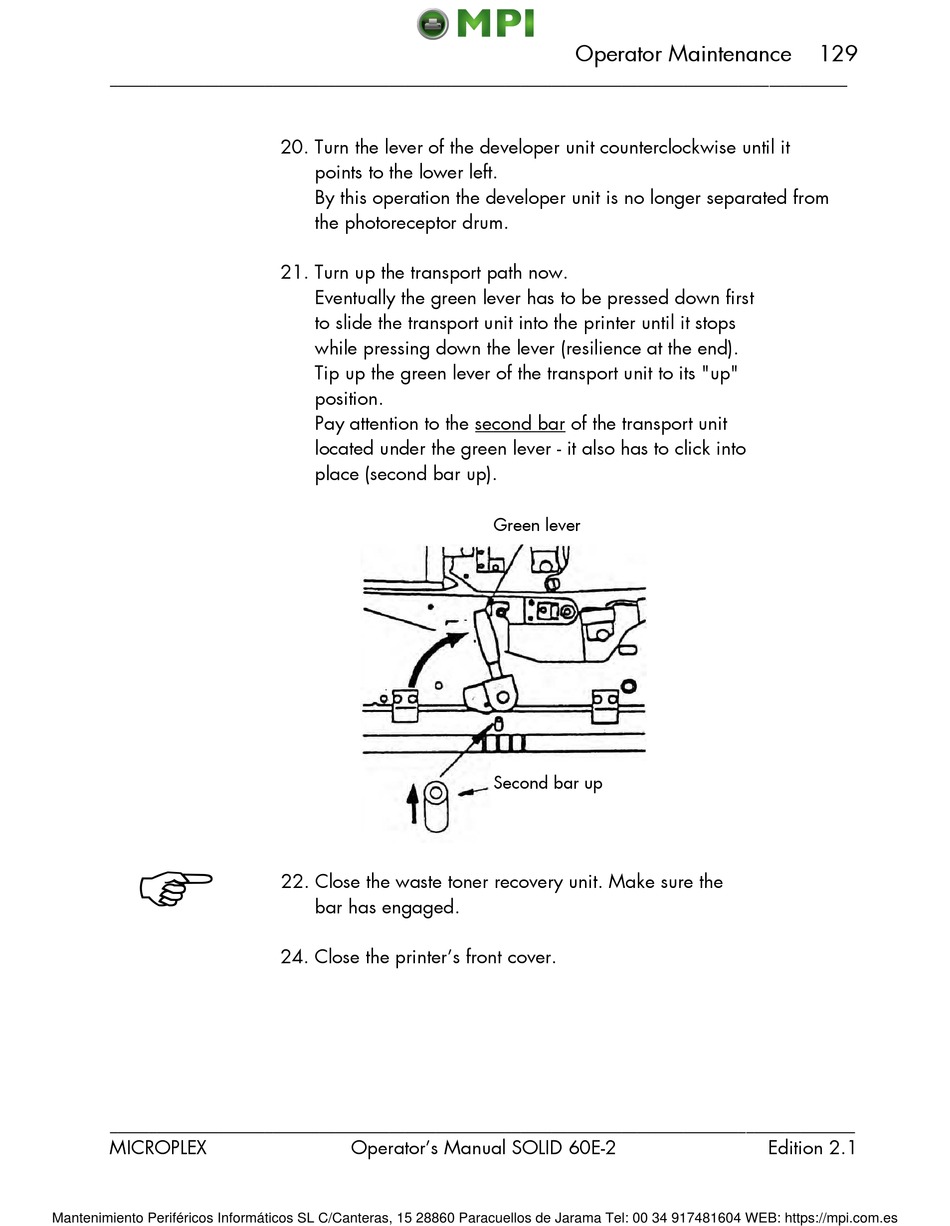

20. Turn the lever of the developer unit counterclockwise until it
points to the lower left.
By this operation the developer unit is no longer separated from
the photoreceptor drum.
21. Turn up the transport path now.
Eventually the green lever has to be pressed down first
to slide the transport unit into the printer until it stops
while pressing down the lever (resilience at the end).
Tip up the green lever of the transport unit to its "up"
position.
Pay attention to the second bar of the transport unit
located under the green lever - it also has to click into
place (second bar up).
22. Close the waste toner recovery unit. Make sure the
bar has engaged.
24. Close the printer's front cover.
Operator's Manual SOLID 60E-2
Operator Maintenance
Green lever
Second bar up
