64
Panel Functions
_______________________________________________________________________________________________

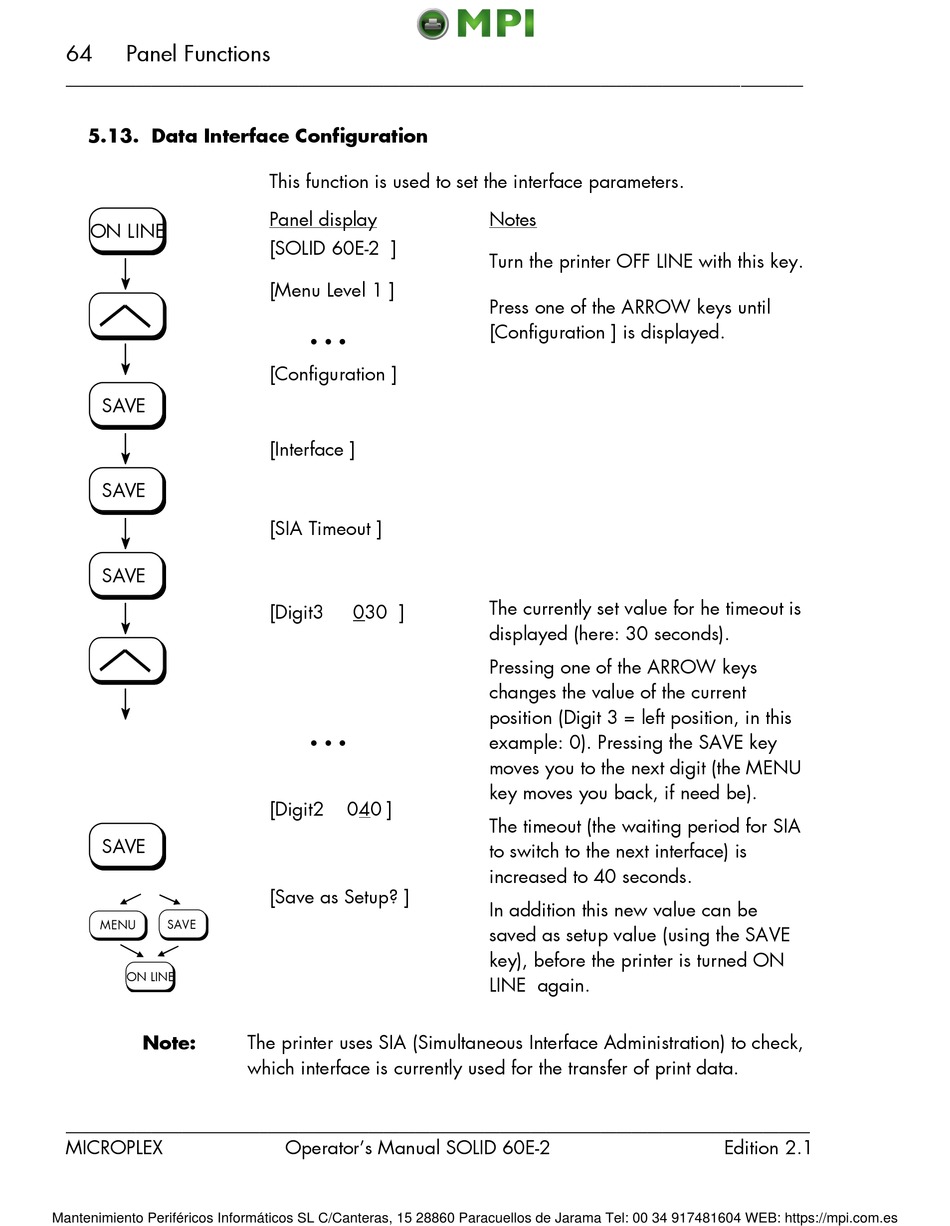

5.13. Data Interface Configuration
ON LINE
SAVE
SAVE
SAVE
SAVE
MENU
SAVE
ON LINE
Note:
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
This function is used to set the interface parameters.
Panel display
[SOLID 60E-2 ]
[Menu Level 1 ]
[Configuration ]
[Interface ]
[SIA Timeout ]
[Digit3
030 ]
[Digit2
040 ]
[Save as Setup? ]
The printer uses SIA (Simultaneous Interface Administration) to check,
which interface is currently used for the transfer of print data.
Operator's Manual SOLID 60E-2
Notes
Turn the printer OFF LINE with this key.
Press one of the ARROW keys until
[Configuration ] is displayed.
The currently set value for he timeout is
displayed (here: 30 seconds).
Pressing one of the ARROW keys
changes the value of the current
position (Digit 3 = left position, in this
example: 0). Pressing the SAVE key
moves you to the next digit (the MENU
key moves you back, if need be).
The timeout (the waiting period for SIA
to switch to the next interface) is
increased to 40 seconds.
In addition this new value can be
saved as setup value (using the SAVE
key), before the printer is turned ON
LINE again.
Edition 2.1
